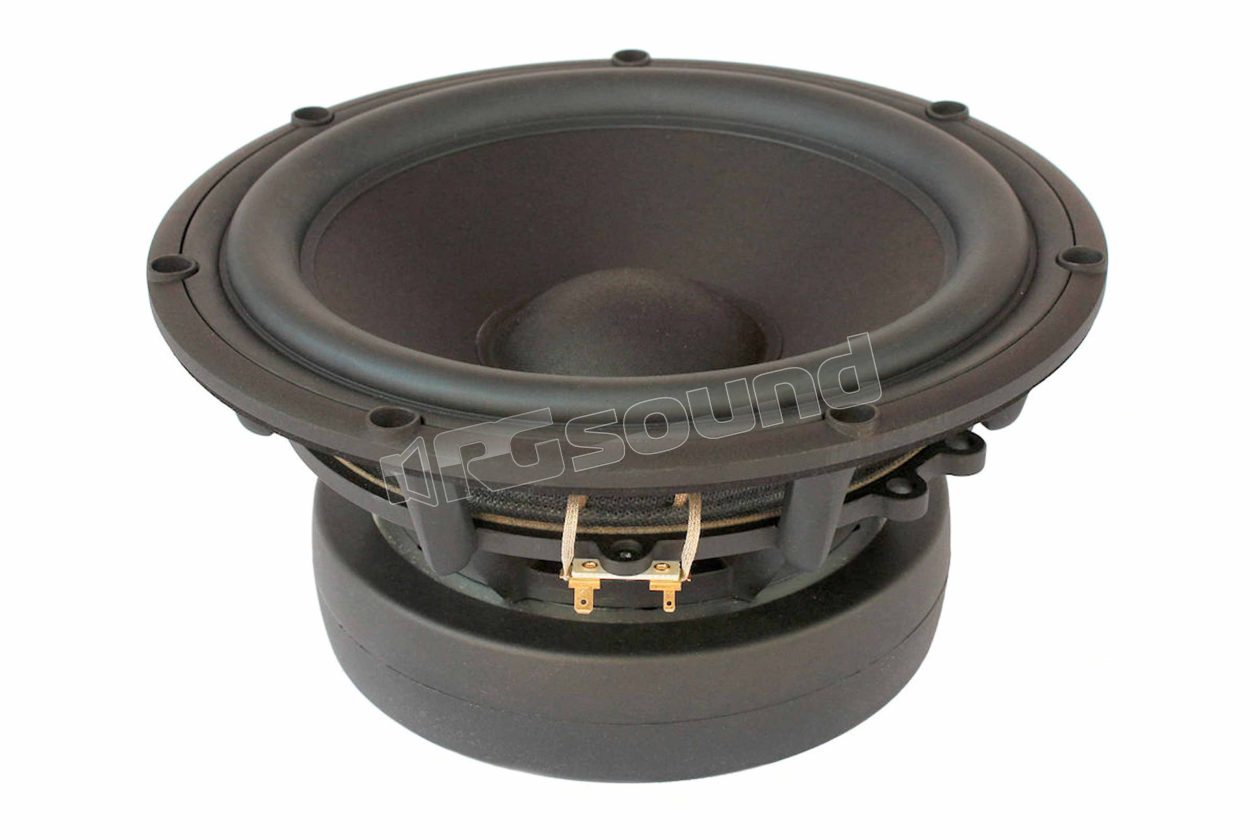

28W/8878T01 28 cm woofer, 8 Ohm impedance

Scan Speak
Your price:
€ 1326,00
Price per pair (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
Other sizes
MAX Power
500 Watt
RMS Power
200 Watt
Sensitivity
88.5 dB
Impedance
8 Ohm
Weight
7,5 Kg
Installation Depth
77,4 mm
Voice Coil Diameter
75 mm

Scan Speak 28W/8878T01 woofer 28 cm REVELATOR series, 8 Ohm impedance, paper cone and ferrite magnet

- Paper sandwich cone
- Patented symmetrical drive motor
- Spider with balanced tinsel mesh
- Long linear excursion
- 3" voice coil, in titanium, reinforced with paper
- Rigid and resistant die-cast aluminum frame

Scan Speak's Revelator series woofers and subwoofers feature an extremely rigid paper or aluminum cone that allow operation as a rigid piston across a wide frequency range. In combination with low-loss suspensions and the patented magnetic group with Symmetrical Drive technology (SD-1), they achieve extremely low distortion, regular frequency response and perfect transient reproduction.

Scan Speak 28W/8878T01 technical specifications

Nominal impedance 8 Ω

Re 7.4 Ω

Sensitivity 1W/1m 88.5 dB

fs 22 Hz

Voice coil diameter 215 mm

Nominal power 200 W

Maximum power 500 W

Bxl 14.9 Tm

Mms 84 gr

Cms 0.62 mm/N

Sd 363 cm²

Levc 0.55 mH

Xmax 8 mm

Vas 116 I

Qts 0.31

Qms 5.81

Qes 0.33

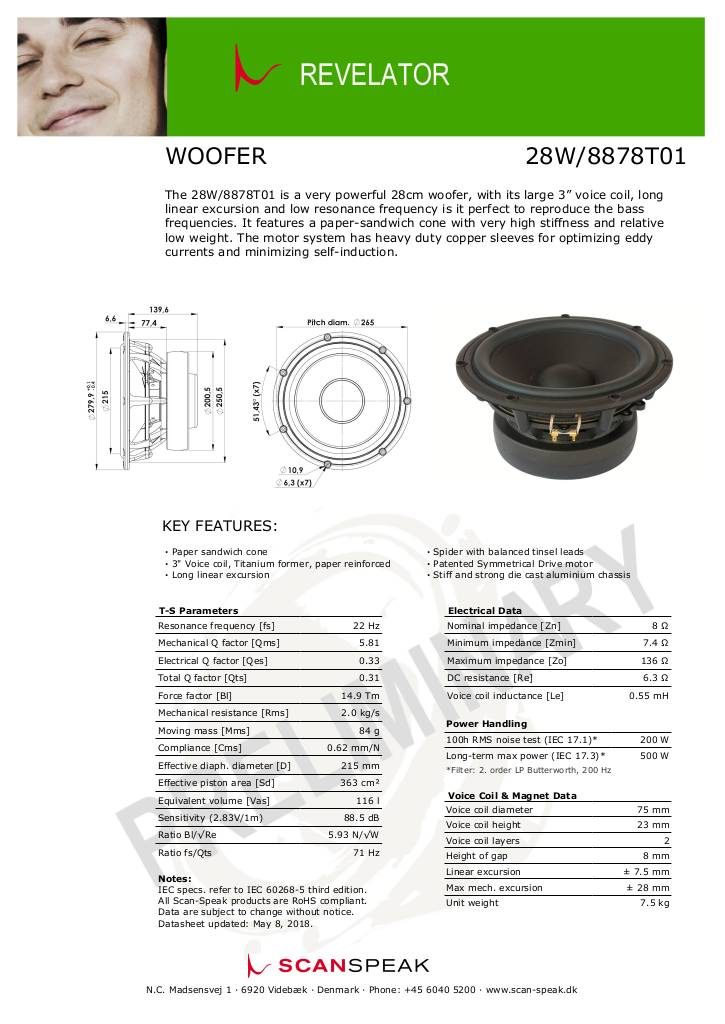

Scheda tecnica

n-20200313143925-document.pdf
