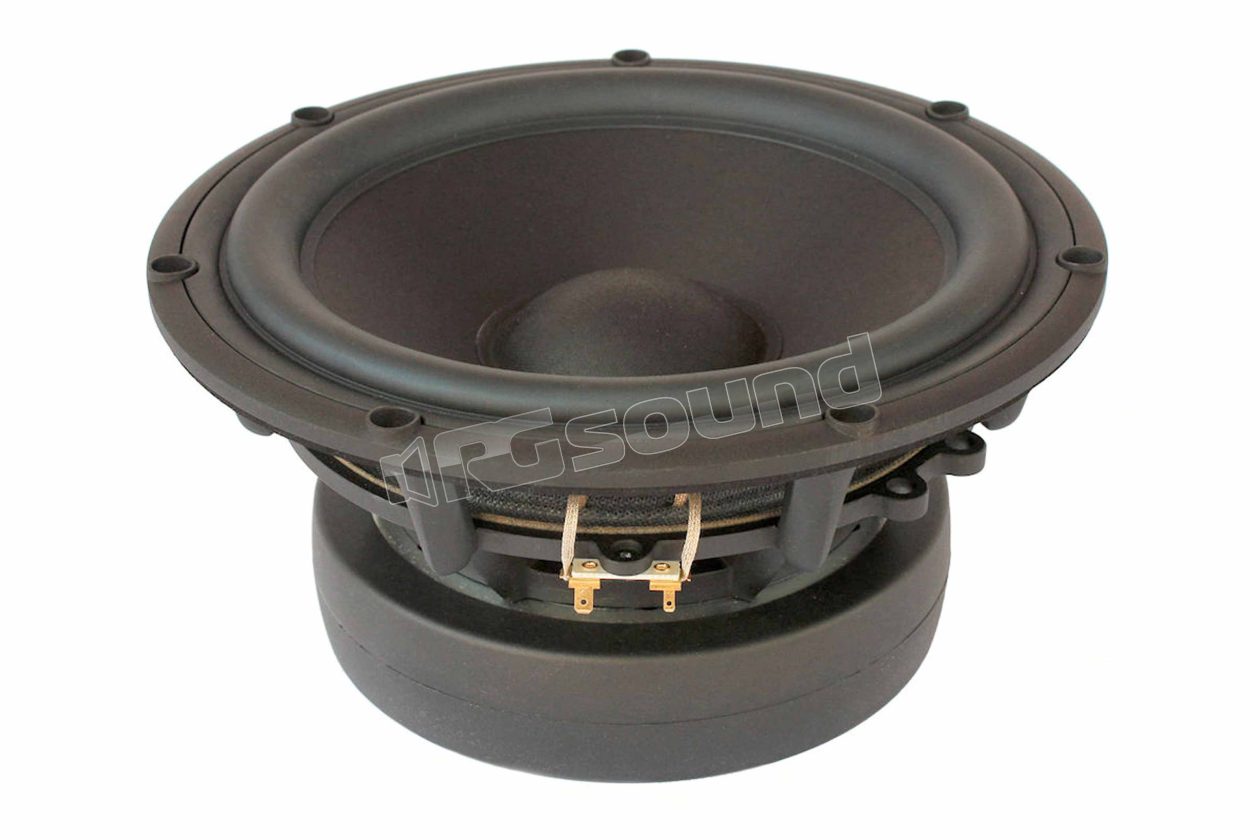

28W/4878T01 28 cm woofer, 4 Ohm impedance

Scan Speak
Your price:
€ 1326,00
Price per pair (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
270 mm
MAX Power
500 Watt
RMS Power
200 Watt
Sensitivity
91 dB
Impedance
4 Ohm
Weight
7,5 Kg
Installation Depth
77,4 mm
Woofer Material
Cono sandwich

Scan Speak 28W/8878T01 woofer 28 cm REVELATOR series, 4 Ohm impedance, paper cone and ferrite magnet

- Paper sandwich cone
- Patented symmetrical drive motor
- Spider with balanced tinsel mesh
- Long linear excursion
- 3" voice coil, in titanium, reinforced with paper
- Rigid and resistant die-cast aluminum frame

The woofers and subwoofers of Scan Speak's Revelator series have an extremely rigid paper or aluminum cone that allow operation as a rigid piston over a wide frequency range. In combination with low-loss suspensions and the patented magnetic group with Symmetrical Drive (SD-1) technology, they achieve extremely low distortion, regular frequency response and perfect transient reproduction.

Scan Speak 28W/8878T01 technical specifications

Nominal impedance 4 Ω

Sensitivity 1W/1m 91 dB

Fs 23 Hz

Rated power 200 W

Re 3.1 Ω

Xmax± 7.5 mm

Bxl 12 Tm

Qms 6.21

Qes 0.27

Qts 0.31

Mms 86 gr.

Cms 0.56 mm/N

Sd 363 cm²

Vas 104 l

Le 0.5 mH

Moving coil diameter 75 mm

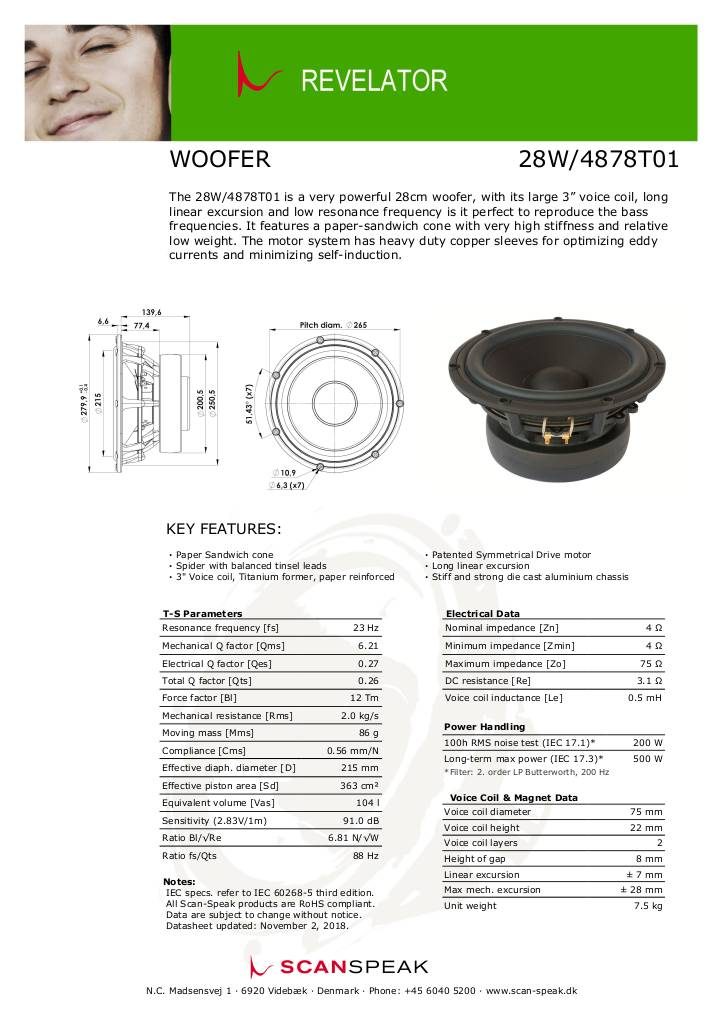

Scheda tecnica

n-20200313144245-28w-4878t01.pdf
