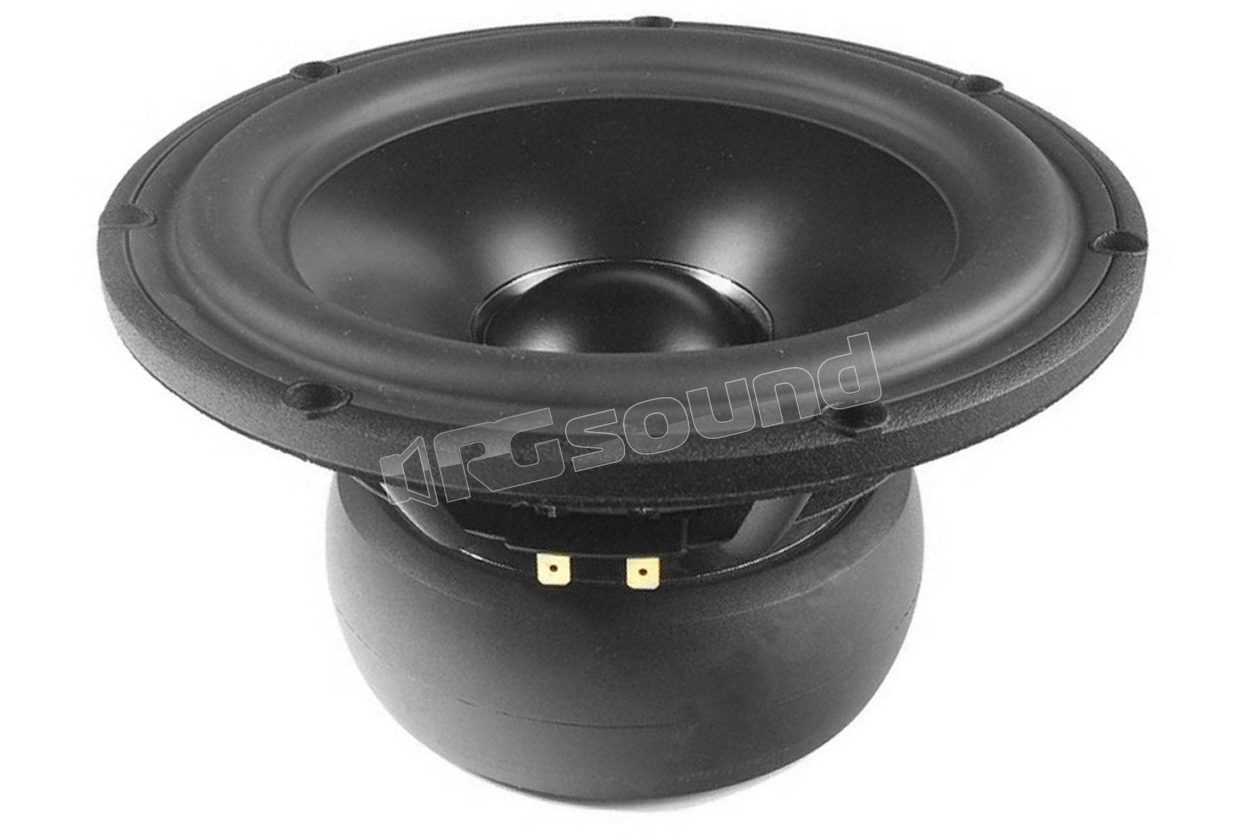

22W/8857T00 8'' woofer with rigid anodized aluminum cone

Scan Speak
Your price:
€ 648,00
Price per pair (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
220 mm
RMS Power
170 Watt
Sensitivity
86 dB
Impedance
8 Ohm
Weight
3,6 Kg
Installation Depth
111 mm
Voice Coil Diameter
50 mm

Scan Speak 22W/8857T00 Woofer (8") with rigid anodized aluminum cone in black finish, 8 Ohm impedance

Woofer Revelator Series with rigid aluminum cone that works effectively over a wide frequency range. In combination with Scan-Speak's low-loss linear suspension and patented symmetric drive (SD-1), the result is minimal distortion and a regular, well-behaved frequency response, as well as perfect transient reproduction.

22W/8857T00 Features

  • 22 cm woofer
  • 8 ohm, aluminum cone, ferrite magnet
  • Patented symmetric transmission motor design
  • Low-loss linear suspension
  • Die-cast aluminum frame with ventilation under the spider
  • Rigid black anodized aluminum cone
  • Surrounded by low-damping SBR rubber
  • Ferrite magnet system with rubber coating

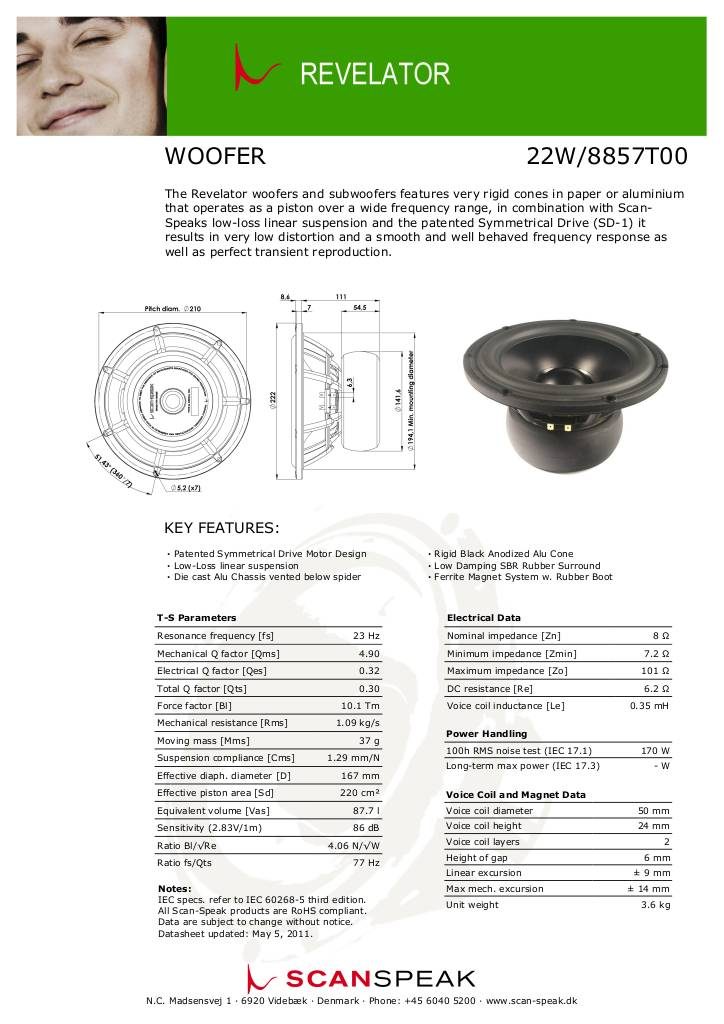

Scheda tecnica

n-20170725125128-22w-8857t00.pdf

Scan Speak 22W/8857T00 Technical Specifications

  • Size (inches) 8
  • Fs (Hz) 23
  • Re (ohm) 6.2
  • RMS Power 170 W
  • Impedance 8 Ohm
  • Sensitivity (dB) 86
  • Qt 0.30
  • VAS (ltr) 87.7
  • Xmax ± (mm) 9
€ 648,00 Price incl. VAT
