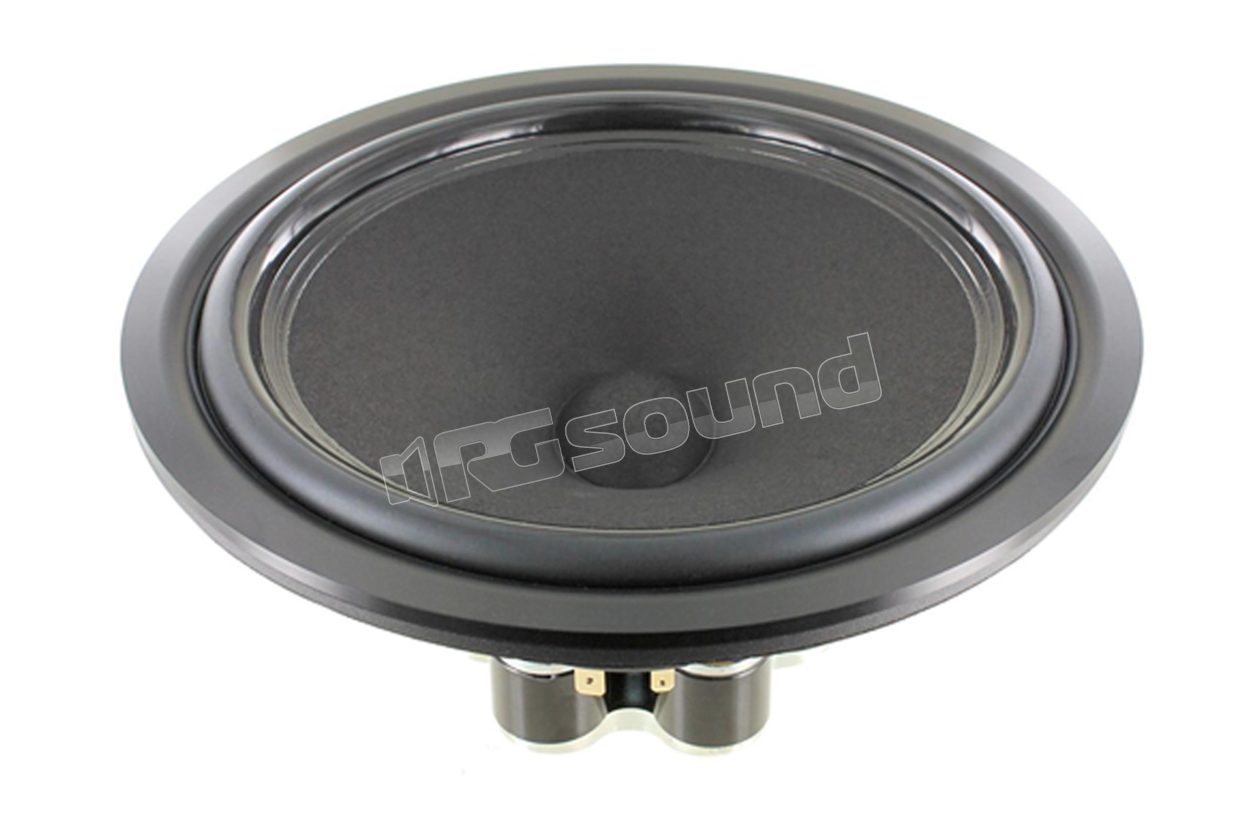

21WE/4542T00 21cm midwoofer, 50W RMS power at 4 Ohm

Scan Speak
Your price:
€ 2109,00
Price per pair (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
200 mm
MAX Power
100 Watt
RMS Power
50 Watt
Sensitivity
93.5 dB
Impedance
4 Ohm
Weight
1,8 Kg
Installation Depth
97 mm
Woofer Material
Cellulosa trattata

Scan Speak 21WE/4542T00 midwoofer 21 cm (8") impedance 4 Ohm

Ellipticor Series, one of its main features is the elliptical coil and a magnetic gap. In combination with the powerful SD AirCirc magnet system, Ellipticor transducers have high sensitivity, very low distortion and an extremely fast response to transients. A TRUE TO LIVE sound that makes Ellipticors one of the best speakers on the market.

Scan Speak 21WE/4542T00 technical specifications

Nominal impedance 4 Ω

Re 4.3 Ω

Sensitivity 1W/1m 93.5 dB

fs 136 Hz

Voice coil diameter 35-45 mm

Nominal power 50 W

Maximum power 100 W

Bxl 8.2 Tm

Mms 25 gr

Cms 0.70 mm/N

Sd 233 cm²

Levc 0.1 mH

Xmax± 7.2 mm

Vas 54 l

Qts 0.28

Qms 5.43

Qes 0.30

Cone material paper

Magnet type neodymium

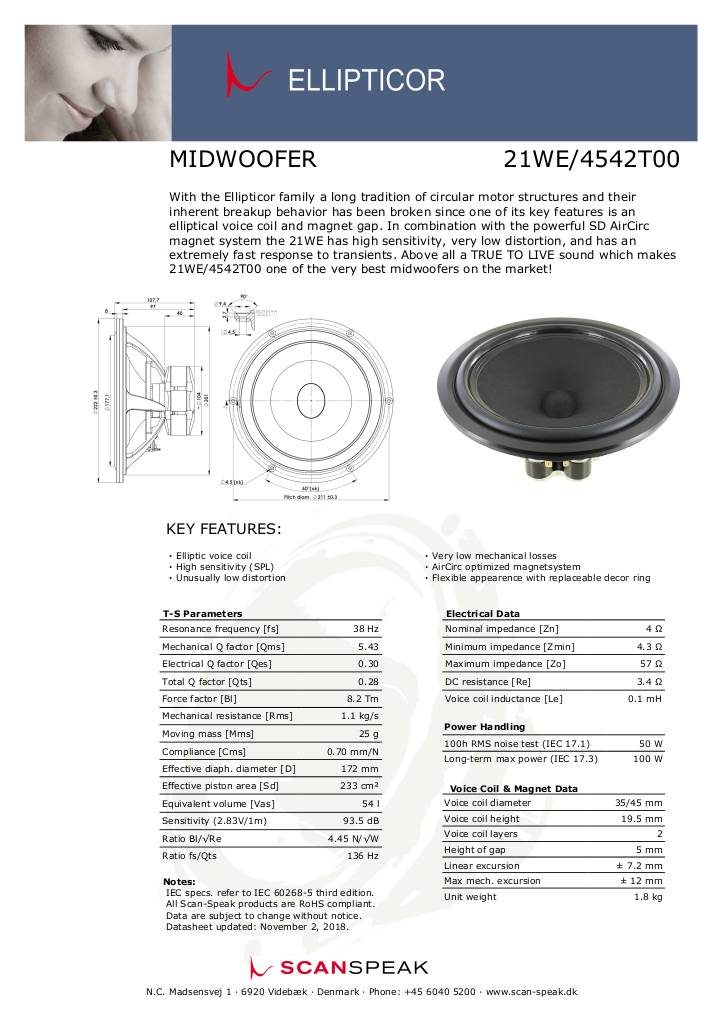

Scheda tecnica

n-20200313102155-4542t00.pdf
