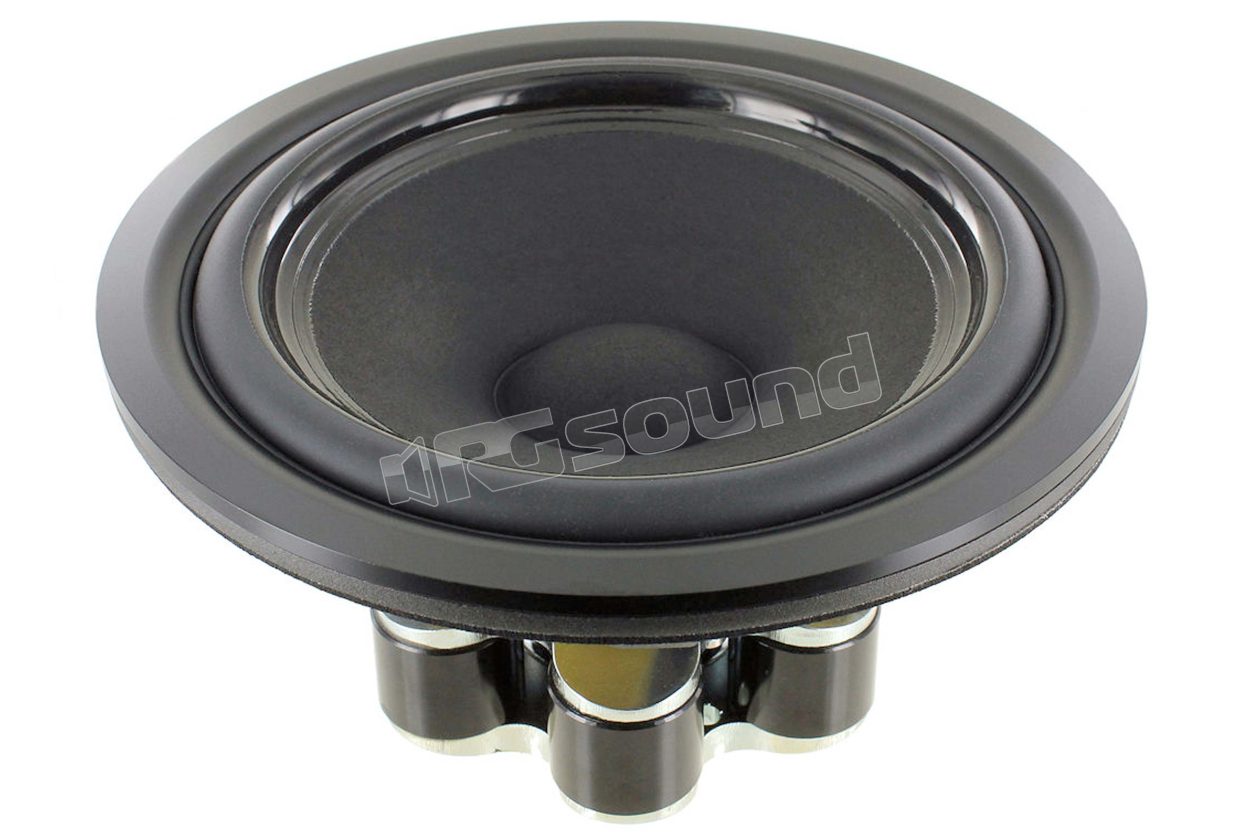

18WE/8542T00 165mm (6.5'') midwoofer, 50W RMS power

Scan Speak
Your price:
€ 1935,00
Price per pair (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
165 mm
MAX Power
100 Watt
RMS Power
50 Watt
Sensitivity
89 dB
Impedance
8 Ohm
Weight
1,7 Kg
Installation Depth
87 mm
Voice Coil Diameter
35/45 mm

Scan Speak 18WE/8542T00 midwoofer 165mm (6.5") impedance 8 Ohm

Ellipticor Series, one of its main characteristics is the elliptical coil and a magnetic gap. In combination with the powerful SD AirCirc magnet system, Ellipticor transducers have high sensitivity, extremely low distortion and extremely rapid response to transients. TRUE TO LIVE sound that makes Ellipticors one of the best speakers on the market.

Scan Speak 18WE/8542T00 technical specifications

Nominal impedance 8 Ω

Re 6.3 Ω

Sensitivity 1W/1m 89 dB

fs 50 Hz

Voice coil diameter 35-45 mm

Nominal power 50 W

Maximum power 100 W

Bxl 9.7 Tm

Mms 16 gr

Cms 0.64 mm/N

Sd 133 cm²

Levc 0.14 mH

Xmax± 7.7 mm

Vas 16 I

Qts 0.32

Qms 5.01

Qes 0.34

Cone material paper

Magnet type neodymium

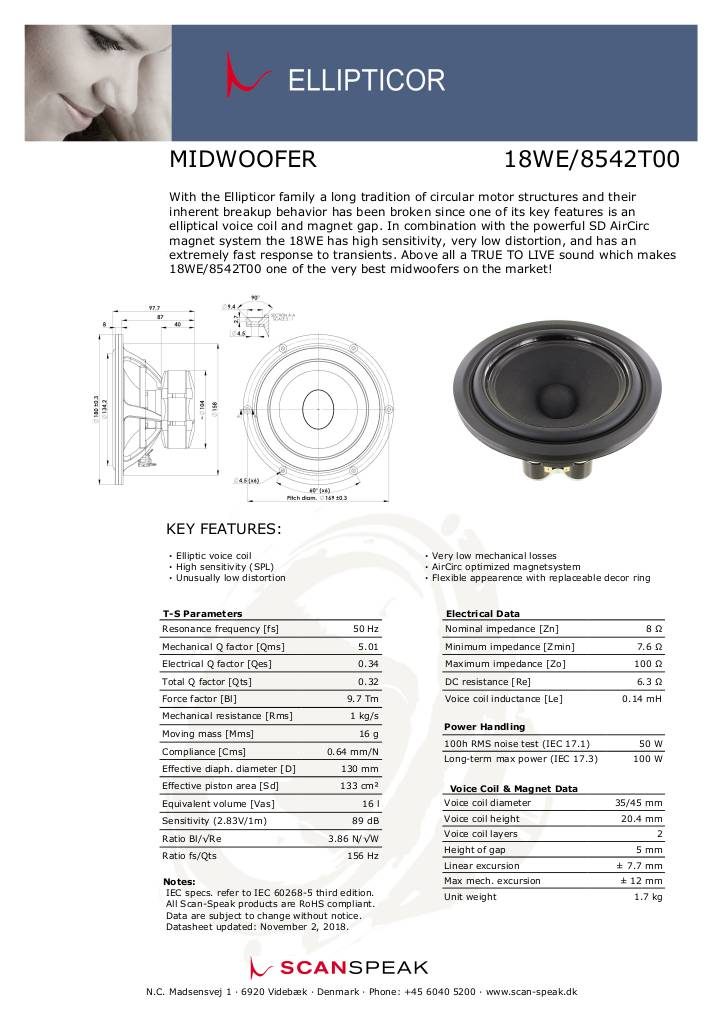

Scheda tecnica

n-20200313103816-18we-8542t00.pdf
