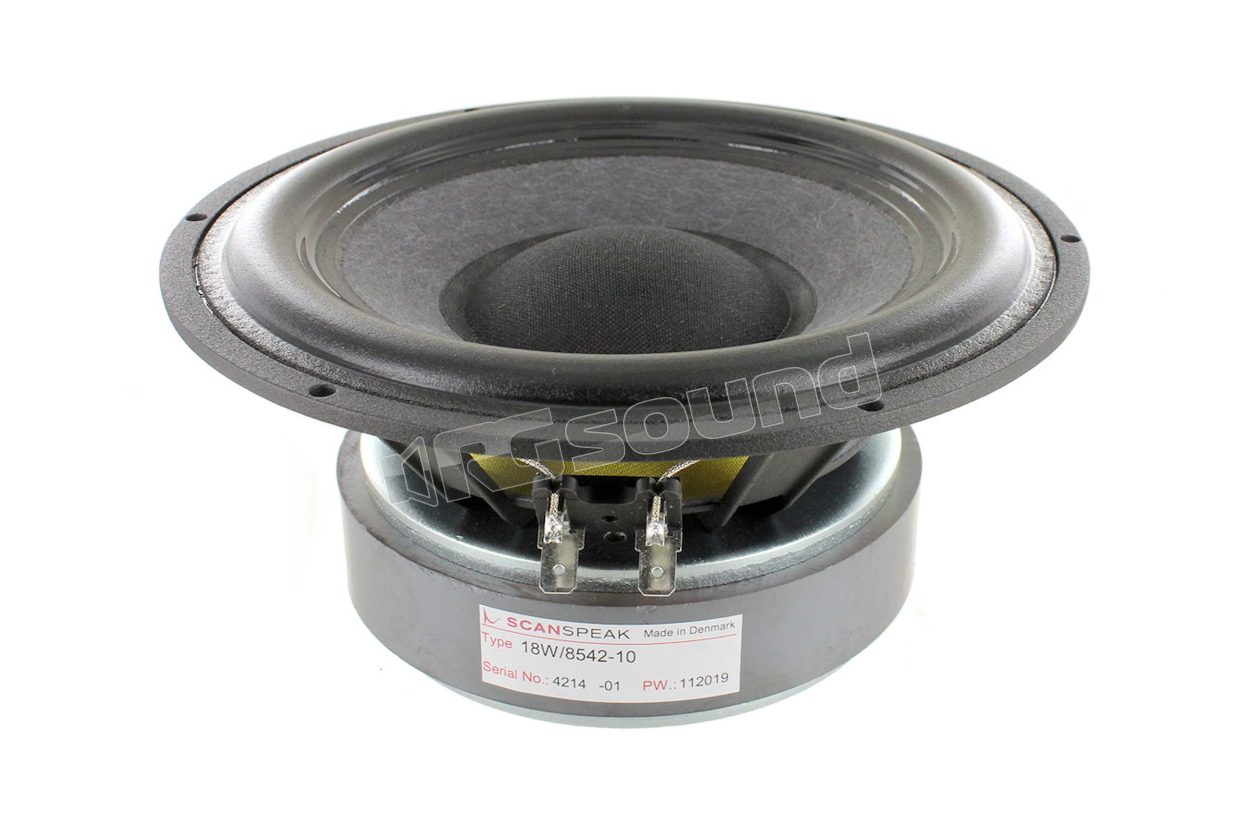

18W/8542-10 165mm midwoofer 70W RMS

Scan Speak
Your price:
€ 393,00
Price per pair (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
165 mm
MAX Power
130 Watt
RMS Power
70 Watt
Sensitivity
88 dB
Impedance
8 Ohm
Weight
2,2 Kg
Installation Depth
74,5 mm
Voice Coil Diameter
42 mm

Scan Speak 18W/8542-10 midwoofer 165mm with aluminum basket, improved paper and nylon fiber cone. The quality of the magnetic assembly designed following the patented Symmetrical Drive (SD-1) system continues to be one of the keys to this speaker's excellent performance.

- Patented symmetrical drive motor design
- 42 mm voice coil
- Black foam edges with low damping
- Air-dried paper / nylon fiber cone
- Low-loss linear suspension
- Aluminum die-cast. frame

The heritage, quality and success of Scan-Speak designs for decades live on in the Classic family, with patented and proprietary technologies such as; Symmetrical drive, low-loss linear suspension, air-dried paper / carbon fiber cones and coated textile diaphragms.

Scan Speak 18W/8542-10 technical features

Nominal impedance 8 Ω

Re 6.6 Ω

Sensitivity 1W/1m 88 dB

fs 43 Hz

Voice coil diameter 42 mm

Nominal power 70 W

Maximum power 130 W

Bxl 6.9 Tm

Mms 13.6 gr

Cms 1.0 mm/N

Sd 135 cm²

Levc 0.2 mH

Xmax ± 6.5 mm

Vas 26 I

Qts 0.35

Qms 1.7

Qes 0.44

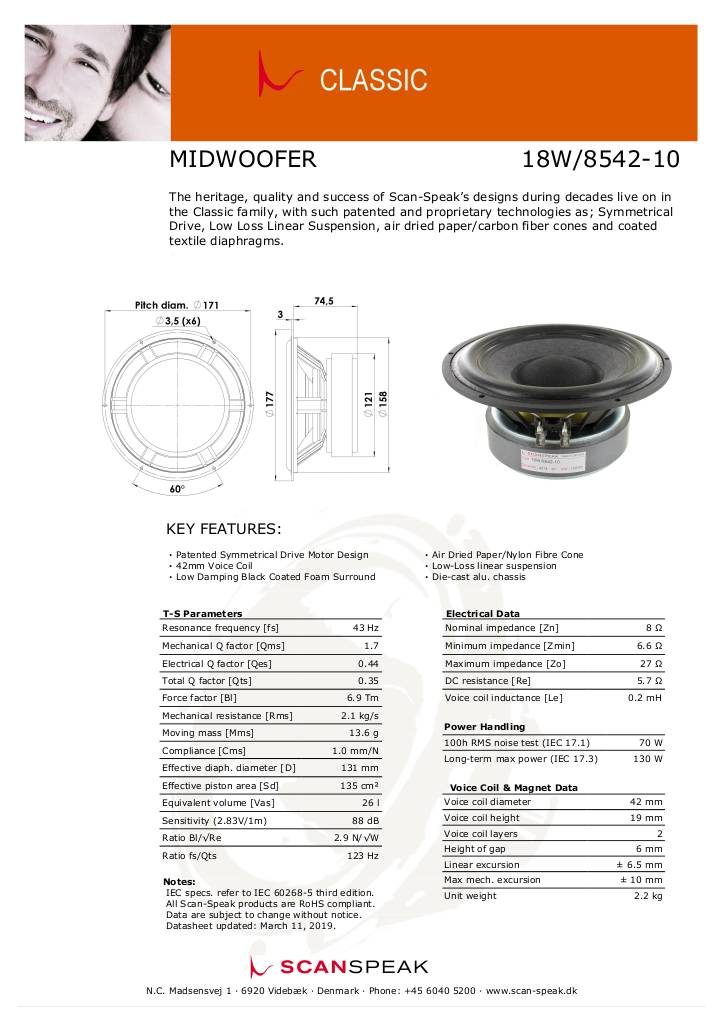

Scheda tecnica

n-20200313121800-18w-8542-10.pdf
