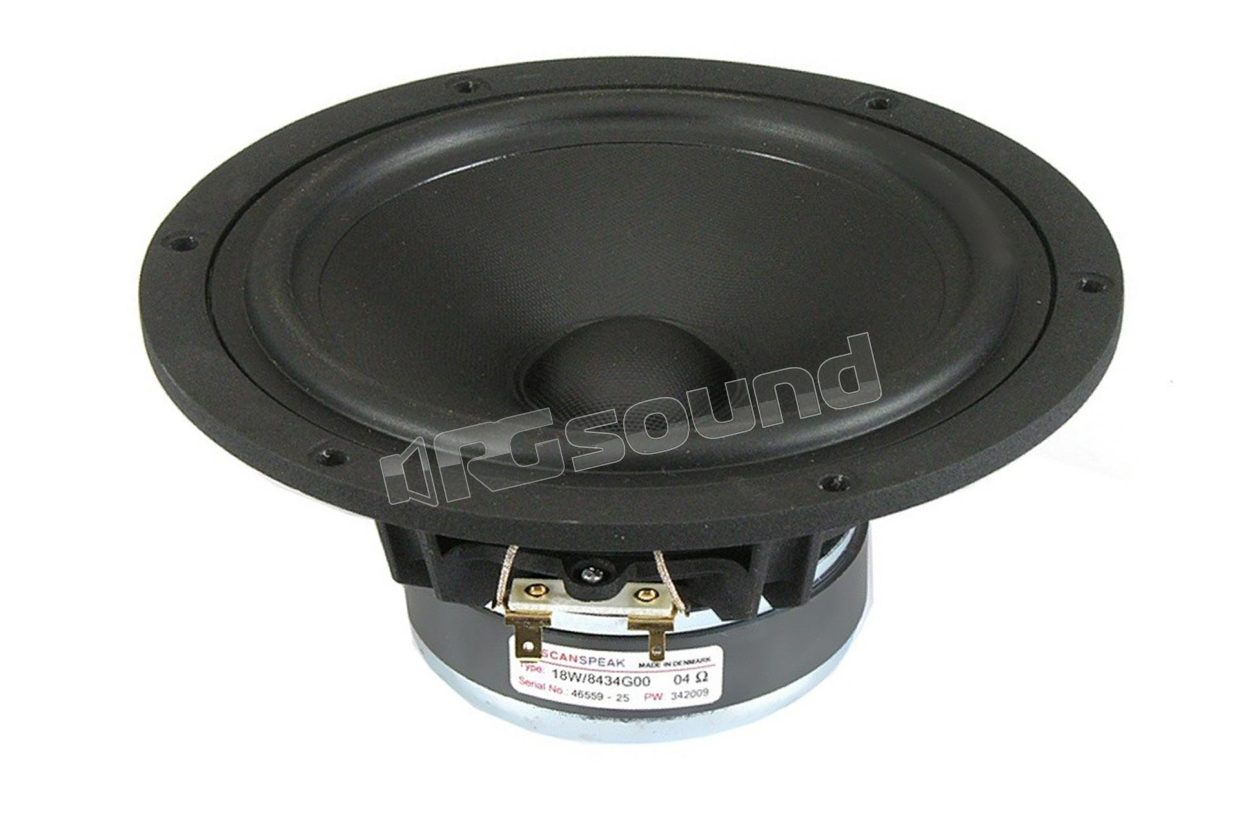

18W/8434G00 165mm midwoofer Discovey series 8 Ohm

Scan Speak
Your price:
€ 86,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
165 mm
MAX Power
170 Watt
RMS Power
55 Watt
Sensitivity
89 dB
Impedance
8 Ohm
Weight
1,3 Kg
Installation Depth
73 mm
Voice Coil Diameter
32 mm

Scan Speak 18W/8434G00 midwoofer 165 mm Discovey Series, 8 Ohm impedance

18W/8434G00 speaker from the Discovey series with 8 Ohm impedance: combines robust construction, with quality technologies and components, with rich and clean sound.

18W/8434G00 woofer features

- Speaker size 165 mm

- Nominal impedance 8 Ohm

- Nominal power 55 Watt

- Maximum power 170 Watt

- NRSC fiberglass cone

- Ferrite magnet with aluminum ring

- Low Damping SBR Rubber Surround

- Installation hole 144 mm

- Installation depth 73 mm

- High Output 89dB @ 2.83V

- Fs (Hz) 50

- Re (ohms) 5.6

- Sensitivity (dB) 88.7

- Qt 0.43

- VAS (ltr) 19.5

- Xmax ± (mm) 4.2

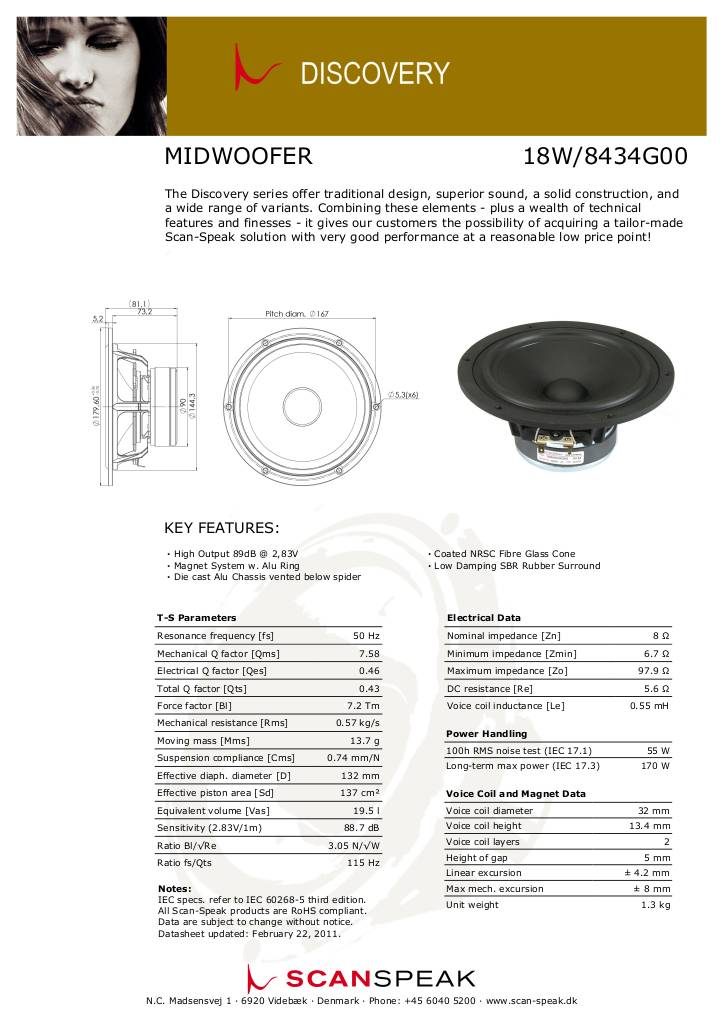

Scheda tecnica

n-20161229111101-18w-8434g00.pdf
€ 86,00 Price incl. VAT
