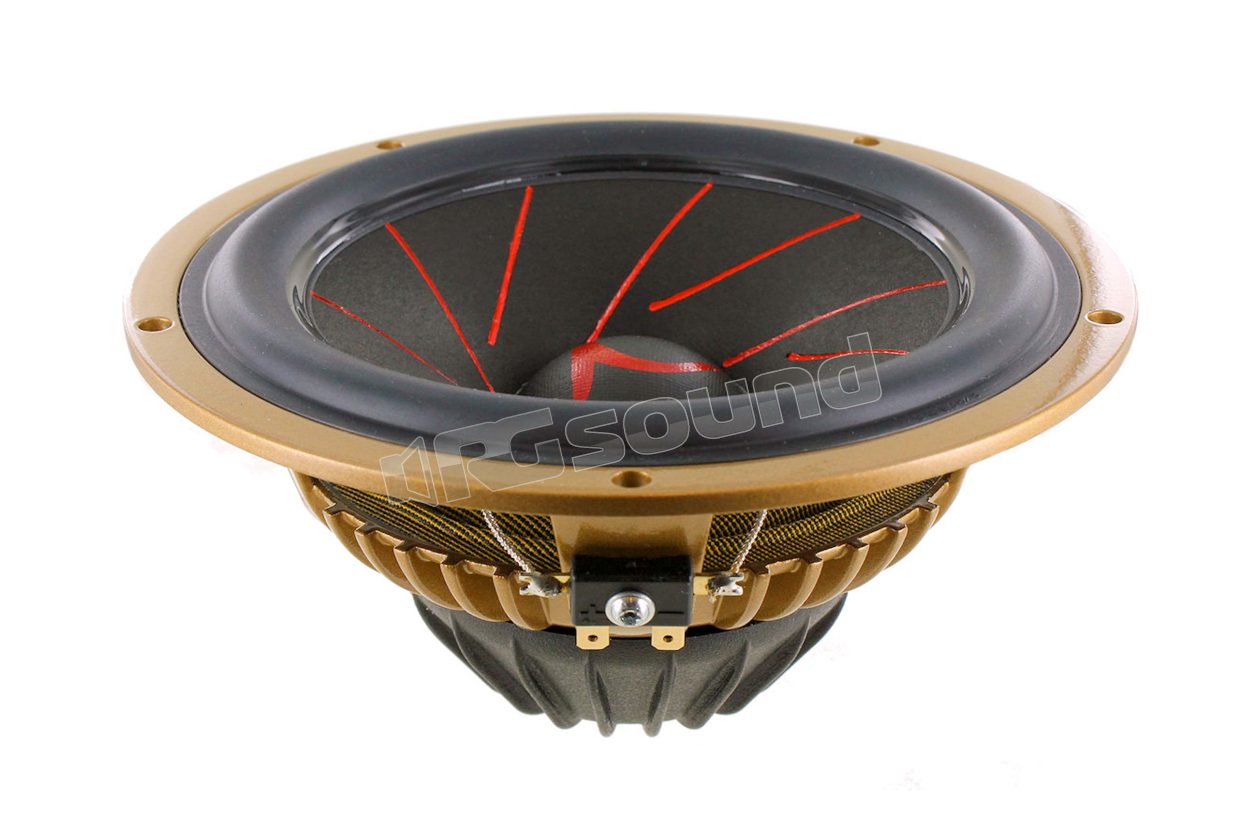

16W/4538G05 165mm high-end midwoofer

Scan Speak
Your price:
€ 954,00
Price per pair (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
165 mm
MAX Power
125 Watt
RMS Power
70 Watt
Sensitivity
90 dB
Impedance
4 Ohm
Weight
1 Kg
Installation Depth
74 mm
Woofer Material
Cellulosa trattata

Scan Speak 16W/4538G05 midwoofer 165mm high-end

Speakers available on order.
The "Gold Series" from Scan Speak derives from the line of speakers designed for home use. Optimized for automotive use, this series allows you to achieve in your car the listening experience that audiophiles find in their hi-end systems. Pair of 165mm high-end midwoofers in Neodymium, 4 Ohm impedance.
Technical characteristics Scan Speak 16W/4538G05
  • Cone material Paper
  • Suspension material SBR Rubber
  • Magnet type Neodymium
  • Nominal impedance 4 Ω
  • Re 3.1 Ω
  • Sensitivity 1W/1m 90 dB
  • fs 36 Hz
  • Voice coil diameter 38 mm
  • Nominal power 70 W
  • Maximum power 125 W
  • Bxl 5.5 Tm
  • Mms 16.9 gr
  • Cms 1.12 mm/N
  • Sd 123 cm^2
  • Levc 0.18 mH
  • Zo 35 Ω
  • Xmax± 6.6 mm
  • Vas 24 l
  • Qts 0.35
  • Qms 3.82
  • Qes 0.39

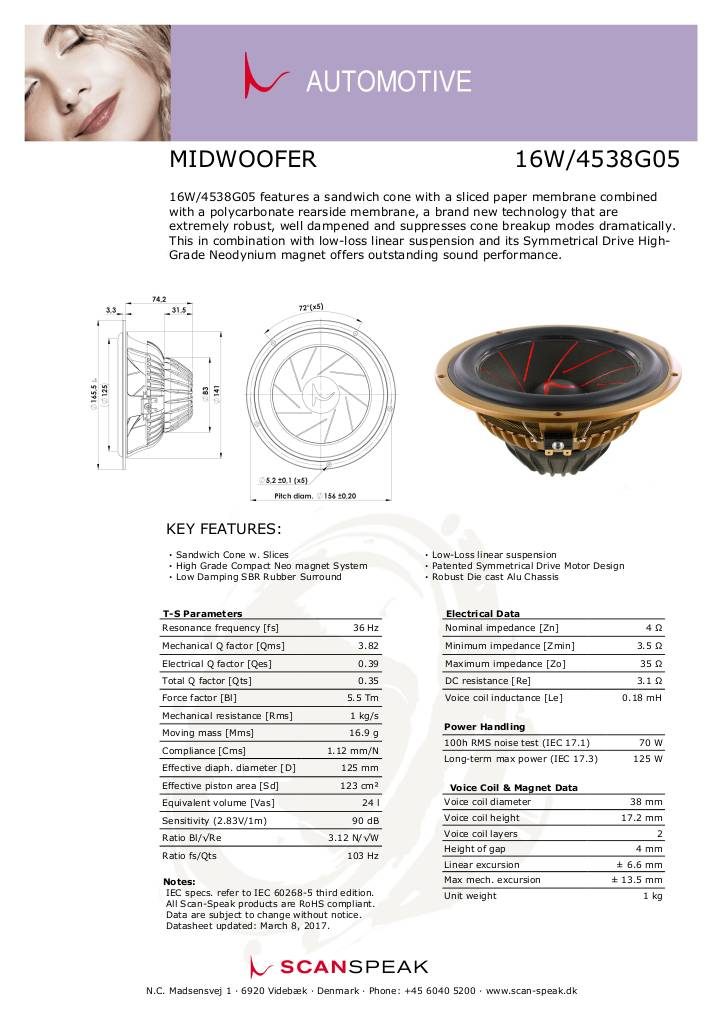

Scheda tecnica

n-20230504120927-scheda-tecnica-16w-4538g06.pdf
€ 954,00 Price incl. VAT
