15WRS400

Beyma
Your price:
€ 184,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
380 mm
MAX Power
800 Watt
RMS Power
400 Watt
Frequency Response
40 - 4000 Hertz
Sensitivity
98 dB
Impedance
8 Ohm
Weight
7,25 Kg
Installation Depth
163 mm
Voice Coil Diameter
77 mm

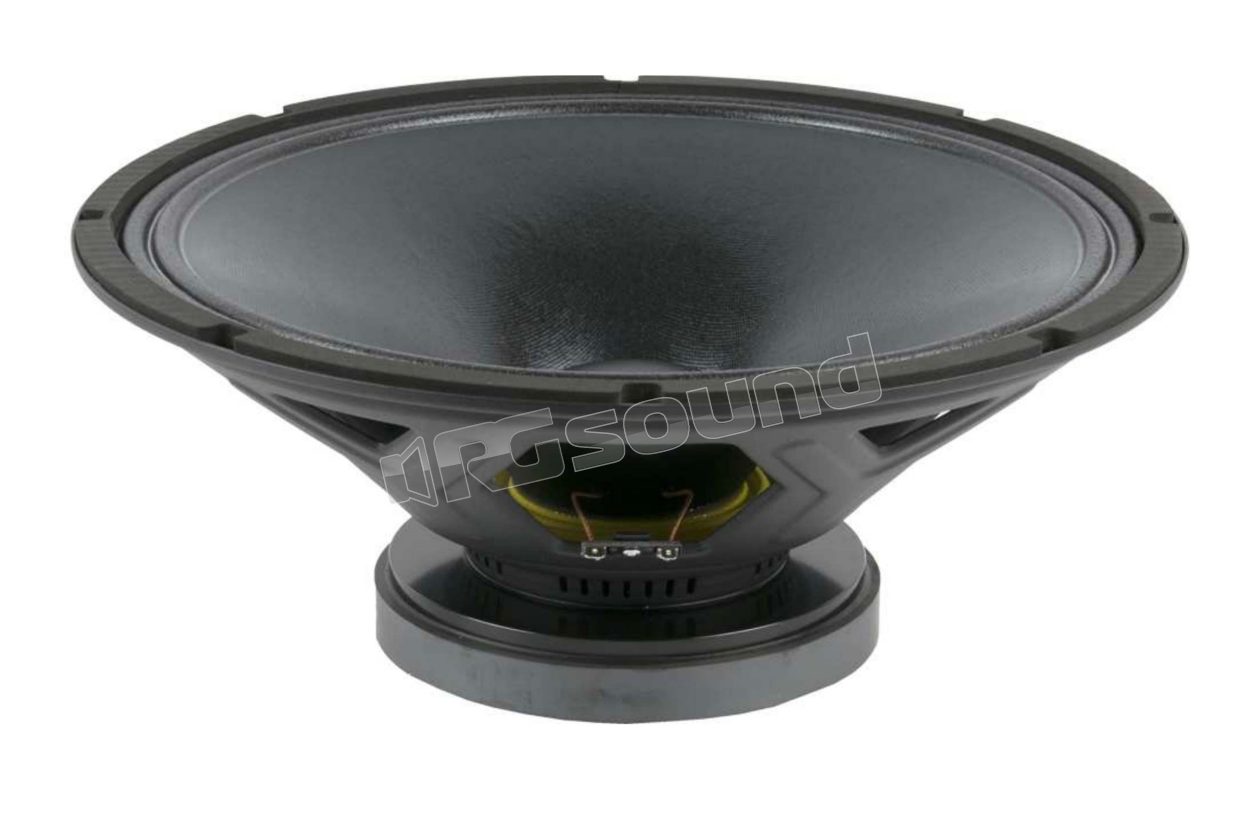

Beyma 15WRS400 woofer 38cm with 8 Ohm impedance

WRS series speaker with 800 W maximum power, 3" copper wire voice coil, high sensitivity: 98 dB (1W / 1m)

FEA optimized ceramic magnetic circuit

Waterproof treatment on both sides of the cone

Low harmonic distortion and linear response

Wide range of low and mid-bass frequency applications

Beyma 15WRS400 technical features

Nominal diameter 380 mm 15 in

Nominal impedance 8 Ohm

Minimum impedance 7 ohm

Power capacity 400 W AES

Program power 800 W

Sensitivity 98 dB 1 W @ 1 m @ ZN

Frequency range 40-4000 Hz

Recommended enclosure volume 70 / 150 l 2.45 / 5.25 ft.³

Voice coil diameter 77 mm 3 in

BL factor 18.7 N/A

Moving mass 0.096

Winding length 16 mm

Air gap height 8 mm

Xdamage pp 30 mm

Fs 35 Hz

Re 5.6 ohm

Qms 9.1

Qes 0.34

Qts 0.33

Vas 233 l

Cms 213 µm / N

Rms 2.3 kg/s

Efficiency % 2.8

Sd 0.088 m²

Xmax 6.3 mm

Vd 555 cm³

Le @1 kHz 1.1 mH

Depth163 mm 6.42 in

Net weight 6.25 kg 13.78 lb

Total weight 7.25 kg 15.98 lb

Magnet Ferrite

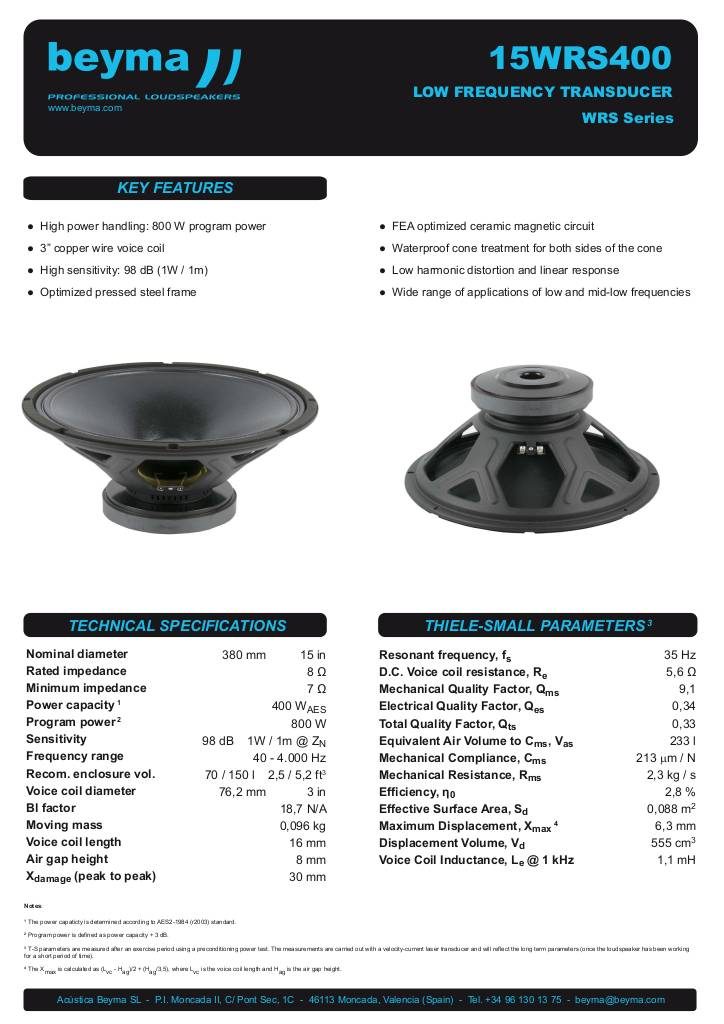

Scheda tecnica

n-20180503160257-15wrs400.pdf
€ 184,00 Price incl. VAT
