12WRS400

Beyma
Your price:
€ 151,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
300 mm
MAX Power
800 Watt
RMS Power
400 Watt
Frequency Response
45 - 5000 Hertz
Sensitivity
96.5 dB
Impedance
8 Ohm
Weight
6 Kg
Installation Depth
132 mm
Voice Coil Diameter
77 mm

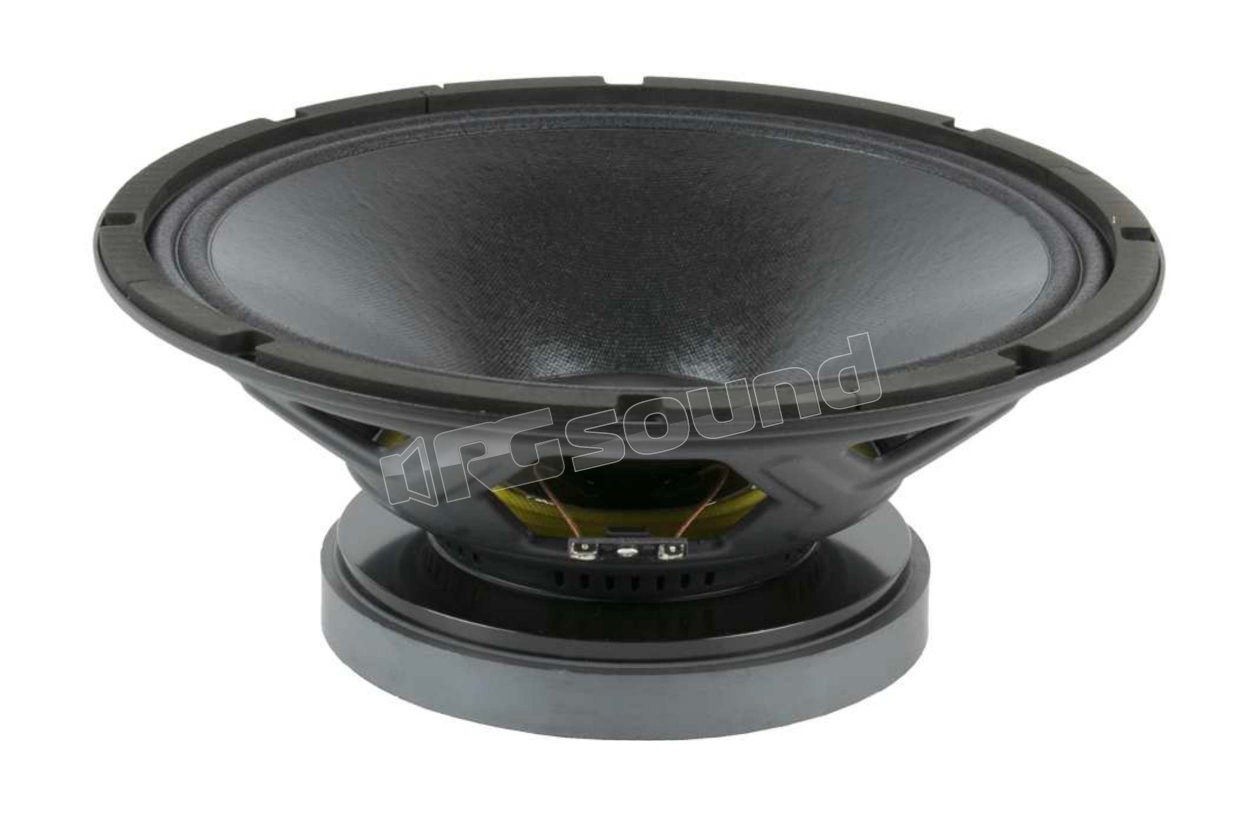

Beyma 12WRS400 woofer 30 cm, impedance 8 Ohm, power 800 W

3" copper wire voice coil

High sensitivity: 96.5 dB (1W / 1m)

Optimized ceramic magnetic circuit FEA

Waterproof treatment on both sides of the cone

Low harmonic distortion and linear response

Wide range of low and mid-low frequency applications

Nominal diameter 300 mm 12 in

Nominal impedance 8 Ohm

Minimum impedance 7 ohm

Power capacity 400 W AES

Program power 800 W

Sensitivity 96.5 dB 1 W @ 1 m @ ZN

Frequency range 45-5000 Hz

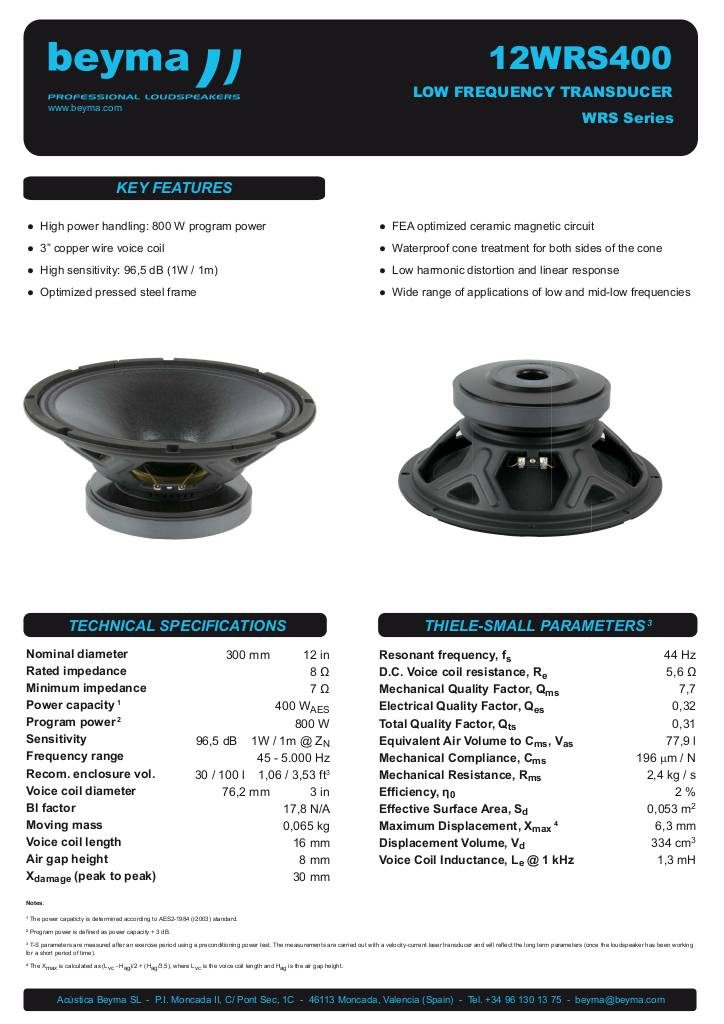

Scheda tecnica

n-20180503163827-12wrs400.pdf

Technical specifications of the Beyma 12WRS400

Recommended enclosure volume 30 / 100 l 1.06 / 3.53 ft.³

Voice coil diameter 77 mm 3 in

BL factor 17.8 N/A

Moving mass 0.065 kg

Winding length 16 mm

Air gap height 8 mm

Xdamage pp 30 mm

Fs 44 Hz

Re 5.6 ohm

Qms 7.7

Qes 0.32

Qts 0.31

Vas 77.9 l

Cms 196 µm / N

Rms 2.4 kg / s

Efficiency %2

Sd 0.053 m²

Xmax 6.3 mm

Vd 334 cm³

Le @1 kHz 1.3 mH

Depth 132 mm 5.20 in

Net weight 5.5 kg 12.12 lb

Total weight 6 kg 13.2 lb

Magnet Ferrite

€ 151,00 Price incl. VAT
