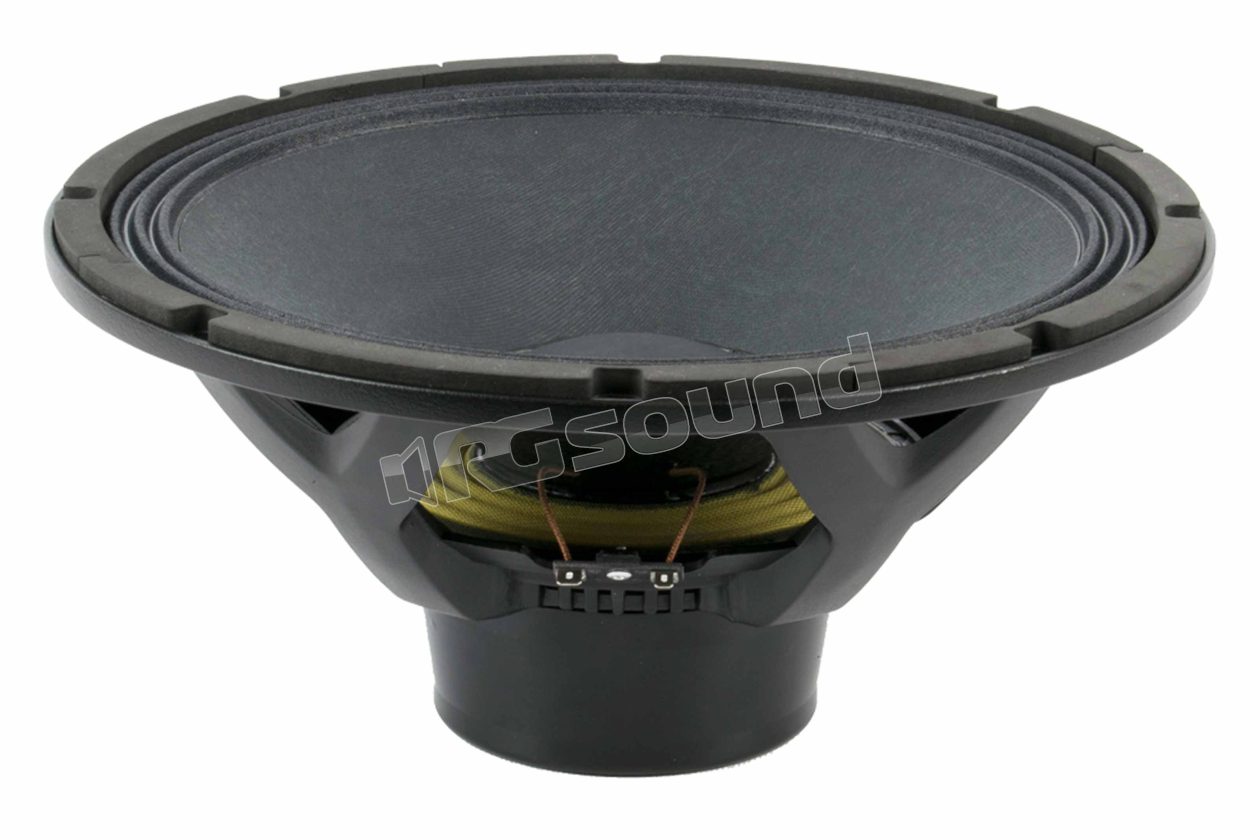

12MC700Nd low and mid frequency transducer 30 cm

Beyma
Your price:
€ 352,10
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
300 mm
MAX Power
1.400 Watt
RMS Power
700 Watt
Frequency Response
60 - 4.000 Hertz
Sensitivity
99 dB
Impedance
8 Ohm
Weight
3,7 Kg
Installation Depth
145 mm
Voice Coil Diameter
76 mm

Beyma 12MC700Nd low & mid frequency transducer 300mm from the MC Series, impedance 8 Ohm and rated power 700 W

Technical features:

Nominal impedance 8 Ohm

Power capacity 700 W AES

Nominal diameter 300 mm 12 in

Sensitivity 99 dB 1 W/1 m @ ZN

Minimum impedance 7 ohm

Frequency range 60-4000 Hz

Program power 1400 W

Recommended enclosure volume 40 l

Voice coil diameter 76.2 mm 3 in

Depth 145 mm 5.7 in

Net weight 3.7 kg 8.14lb

Weight 4.4 kg 9.7 lb

Magnet Neodymium

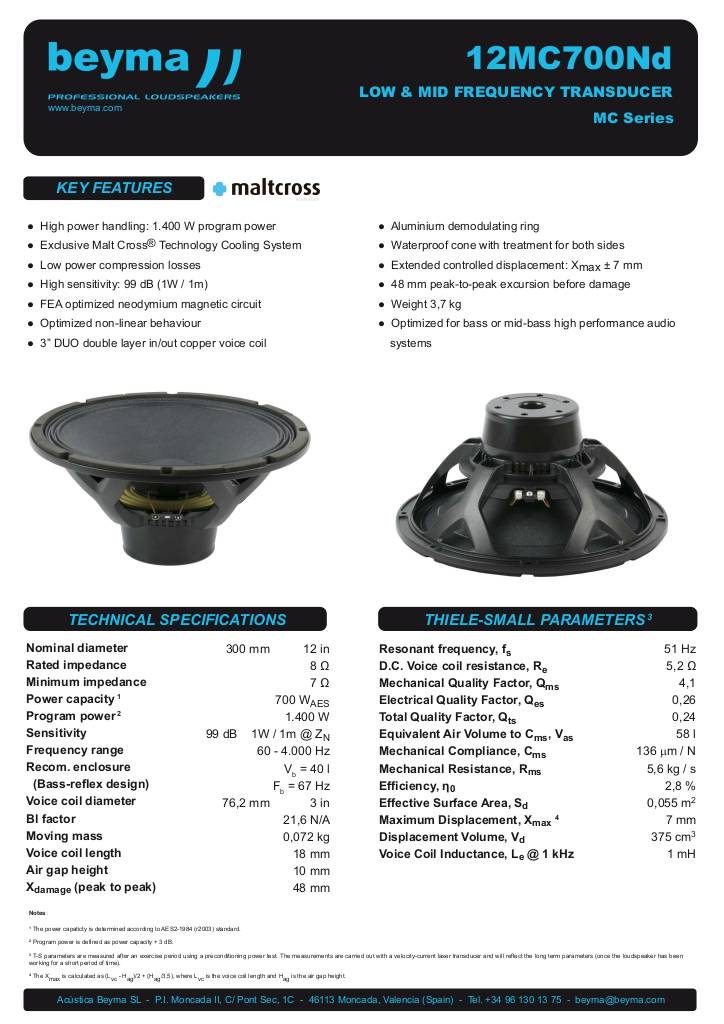

Scheda tecnica

n-20190402103804-12mc700nd.pdf

Beyma 12MC700Nd technical specifications

BL factor 21.6 N / A

Moving mass 0.072 kg

Winding length 18 mm

Air gap height 10 mm

Xdamage pp 48 mm

Fs 51 Hz

Re 5.2 ohm

Qms 4.1

Qes 0.26

Qts 0.24

Vas 58 l

Cms 136 µm / N

Rms 5.6 kg/s

Efficiency % 2.8

Sd 0.055 m²

Xmax 7 mm

Vd 375 cm³

Le @1 kHz 1 mH

€ 352,10 Price incl. VAT
