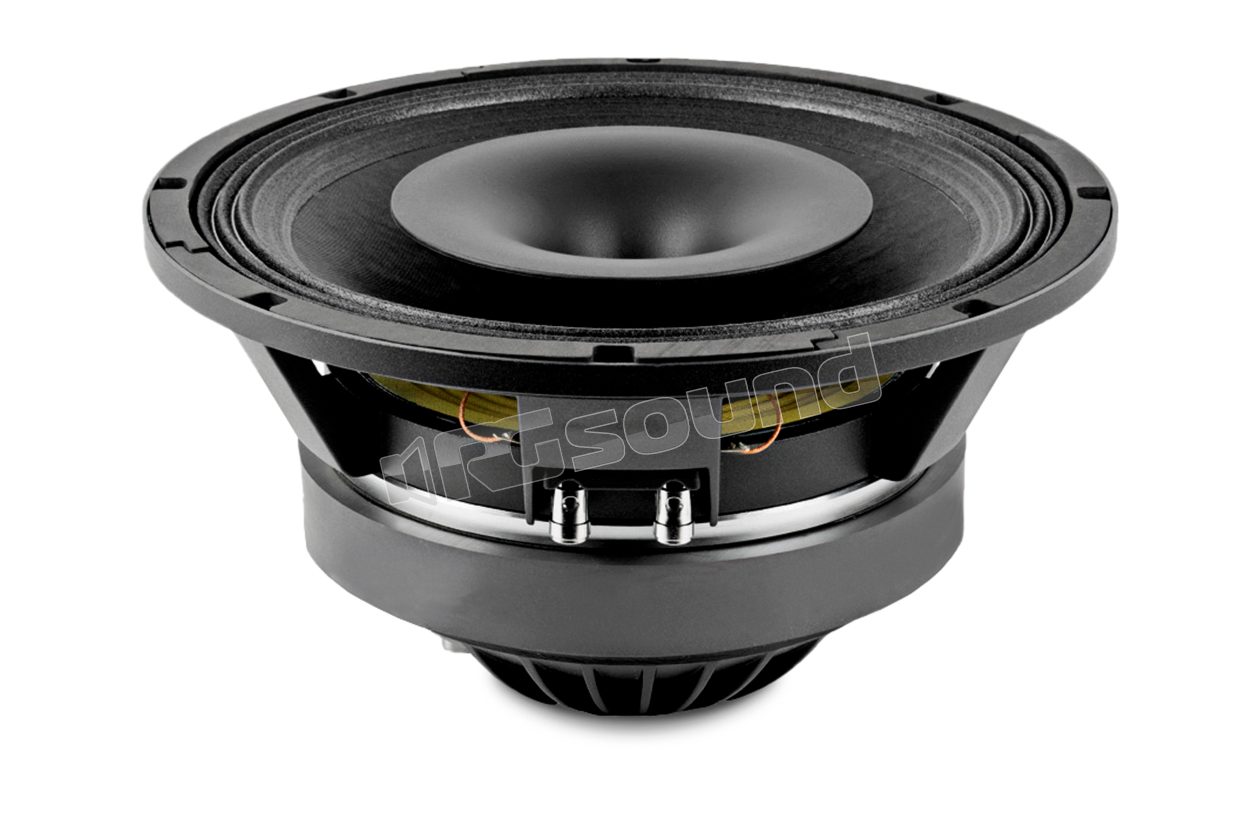

12CXA400Fe

Beyma
Your price:
€ 436,10
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to

Beyma 12CXA400Fe technical specifications

Nominal diameter300 mm 12 in
Nominal impedance LF/HF8/16 ohm
Minimum impedance LF/HF6.2/12.2 ohm
Power capacity LF/HF400/80 W AES
Program power LF/HF800/160 W
Sensitivity LF/HF96/105 2.83 @ 1 m @ 2Π
Frequency range40-20000 Hz
Recom. crossover frequency1.5 kHz or higher (12dB/oct min slope)
Voice coil diameter LF/HF100/72 mm - 4 /2.9 in
Dispersion (conical)60º
BL factor19.8 N/A
Moving mass0.066 kg
Winding length16 mm
Xdamage pp51 mm
LF Recone kit ref.5M12CXA4ND8
HF diaphragm ref.5MCP756

THIELE SMALL PARAMETERS

Fs42 Hz
Re6.6 ohm
Qms7.2
Qes0.26
Qts0.25
Vas94 l
Cms220 µm / N
Rms2.4 kg / s
Efficiency %2.2
Sd0.055 m²
Xmax6 mm
Vd210 cm³
Le @1 kHz1.1 mH

CONSTRUCTIVE DETAILS

Net weight11.3 kg 25.11 lb
Total weight11.7 kg 25.8 lb
MagnetFerrite

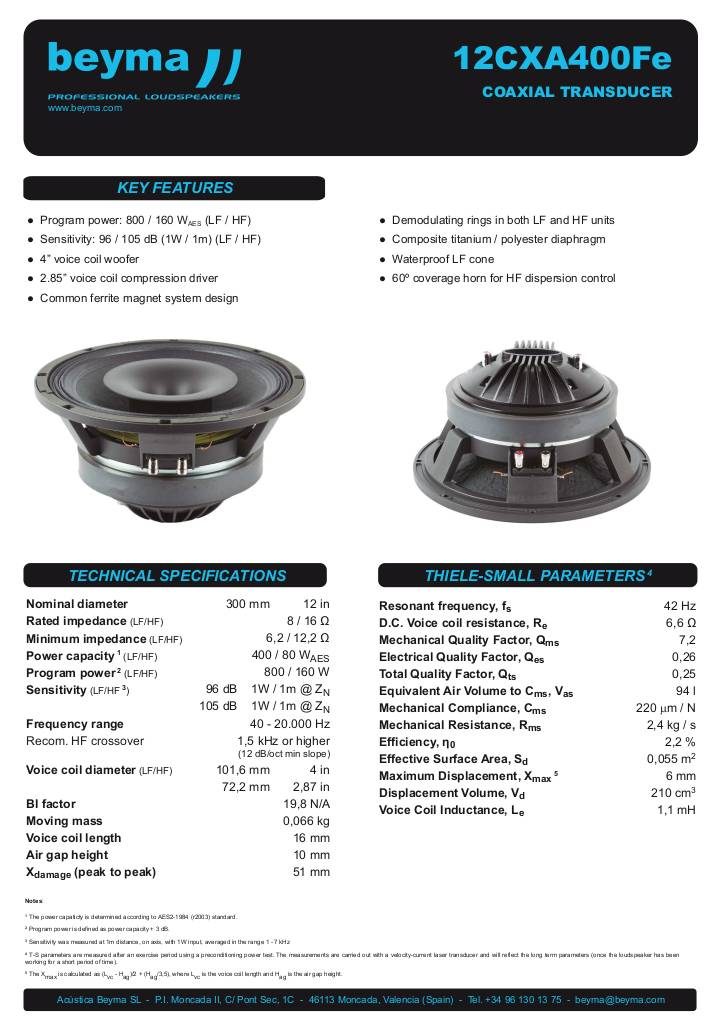

Scheda tecnica

n-20180919123135-12cxa400fe.pdf
€ 436,10 Price incl. VAT
