10MCS500

Beyma
Your price:
€ 157,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
250 mm
MAX Power
1000 Watt
RMS Power
500 Watt
Frequency Response
70 - 5000 Hertz
Sensitivity
96 dB
Impedance
8 Ohm
Weight
6 Kg
Installation Depth
125 mm
Voice Coil Diameter
63,5 mm

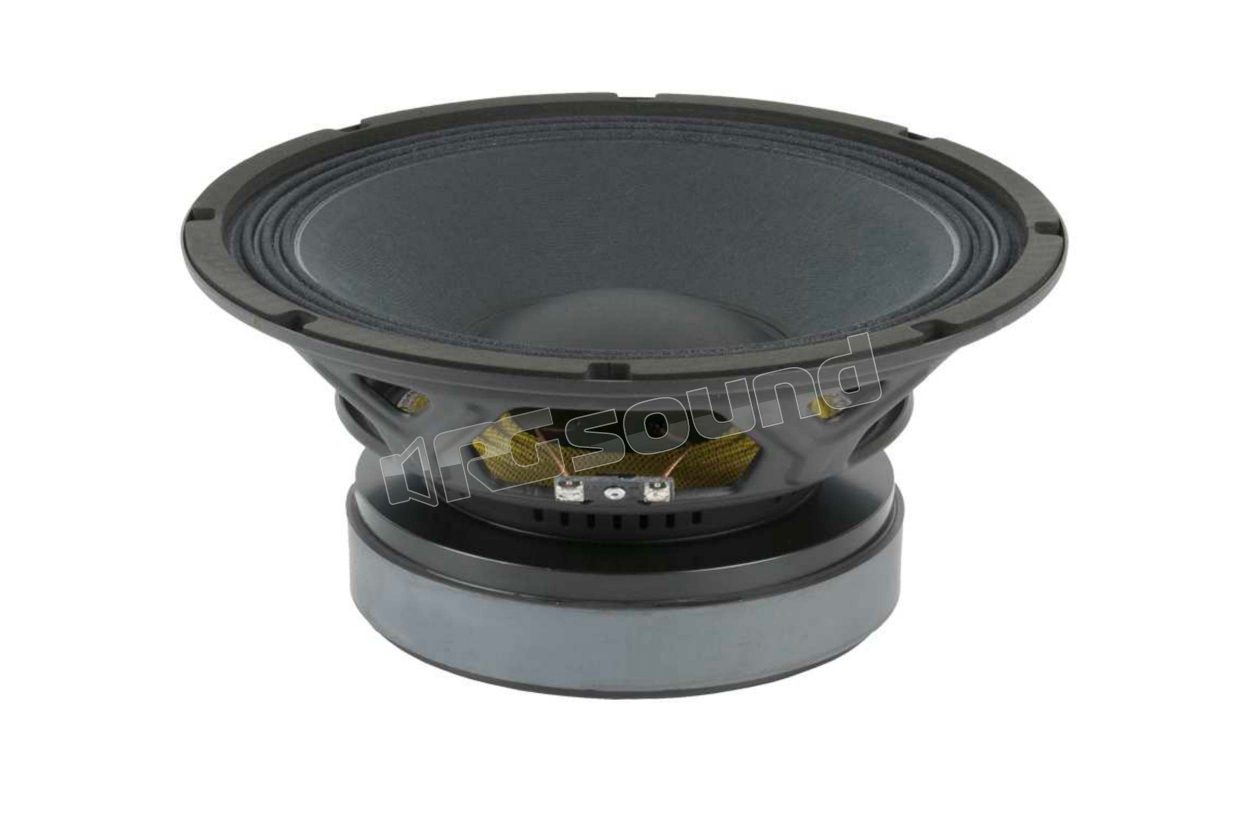

Beyma 10MCS500 woofer 25cm, impedance 8 Ohm, with a high maximum power of 1000 W, 2.5" copper wire voice coil, steel tealio, ferrite magnet, and innovative Malt Cross® cooling system

High sensitivity: 96 dB (1W / 1m)

Optimized magnetic circuit FEA

Waterproof cone with treatment on both sides

Optimized for professional applications

Technical specifications ofBeyma 10MCS500

Nominal diameter 250 mm 10 in

Nominal impedance 8 Ohm

Minimum impedance 7.2 ohm

Power capacity 500 W AES

Program power 1000 W

Sensitivity 96 dB @ 1 W @ ZN

Frequency range 70-5000 Hz

Voice coil diameter 63.5 mm 2.5 in

BL factor 17.6 N/A

Moving mass 0.047 kg

Winding length 19.5 mm

Air gap height 9.5 mm

Xdamage pp 40 mm

Fs 70 Hz

Re 5.7 ohm

Qms 10.1

Qes 0.38

Qts 0.37

Vas 18.8 l

Cms 109 µm / N

Rms 2.05 kg/s

Efficiency %1.65

Sd 0.035 m²

Xmax 8 mm

Vd 280 cm³

Le @1 kHz 1.1 mH

Depth 125 mm 4.9 in

Net weight 5.7 kg 12.5 lb

Total weight 6.1 kg 13.42 lb

Magnet Ferrite

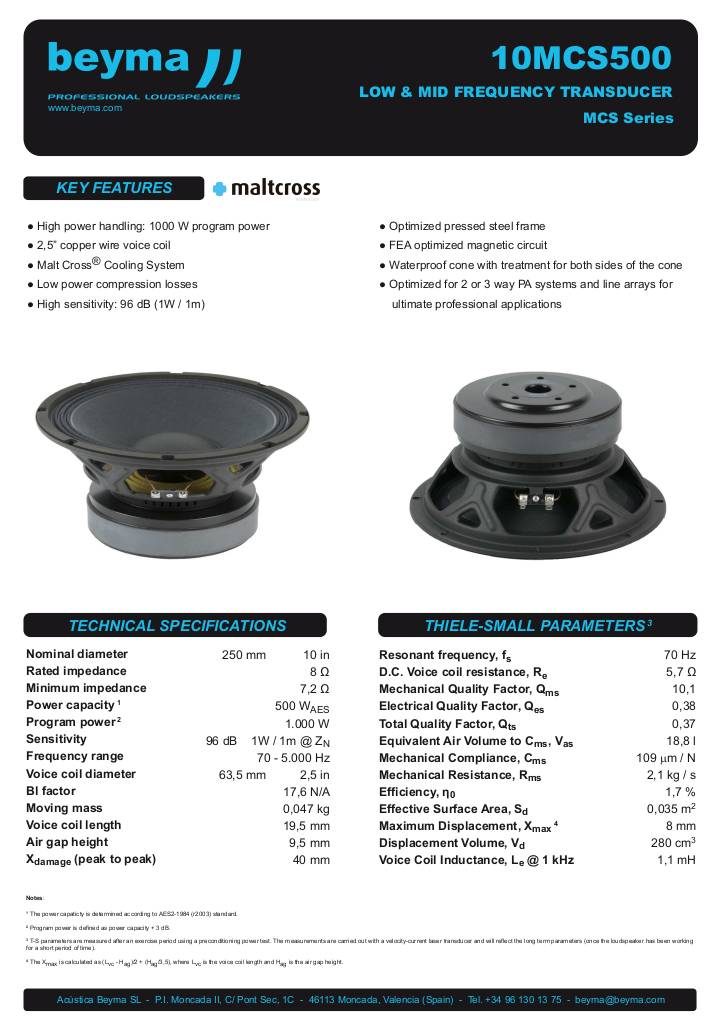

Scheda tecnica

n-20180503165127-10mcs500.pdf
€ 157,00 Price incl. VAT
