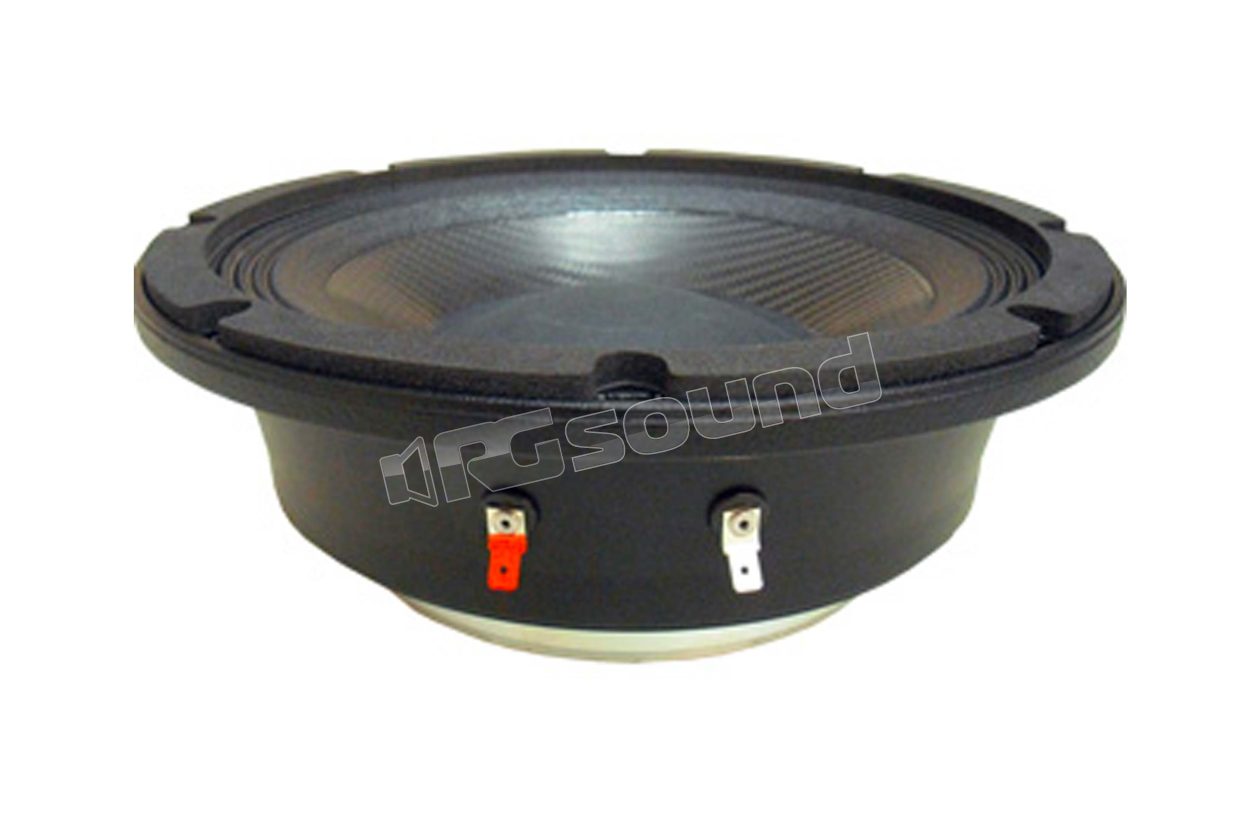

10MCF400Nd

Beyma
Your price:
€ 625,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Midrange
Speaker Size
250 mm
MAX Power
800 Watt
RMS Power
400 Watt
Frequency Response
300 - 5000 Hertz
Sensitivity
102 dB
Impedance
8 Ohm
Weight
6,6 Kg
Installation Depth
103 mm
Voice Coil Diameter
101 mm

Beyma 10MCF400Nd mid-range driver at extremely high efficiency 25 cm

Carbon fiber cone for optimal load behavior and low distortion

Extremely linear frequency response

4" aluminum voice coil

High efficiency and sensitivity

Neodymium motor structure optimized for FEA

Die-cast aluminum frame

Designed for horn loading applications and high-performance mid-frequency line arrays

Beyma 10MCF400Nd Technical Features

Nominal diameter 250 mm 10 in

Nominal impedance 8 Ohm

Minimum impedance 7.5 ohm

Power capacity 400 W AES

Program power 800 W

Sensitivity 102 dB 1 W/1 m @ ZN

Frequency range 300-5000 Hz

Voice coil diameter 101.6 mm 4 in

BL factor 28.8 N/A

Moving mass 0.038 kg

Winding length 11.5 mm

Air gap height 10 mm

Fs 270 Hz

Re 5.9 ohm

Qms 14.5

Qes 0.47

Qts 0.45

Vas 1.8 l

Cms 9 µm / N

Rms 4.4 kg/s

Efficiency %7.55

Sd 0.038 m²

Xmax 3.5mm

Vd 133 cm³

Le @1 kHz 0.5 mH

Depth 103 mm 4.05 in

Net weight 6.2 kg 13.67 lb

Total weight 6.6 kg 14.55 lb

Magnet Neodymium

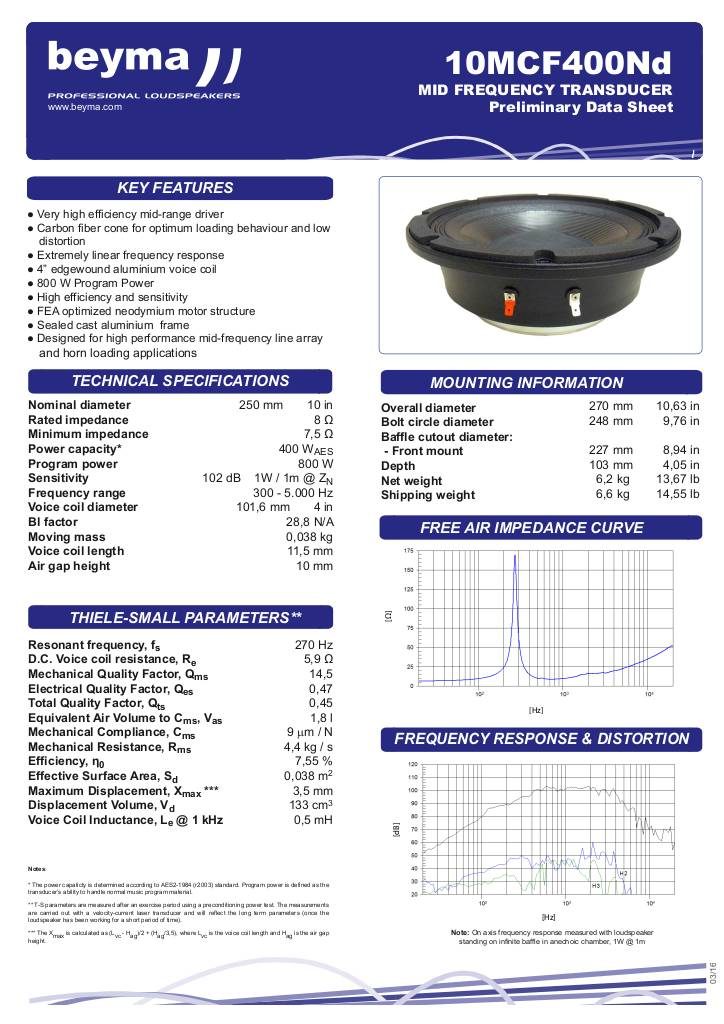

Scheda tecnica

n-20180503170620-10mcf400nd.pdf
€ 625,00 Price incl. VAT
