STP HOOD SOLUTION insulation for hood and engine compartment

AZ Audiocomp

Discontinued

Your price:
€ 148,10
Price per single item (VAT included)

STP HOOD SOLUTION thermal and acoustic insulation - 2 Sheets of 80x140cm (package of 2 sheets), thickness 1cm.

For a silent and cool ride on cars, trucks, campers and buses.

STP HOOD SOLUTION Features:

• Reduces engine noise
• Reflects and blocks engine heat
• Protects vehicle paint
• Easy to install (self-adhesive)
• Resistant to water and oil

The material is a gray soundproofing material consisting of a multi-layered combination with elastic polyurethane, an upper layer formed by metallized polyester film and an adhesive layer protected by a non-stick film.
The upper layer is a barrier against oil and is made of gasoline-resistant material. The temperature range ranges from 40 degrees below zero to 100 above.
In the production of the material, elastic polyethylene foam is used with an apparent density of 25+3 - 3kg per cubic meter.
The material can be mounted on smooth and rough surfaces with less than 100mm radius of curvature.
If the surface is complex, the irregularities of the components should be taken into account. The material should not come into contact with water or organic solvents.

STP HOOD SOLUTION Technical Features

Thickness, mm 10
Weight Kg/m2 1.2
Resistance of the connection between the outer cover and the polyurethane foam
not less than N/cm2		 2.5
Resistance of the connection between the anti-adhesive film and the adhesive layer not less than N/cm 4
Resistance of the connection between the material and the supporting surface not less than N/cm the panel and adhesive support are not damaged
Resistance of the material to the impact of a temperature of 100 degrees C for 12 hours the panel and adhesive support are not damaged
Resistance of the material to the impact of water for 6 hours 100
Sound absorption factor
400 Hz 0.15
630 Hz 0.30
800 Hz 0.25
1000 Hz 0.45
1250 Hz 0.65
1600 Hz 0.50
2000 Hz 0.50
2500 Hz 0.40
4000 Hz 0.35

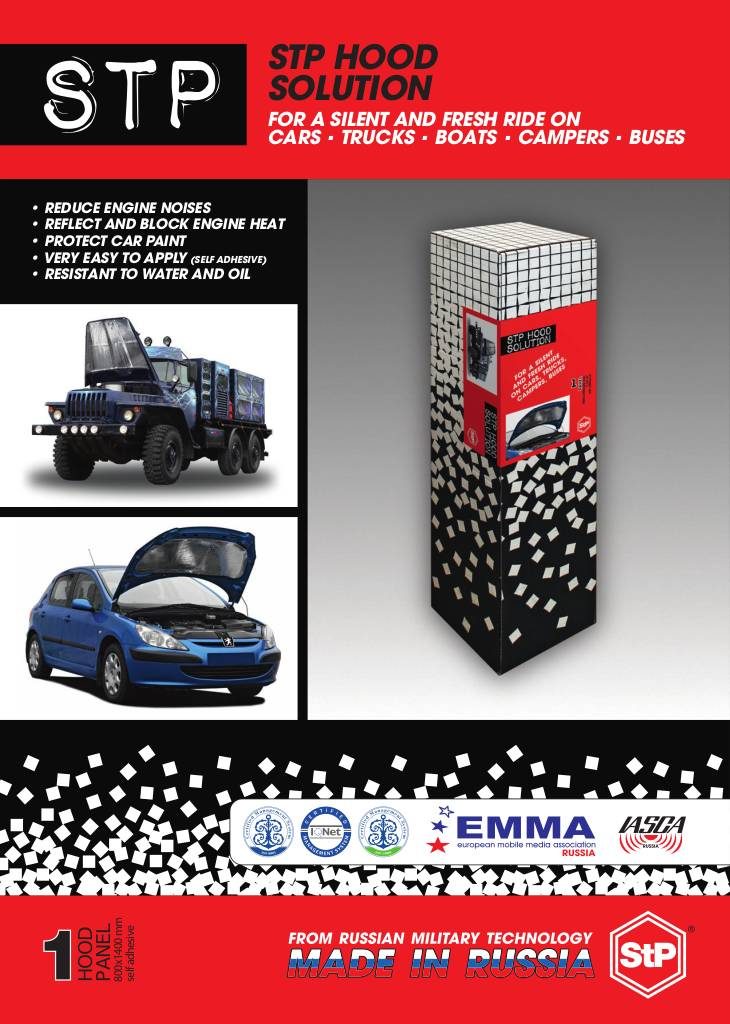

Scheda tecnica inglese

20120104101018-stp-hood-solution.pdf

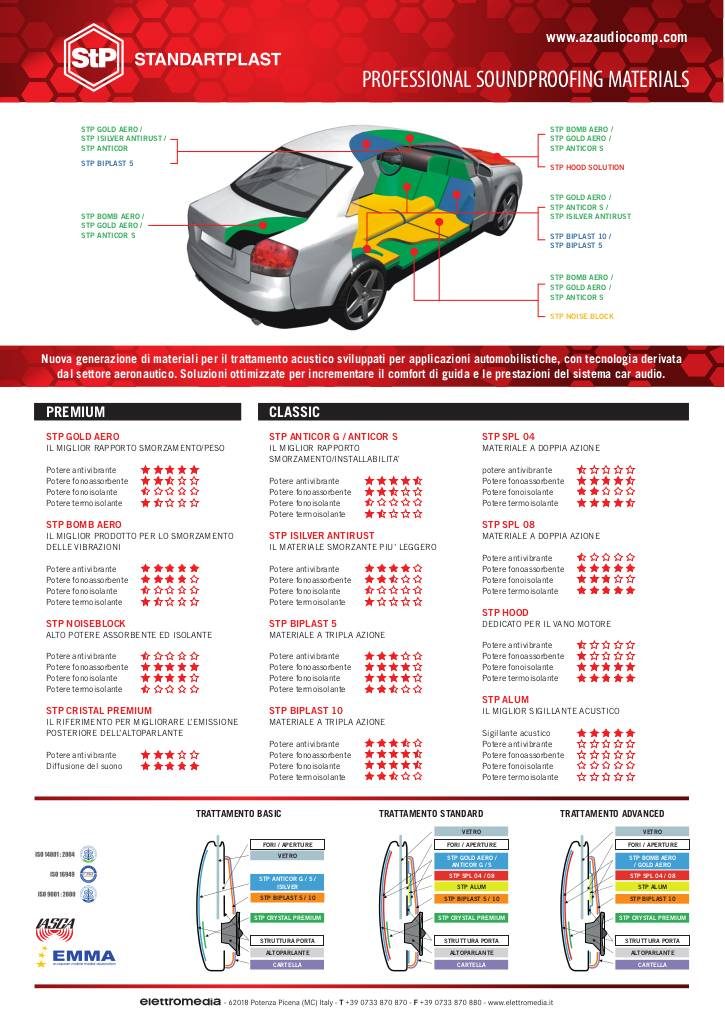

Scheda tecnica

20140701114013-stp-flyer-a4-ita.pdf

2x sheet STP HOOD SOLUTION (thickness 1cm)
Discontinued
