STP HOOD SOLUTION 10 insulation for hood and engine compartment

STP Standartplast
Your price:
€ 74,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to

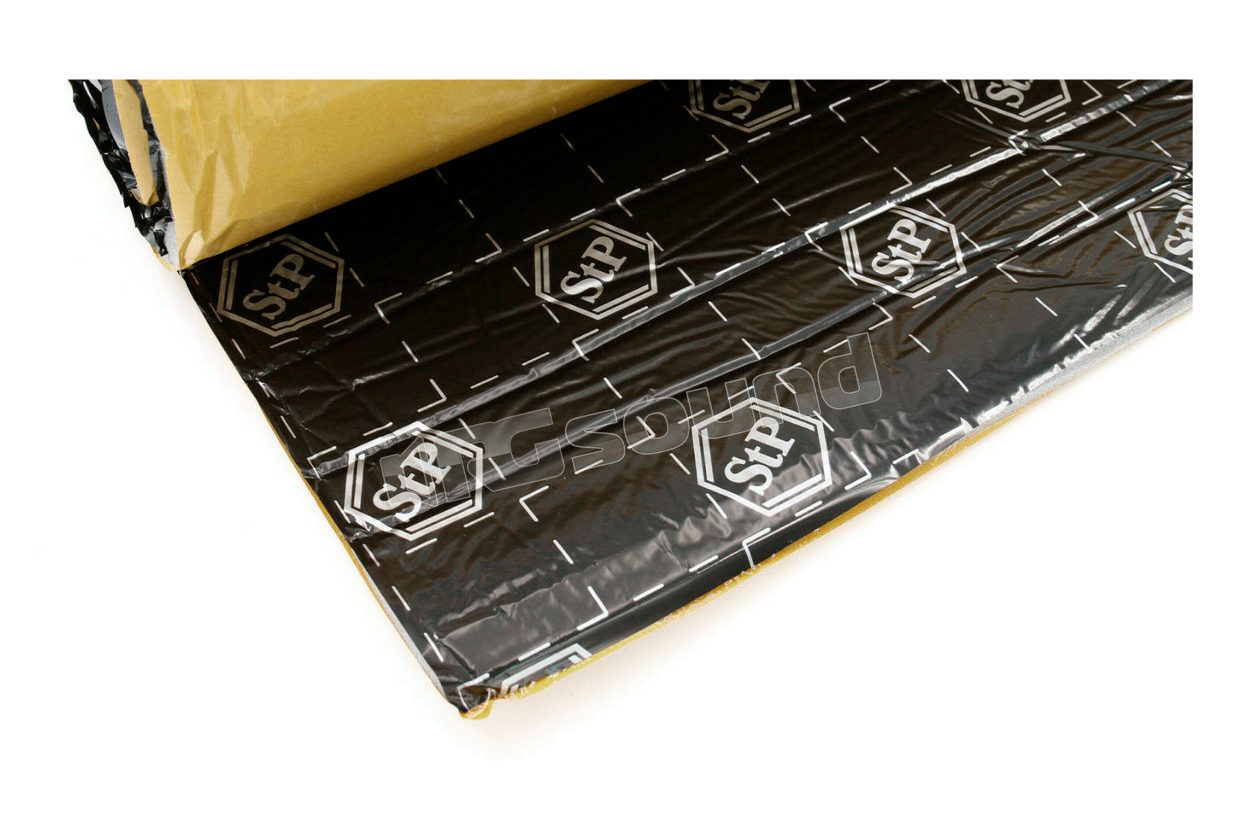

73910203 - STP HOOD SOLUTION 10 thermal and acoustic insulation

Sheet of 80x140cm (package of 1 sheet), thickness 10mm.

Acoustic insulation for the engine hood, creates a quiet and cool driving environment on: automobiles, trucks, campers and buses.

STP HOOD SOLUTION Features:

• Reduces engine noise
• Reflects and blocks engine heat
• Protects vehicle paint
• Easy to install (self-adhesive)
• Resistant to water and oil

The material is a gray soundproofing material that consists of a multi-layered combination with elastic polyurethane, an upper layer formed by metallized polyester film and an adhesive layer protected by a non-stick film.
The upper layer is a barrier against oil and is made of gasoline-resistant material. The temperature range is from 40 degrees below zero to 100 above.
In the production of the material, elastic polyethylene foam is used with the apparent density of 25+3 - 3kg per cubic meter.
The material can be mounted on smooth and rough surfaces with less than 100mm radius of curvature.
If the surface is complex, the irregularities of the components should be taken into account. The material must not come into contact with water or organic solvents.

STP HOOD SOLUTION Technical Features

Thickness, mm 10
Weight Kg/m2 1.2
Connection resistance between the external covering and the polyurethane foam
not less than N/cm2
2.5
Connection resistance between the non-stick film and the adhesive layer not less than N/cm 4
Connection resistance between the material and the support surface not less than N/cm the panel and adhesive support do not suffer damage
Resistance of the material to the impact of a temperature of 100 degrees C for 12 hours the panel and adhesive support do not suffer damage
Resistance of the material to water impact for 6 hours 100
Sound absorption factor
400 Hz 0.15
630 Hz 0.30
800 Hz 0.25
1000 Hz 0.45
1250 Hz 0.65
1600 Hz 0.50
2000 Hz 0.50
2500 Hz 0.40
4000 Hz 0.35

Scheda tecnica inglese

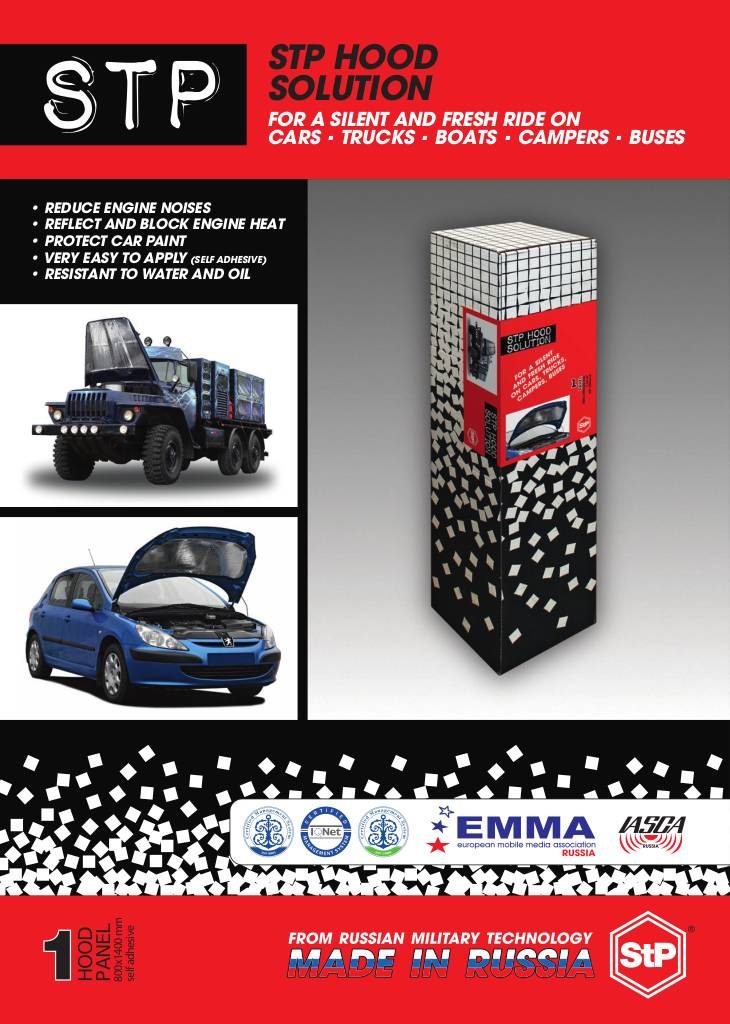

20120104101018-stp-hood-solution.pdf

Scheda tecnica

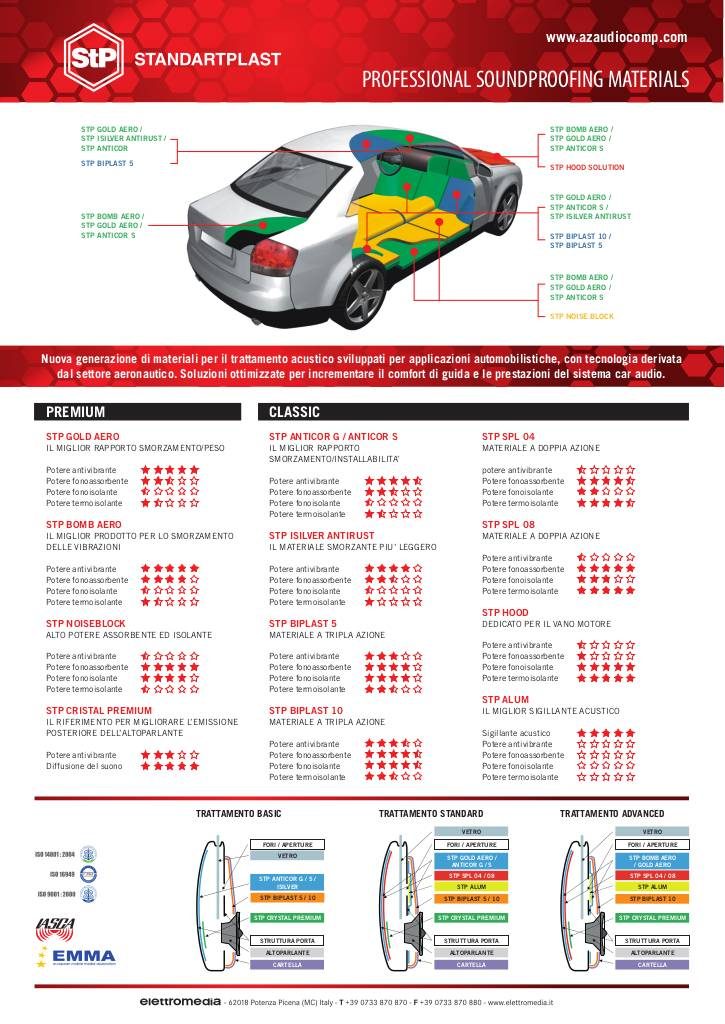

20140701114013-stp-flyer-a4-ita.pdf

1x STP HOOD SOLUTION sheet (thickness 10 mm)
€ 74,00 Price incl. VAT
