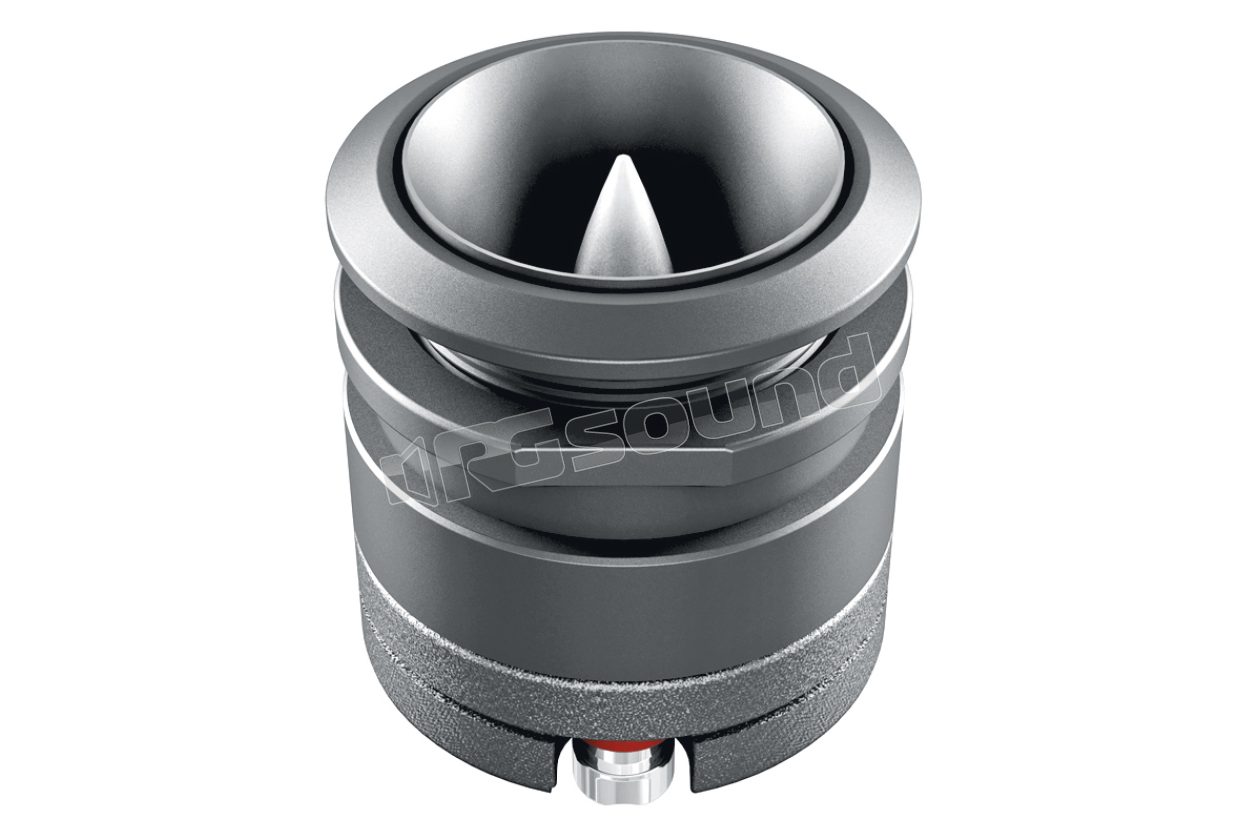

ST 25 SPL Show

Hertz

Discontinued

Your price:
€ 126,00
Price per pair (VAT included)

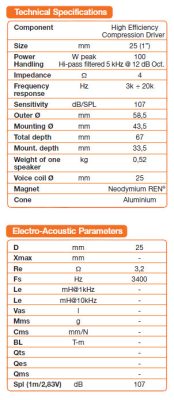

Type
Tweeter
Dome Size
25 mm
MAX Power
100 Watt
Frequency Response
3000 - 20000 Hertz
Sensitivity
107 dB
Impedance
4 Ohm
Outer Diameter
58,5 mm
Installation Depth
33,5 mm
Tweeter Material
Alluminio

SET BULLET COMPRESSION TWEETER Neodymium 25mm

Compact and extremely compact with explosive performance: ST 25 is the first Hertz tweeter specifically designed for SPL competitions. ST 25 uses a 25 mm CCAR (Copper Clad Aluminium Ribbon) coil, with an extra-light aluminum diaphragm with high dissipation, an extremely powerful Neodymium REN® magnet and a high-efficiency horn load, for maximum sound pressure at high frequencies.

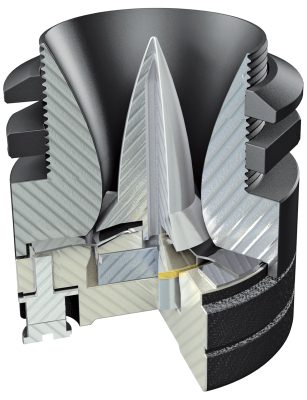

  1. Polar plates with high thermal dissipation and high magnetic permeability; provide a continuous and constant flux.
  2. Neodymium REN® magnet, for high SPL performance.
  3. Flat section aluminum wire coil; for exceptional thermal and mechanical capacity.
  4. Extra-light aluminum diaphragm.
  5. Anodized aluminum body; for maximum damping and suppression of internal resonances.
  6. Tin plated terminals, for maximum conductivity.
  7. High-efficiency compression horn.

Specifiche - grafico

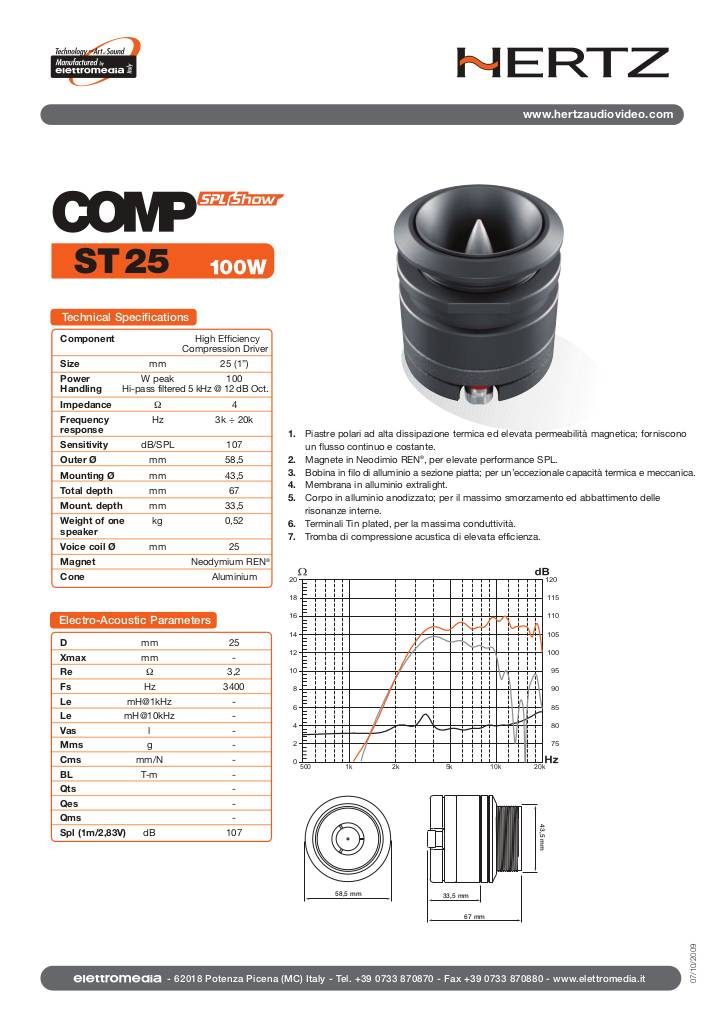

20100920164615-hertz-st25.pdf
