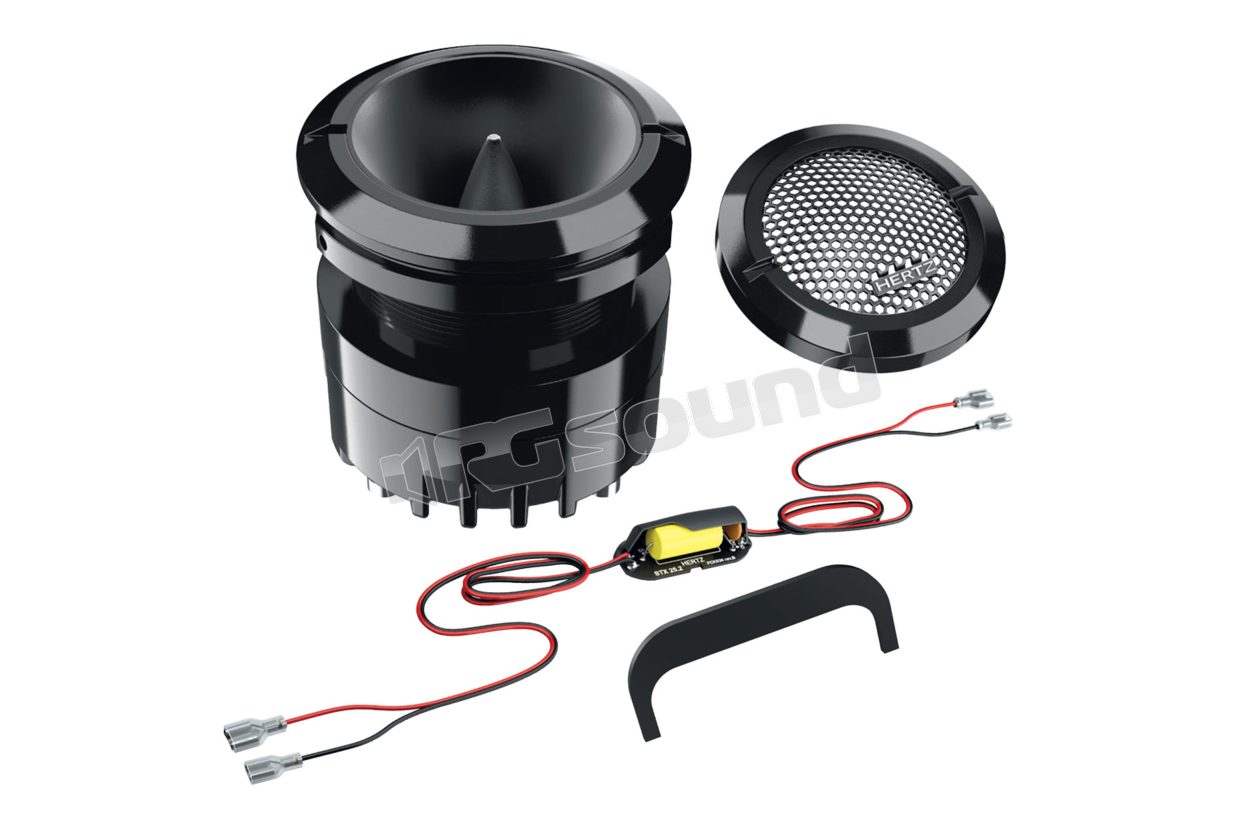

ST 25K Neo.2 SPL Show 25mm compression tweeter with grille and crossover filter

Hertz
Your price:
€ 189,00
Price per pair (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Super Tweeter
Dome Size
25 mm
MAX Power
100 Watt
Frequency Response
3000 - 20000 Hertz
Sensitivity
107 dB
Impedance
4 Ohm
Outer Diameter
57 mm
Installation Depth
25,8 mm
Tweeter Material
Neodimio

Hertz ST 25K Neo.2 pair of high efficiency compression drivers 100 W, 4 Ohm

The bullet tweeters of the NEO line are a totally new design, lighter and more compact than the previous ST 25 and with superior performance thanks to the use of neodymium N38 H for the motor units and an optimized driver/horn design with FEM (Finite Element Method). The "Kit" version, ST 25K Neo, is equipped with metal grille and inline crossover filter included.

Main Features

  • Powerful neodymium magnet that guarantees high performance with compact dimensions.
  • Phase plug and loading horn optimized with FEM (finite element method).
  • CCAR (Copper Clad Aluminium Ribbon) voice coil for unprecedented thermal and mechanical capabilities, ready for easy replacement with the replacement kit.
  • Ultralight aluminum diaphragm to maximize SPL with high current screw terminals.
  • Waterproof body and UV anti-treatment to allow safe outdoor use without discoloration over time.
  • "Kit" version with metal grille and inline crossover filter included.

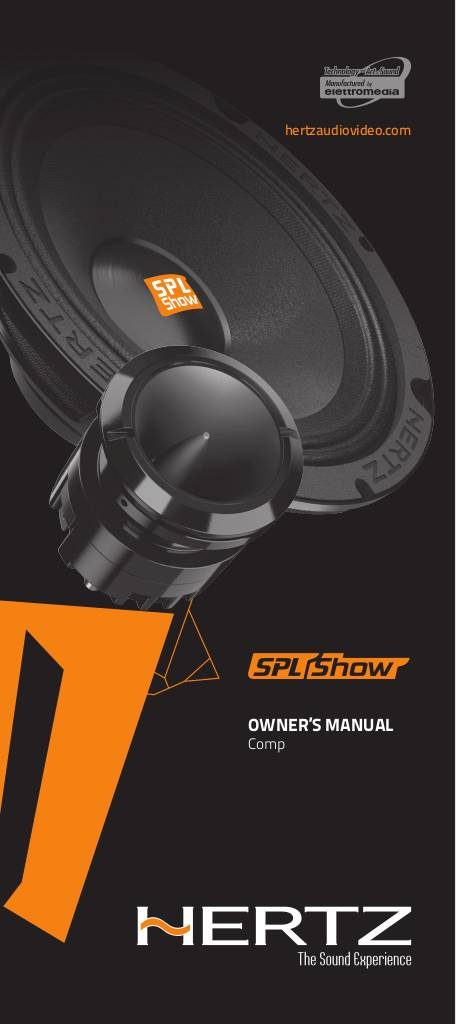

Manuale utente

n-20250828143911-fil036-esec-owners-manual-spl-show-rev21f-7.pdf

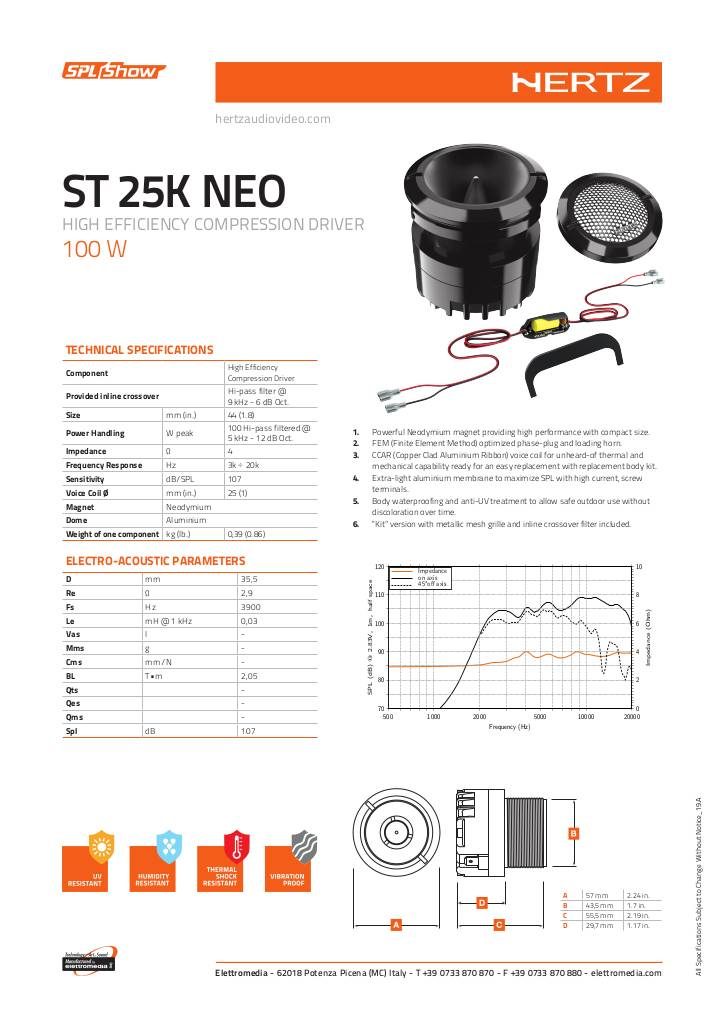

Scheda tecnica tweeter

n-20250828143911-hertz-st-25k-neo-tech-sheet.pdf

Hertz ST 25K Neo.2 technical specifications

  • High efficiency compression driver component
  • Dimensions mm (inches) 44 (1.8)
  • Rated Power - Peak W 100
  • Rated Power - Peak Note High pass filter @ 5 kHz - 12 dB Oct.
  • Impedance Ohm 4
  • Voice coil Ø 25 (1)
  • Frequency response Hz 3k ÷ 20k
  • Weight of one component kg (lb.) 0.39 (0.86)
  • Magnet Neodymium
  • Dome Aluminum

Electroacoustic Specifications

  • D mm 35.5
  • Re Ohm 2.9
  • Fs Hz 3900
  • Le mH 0.03
  • BL T*m 2.05
  • Spl dB 107
€ 189,00 Price incl. VAT
