SPR-50C

Alpine

Discontinued

Your price:
€ 245,00
Price per single item (VAT included)
Type
2-way separate kit
Frequency Response
70-29000 Hertz
Woofer Size
130 mm
Tweeter Size
58 millimetri
MAX Power
300 Watt
RMS Power
100 Watt
Sensitivity
87 dB
Impedance
4 Ohm
Woofer Material
Composito di cellulosa
Tweeter Material
Composito di cellulosa

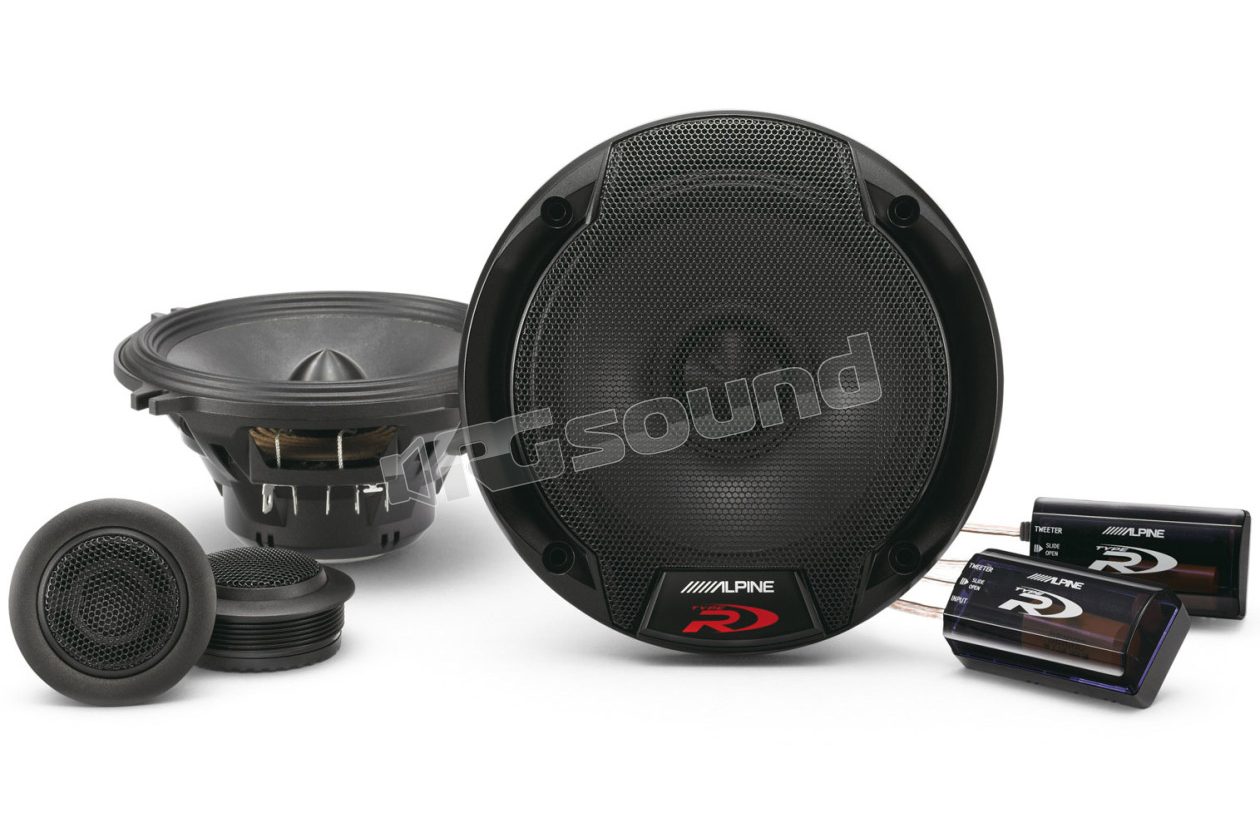

Alpine SPR-50C - 5-1/4" (13cm) 2-WAY SEPARATE SPEAKER

The Type-R Speakers are designed to handle exceptional power while maintaining extreme clarity and entirely thrilling sound.

The Type-R series of which the SPR-50C kit is part includes both coaxial and separate models, both are highly efficient and offer wide installation possibilities in the various vehicles present on the market.

Incredibly Powerful Bass

Using some of the technologies of Type-R subwoofers, such as HAMR Surround, for very long cone excursion while maintaining maximum control, these speakers offer deep and powerful bass.

Superb Sound Quality

Type-R speakers use quality components and advanced technical solutions, such as the light and robust multi-layer cone, Linear Drive magnet and Dual Gap voice coil that guarantee maximum linearity for excellent sound quality.

Compact, to ease installation

Thanks to the neodymium magnet, powerful but of reduced dimensions, the small crossover and the small basket, type-R speakers are much more compact than you might imagine, to be installed in most vehicles on the market.

The wave guides concentrate the sound

Alpine has developed a special wave guide for the cone that further improves sound quality. Mounted above the central dome, it prevents distortion of sound waves from the diaphragm and concentrates the sound to obtain maximum clarity (only for SPR-60C / 50C)

Swivel Tweeter

Both Separate and coaxial models have a swivel ring tweeter, to improve performance even in non-ideal positions. You can point it manually in the desired direction to obtain the best possible sound image.

Ultracompact Crossover Design

The Crossover is 75% smaller than previous models, to simplify installation in door panels. It provides four levels of tweeter adjustment to help you achieve the best balance between tweeter and woofer.

FEATURES SPR-50C

Tweeter
1″ (2.5cm) Ring Radiator Tweeter
Large Aluminum Voice Coil
Neodymium Magnet
Swivel Application
Flush Mount, Surface Mount Application

Woofer
Hybrid Multi Layer Cone
Linear Drive Technology
HAMR Surround
Large Aluminum Voice Coil
Copper Square Wire
Ultra High Density Neodymium Magnet
DX Ring
Wave Guide
Shallow Mounting Design
Bi-Amp Ready Design

Crossover
In-line Network Design
Attenuation Control: 4 Step (0, -2, -4, -6 dB)
High Grade Network Components
Others: Pure Copper Trace-Style Resistance Circuit Board

SPECIFICATIONS SPR-50C

Power Specifications

Maximum Power: 300 Watts
RMS Power: 100 Watts

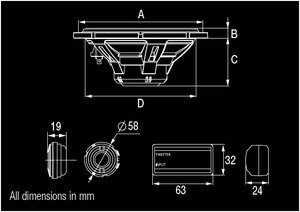

Dimensions

Woofer Mounting Diameter: 118 mm
Woofer Mounting Depth: 57 mm
Tweeter Mounting Diameter: 58 mm
Tweeter Mounting Depth: 19 mm

General

Frequency Response: 70 Hz - 29 kHz
Impedance: 4 Ohms
Sensitivity: 87 dB/W (1m)

All dimensions are in mm.

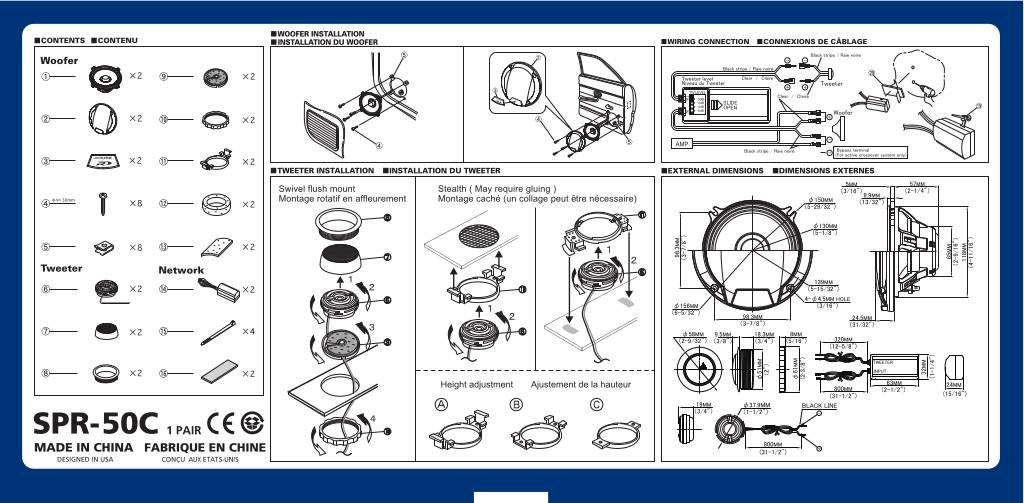

Manuale utente

20110415171446-om-spr-50c-en.pdf

Pair of woofers Pair of tweeters Pair of crossovers
