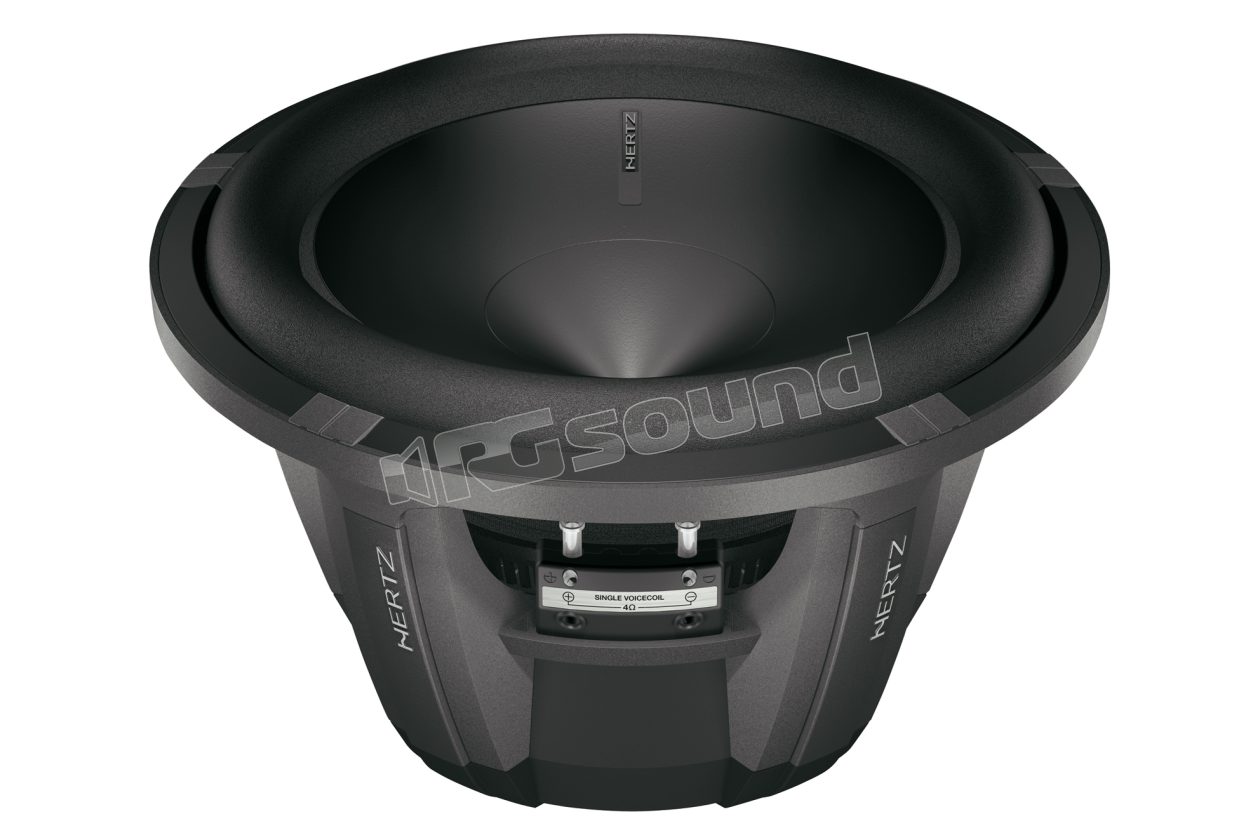

HX 300.5 30 cm Subwoofer Hi-Energy Line

Hertz

Discontinued

Your price:
€ 239,00
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
320 mm
MAX Power
1200 Watt
RMS Power
600 Watt
Frequency Response
28 - 700 Hertz
Sensitivity
90 dB
Impedance
4 Ohm
Weight
9,7 Kg
Installation Depth
162 mm
Woofer Material
Polypropylene with Mica injection

Hertz HX 300.5 Subwoofer 30 cm Linea Hi-Energy

The HX subwoofers in the Hi-Energy line represent the maximum technological expression in the reproduction of low frequencies. The V-cone promotes a wide acoustic dispersion that makes the sound even more powerful. The forced ventilation system with holes on the bottom plate, combined with the particular length of the central pole and the materials chosen for the voice coil, produce high thermal dissipation capacity. The frame constructed in ultralight anti-resonant aluminum alloy and designed with spokes offers a reduction in the impact on acoustic emission.


The fine finishes and rubber protections, which cover the magnetic groups, in addition to reducing induced spurious vibrations, allow the realization of subwoofer units with an attractive and aggressive appearance. The balance of electroacoustic parameters makes the HX suitable for different types of load, both in pneumatic suspension and tuned reflex enclosures, always generating a powerful, clean and undistorted sound.
The HX 300.5 is a 30 cm Subwoofer, 4 Ohm, 600 W rms

scheda tecnica - specifiche

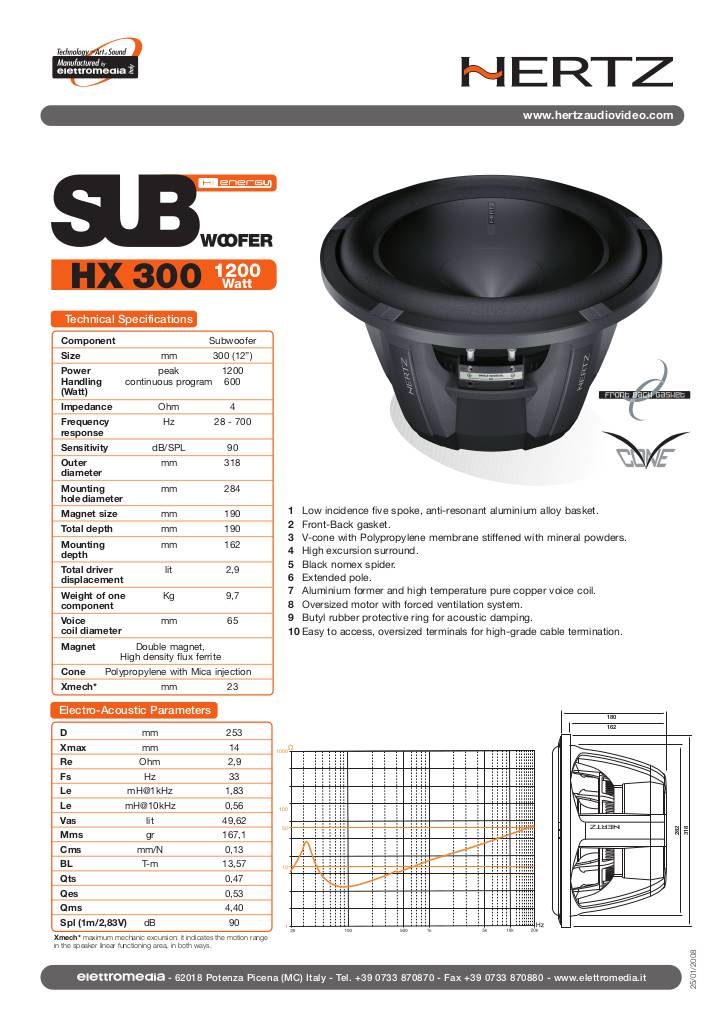

20080813113643-pdf-hx300.pdf

Hertz HX 300.5 Technical Specifications

  • Subwoofer Component
  • Size mm 300 (12")
  • Power management program (Watt)
    • Continuous 600
    • Peak 1200
  • Impedance Ohm 4
  • Frequency response Hz 28 - 700
  • Sensitivity dB/SPL 90
  • External diameter mm 318
  • Mounting hole diameter mm 284
  • Magnet size mm 190
  • Total depth mm 190
  • Mounting depth mm 162
  • Total speaker displacement lit 2.9
  • Component weight Kg 9.7
  • Voice coil diameter mm 65
  • Magnet Double high flux density Ferrite magnet
  • Cone Polypropylene with Mica injection
  • Xmech* mm 23
Discontinued
