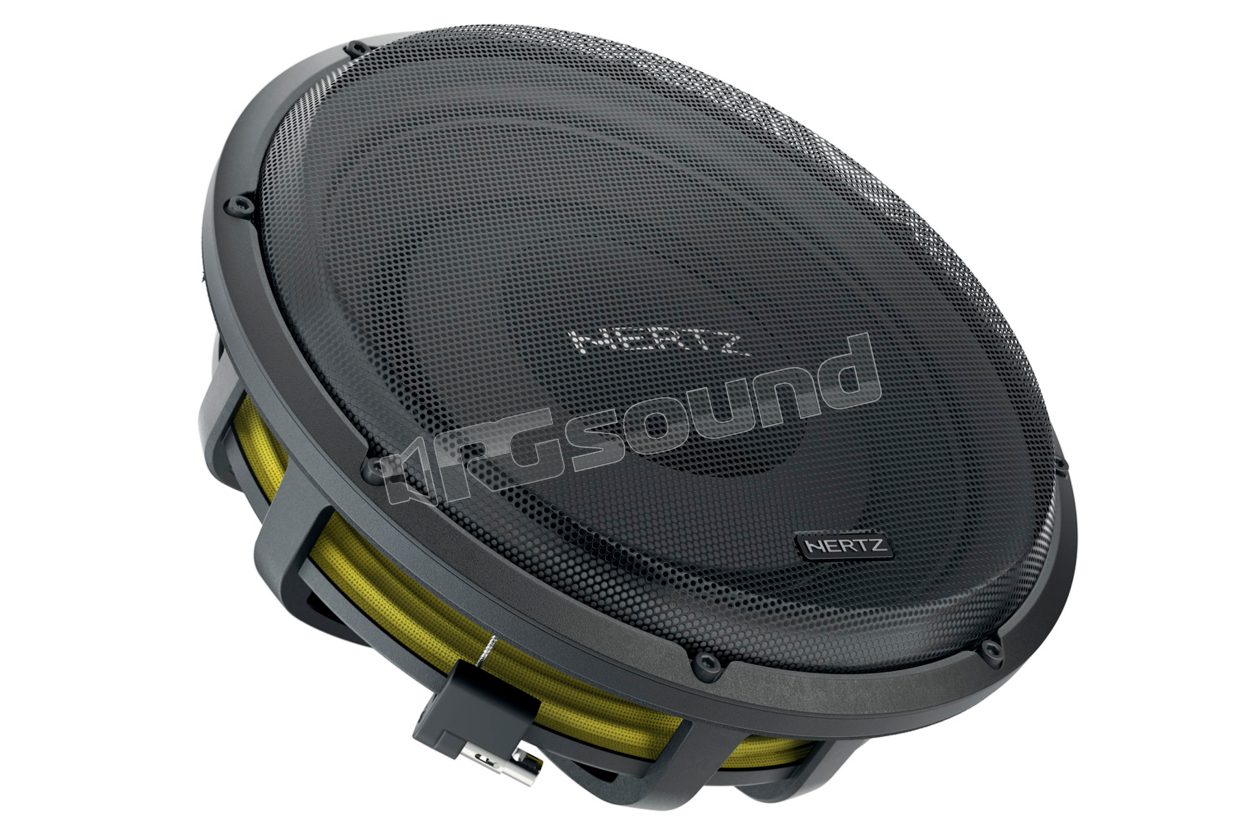

MPS 300 S4 30cm slim subwoofer for compact enclosures

Hertz
Your price:
€ 399,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Subwoofer
Speaker Size
300 mm
MAX Power
1000 Watt
RMS Power
500 Watt
Frequency Response
40 - 500 Hertz
Sensitivity
85 dB
Impedance
4 Ohm
Weight
6,6 Kg
Installation Depth
88 mm
Woofer Material
Polipropilene

Hertz MPS 300 S4 subwoofer 300mm (12"), power 1000 Watt, impedance 4 Ohm

The MPS 300 S4 bass subwoofer has been designed to achieve exceptional performance even when the available space for subwoofer installation is very limited.

MPS 300 S4 is optimized to work in ultracompact sealed boxes starting from just 22.7 Lt (0.8 Cf). A typical example is a subwoofer box under the rear bench of pickup trucks, where space and height are limited.

MPS 300 S4 has a depth/performance ratio never achieved before thanks to the impressive cone excursion capacity of 20% compared to a traditional design.

This exceptional objective was achieved thanks to the ingenious design of the suspension group characterized by a dedicated support structure for the spider and coil. This solution allowed the movement of the magnetic group inward, reducing its depth while maximizing the linear excursion of the cone.

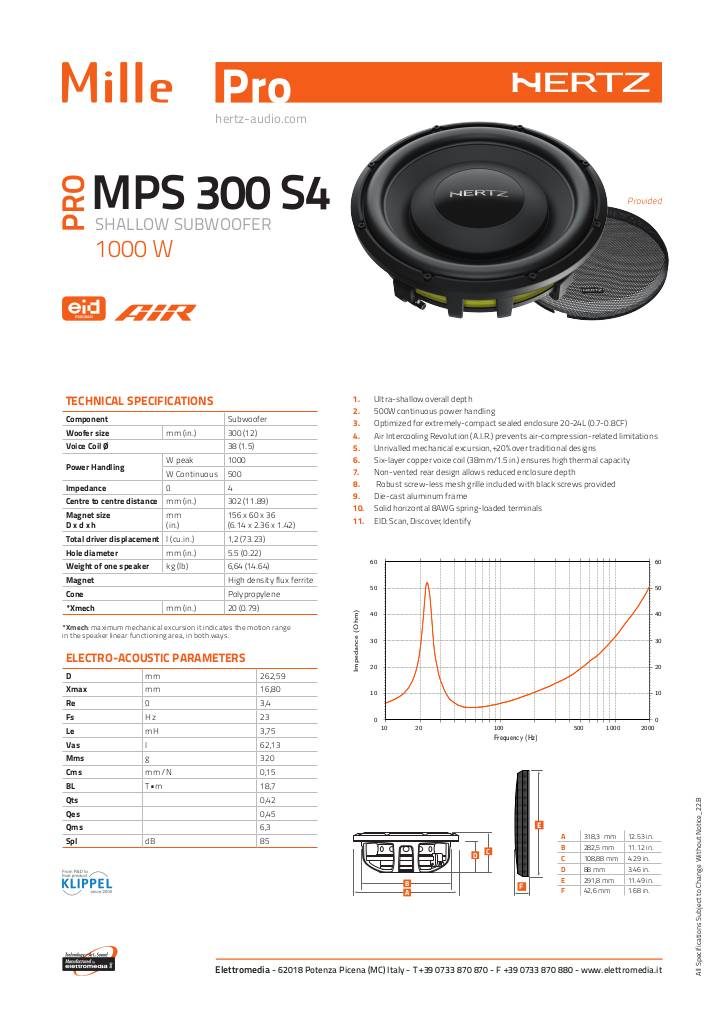

Scheda tecnica

n-20221221095844-hertz-mille-pro-techsheet-mps300-s4-revb.pdf

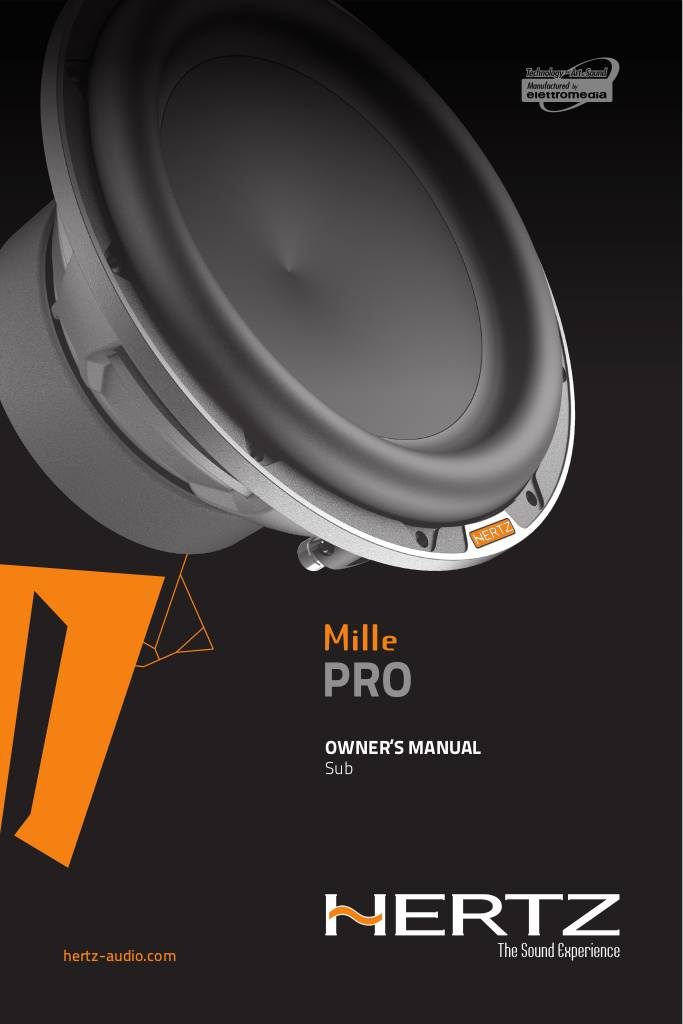

manuale e specifiche box

n-20250505094524-esec-hertz-manuale-mille-pro-sub-rev23i-xweb.pdf

Hertz MPS 300 S4 Technical Specifications

  • Size mm (inches) 300 (12)
  • Power handling - Continuous W 500
  • Power handling - Peak W 1000
  • Impedance Ohm 4
  • Depth 88 mm (3.46")
  • Voice coil type single
  • No component subwoofer filter
  • Voice coil Ø 38 (1.5")
  • Frequency response Hz 25 - 400
  • Magnet size 156 x 60 x 36 mm (6.14 x 2.36 x 1.42")
  • Component weight kg (lb.) 6.64 (14.64)
  • Magnet High density ferrite flux
  • Cone Polypropylene
  • Xmecc mm (inches) 20 (0.79)
€ 399,00 Price incl. VAT
