HT265 100mm tweeter

Ciare

Discontinued

Your price:
€ 44,50
Price per single item (VAT included)
Type
Tweeter
Speaker Size
100 mm
MAX Power
200 Watt
RMS Power
100 Watt
Frequency Response
2.500 - 20.000 Hertz
Sensitivity
89 dB
Impedance
8 Ohm
Weight
0,63 Kg
Installation Depth
26 mm
Voice Coil Diameter
25 mm

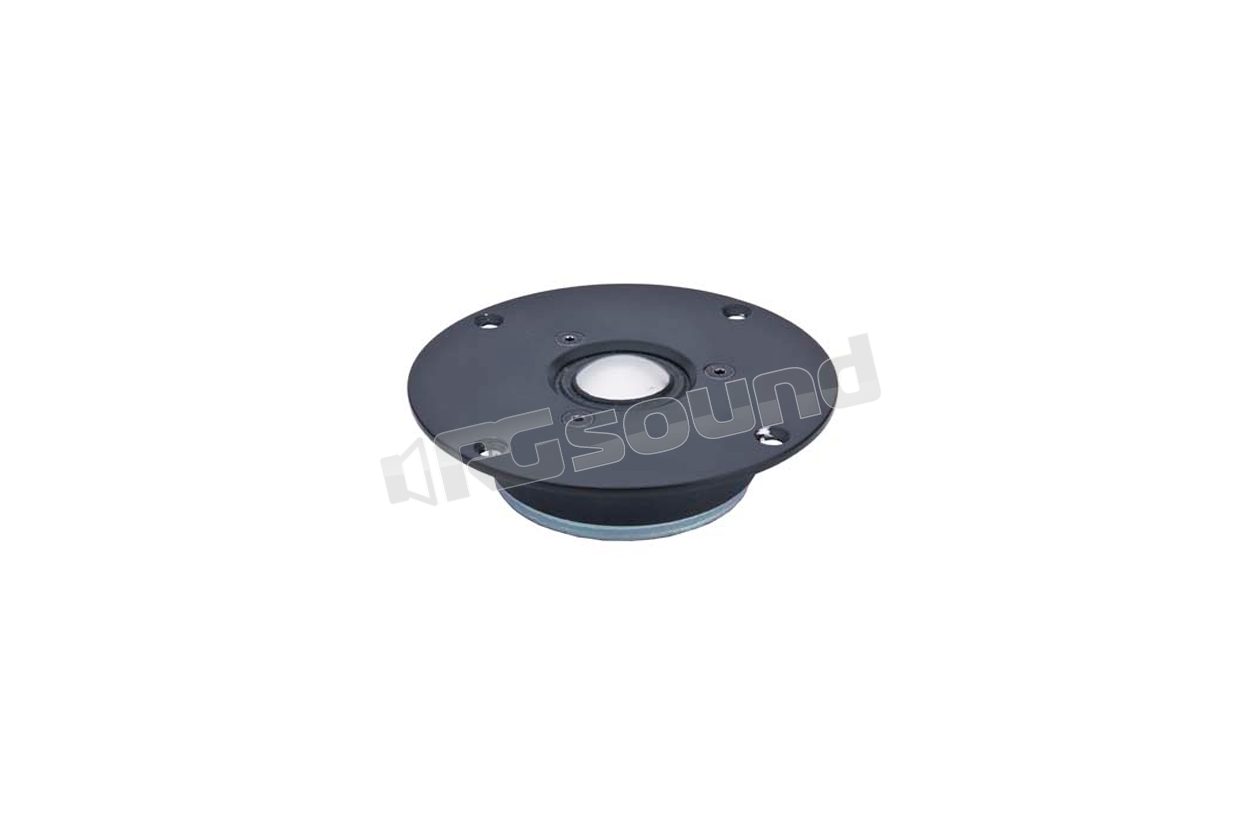

Ciare HT265 tweeter 100mm titanium dome, treated fabric suspension, aluminum flange. Ciare is a company constantly keeping pace with technological innovations and under the continuous stimulus of market requests, with absolute loyalty to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to independently manage all phases of product realization, allowing the company to achieve the highest quality standards in the realization of every component.

HT265 Features

  • Max power: 200W
  • Nominal power: 100W
  • Nominal impedance: 8Ω
  • Diameter: 110mm
  • Voice coil diameter: 25mm
  • Sensitivity 1W/1m: 89 dB
  • Frequency response 2,500-20,000 Hz
  • Recommended crossover frequency: 3,000 Hz

HT265 Materials

  • Magnet type: Ferrite
  • Suspension type: Treated fabric
  • Former type: Aluminum
  • Air gap height: 3 mm

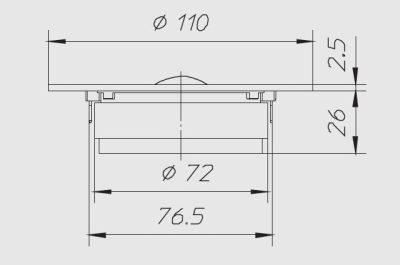

HT265 Dimensions

  • Outer diameter: 110 mm
  • Depth under flange: 26 mm
  • Flange thickness: 2.5 mm
  • Panel hole: 74 mm
  • Number of mounting holes: 4
  • Mounting hole diameter: 5 mm
  • Mounting hole position diameter: 96
  • Weight with single package: 0.63 Kg

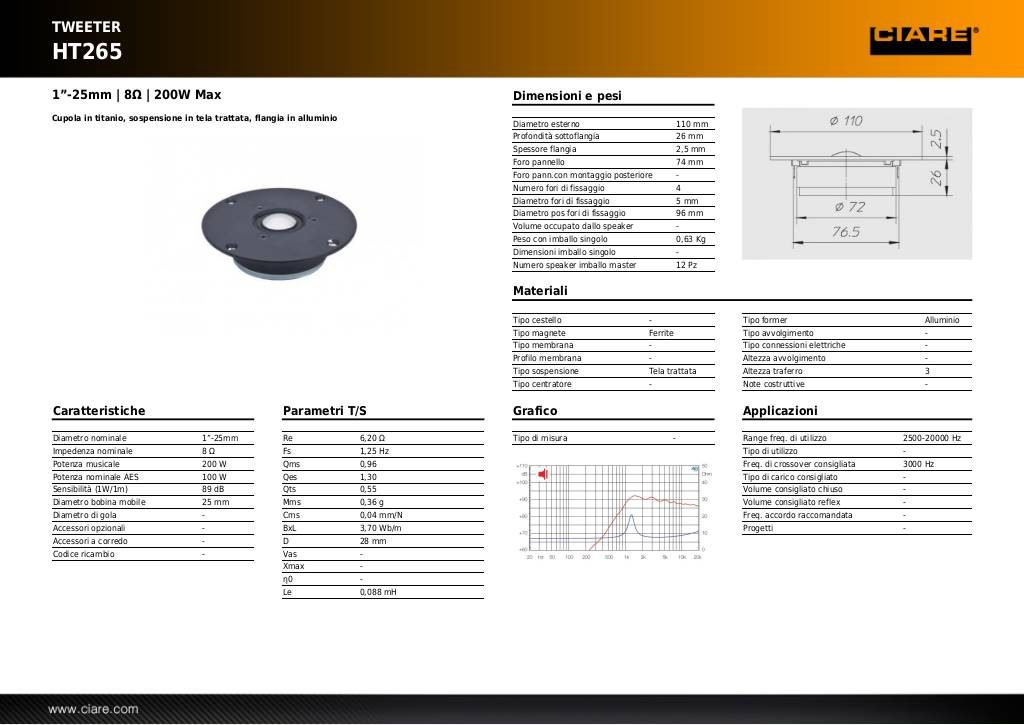

Scheda tecnica

20131031172424-ht265.pdf

1 8 Ohm speaker Ciare HT265 tweeter
