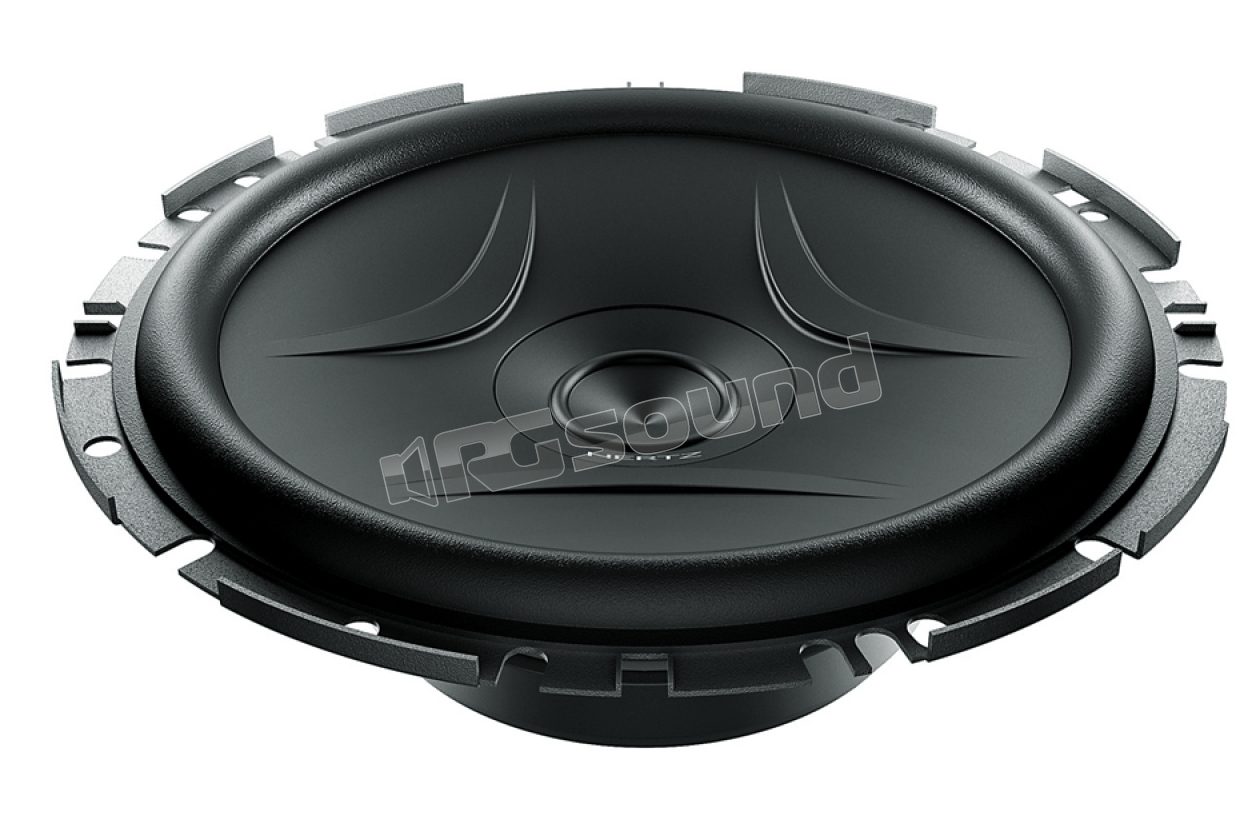

EV F165.5

Hertz

Discontinued

Your price:
€ 68,00
Price per pair (VAT included)
Type
Woofer and midwoofer
Speaker Size
165 mm
MAX Power
180 Watt
RMS Power
60 Watt
Frequency Response
65-4 Hertz
Sensitivity
93.5 dB
Impedance
4 Ohm
Weight
0.71 Kg
Installation Depth
43 mm
Woofer Material
Fibra di cellulosa

165 mm Midwoofer Energy series - Max Power 180 W

Designed for those who do not want to compromise on high performance even in limited spaces: EV F165.5 is a flat profile woofer that requires only 43 mm (2 in.) of depth for installation.


An oversized motor and a membrane with V-cone® profile stiffened with deep reinforcements on the surface, ensure linear movement of the radiating element, offering extreme control over sound reproduction.
EV F165.5 achieves and enhances two objectives: optimization of dimensions and increase in performance, without compromises.

FEATURES
1. Flat profile to facilitate replacement of factory speakers.
2. V-cone® for best off-axis response and detail in the mid-high range.
3. Cellulose fiber cone with water-repellent treatment; butyl rubber suspensions.
4. Voice coil in pure copper, wound on aluminum support, for exceptional thermal and mechanical capacity.
5. Oversized magnetic assembly for energetic control of the moving assembly.
6. Low-carbon pole plates for maximum magnetic permeability and high thermal dissipation.
7. Basket according to DIN standards, coated with anti-abrasion and scratch-resistant protective material.
8. High-current terminals, tin-plated.
9. Silver-plated braids, for maximum reliability and conductivity.
10. Basket-motor assembly coupling in epoxy glue.
11. Nomex spider with shape memory, for constant and reliable performance.



Scheda tecnica

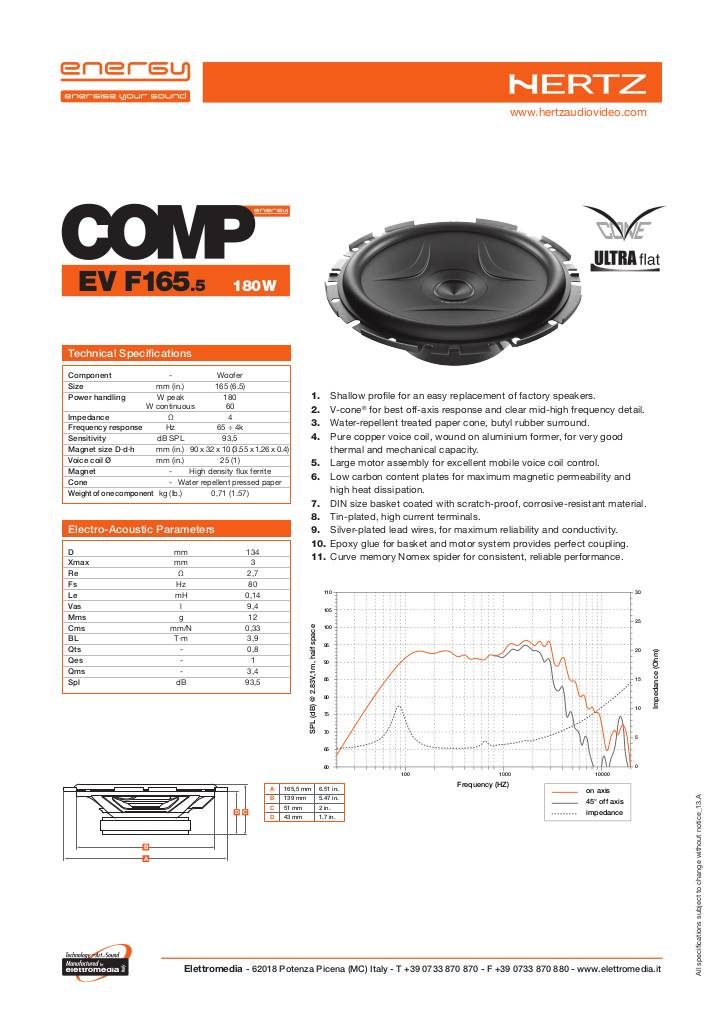

20130711171458-hertz-energy-evf165-5-tech.pdf
Discontinued
