EV 165.5

Hertz

Discontinued

Your price:
€ 68,00
Price per pair (VAT included)

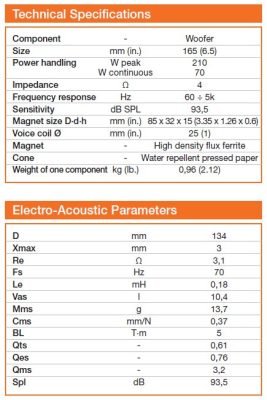

Type
Woofer and midwoofer
Speaker Size
165 mm
MAX Power
210 Watt
RMS Power
70 Watt

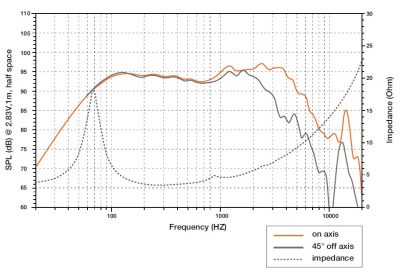

Frequency Response
60 - 5.000 Hertz
Sensitivity
93.5 dB
Impedance
4 Ohm
Weight
0.96 Kg

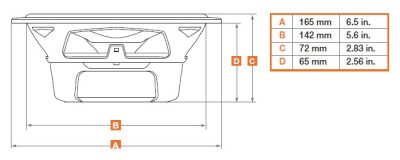

Installation Depth
65 mm
Woofer Material
Fibra di cellulosa

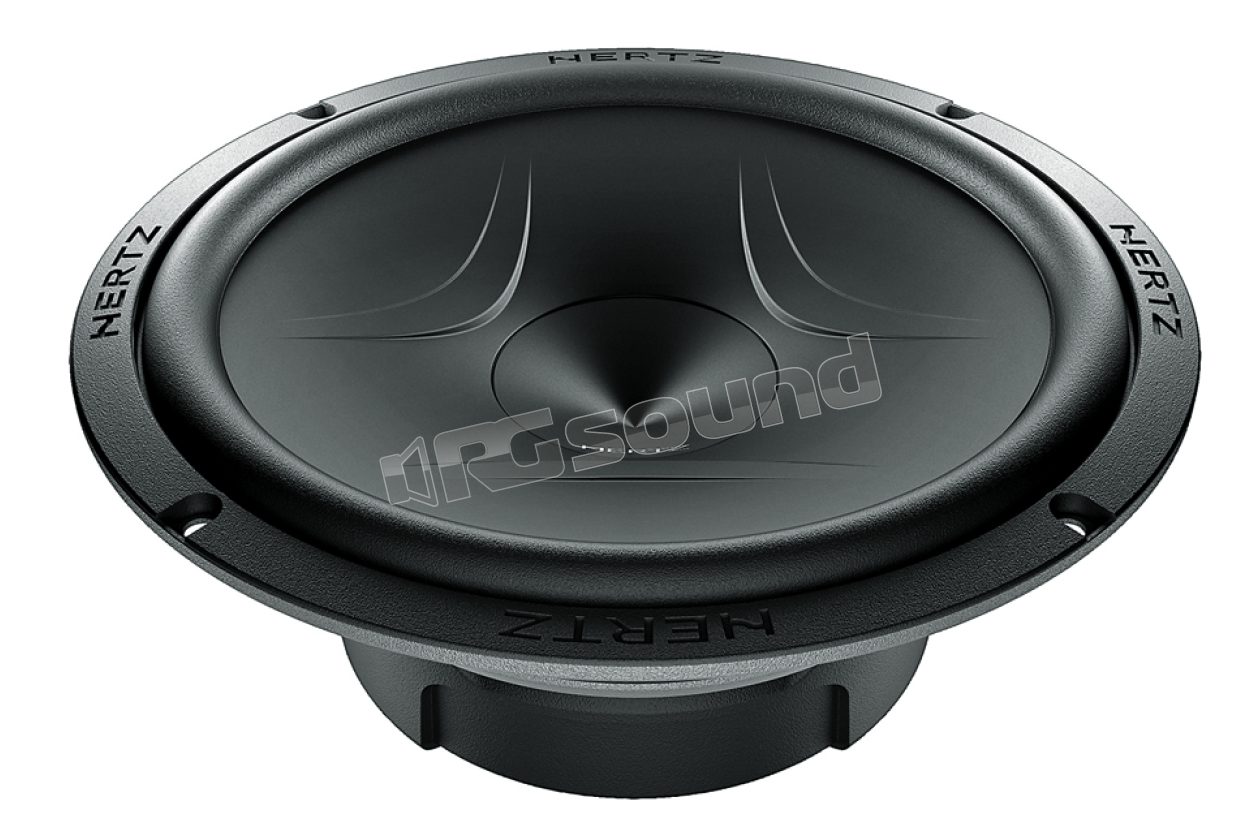

165 mm Midwoofer Energy series - Max power 210 W

The Energy.5 woofers have extreme control over sound reproduction, guaranteed by the use of an oversized motor and a membrane with V-cone® profile and stiffened with deep reinforcements, able to ensure linearity of movement.


The basket compliant with DIN standards, the lowered profile surround and compact dimensions make them easy to install in any factory system. The natural rubber protective ring performs an important anti-corrosion and anti-scratch function and ensures acoustic damping of the basket and motor system.
They offer a solid and full bass range, and a clear and dynamic midrange.

FEATURES
1. V-cone® for the best off-axis response and detail in the upper-midrange.
2. Cellulose fiber cone treated with water-repellent properties; butyl rubber suspensions.
3. Voice coil in pure copper, wound on aluminum support, for exceptional thermal and mechanical capacity.
4. Oversized magnetic group for energetic control of the moving parts.
5. Polar plates with low carbon content for maximum magnetic permeability and high thermal dissipation.
6. Magnet coated in rubber, to ensure mechanical damping of the basket and motor group, and protect it from possible abrasion and damage.
7. Basket compliant with DIN standards, coated with protective material against abrasion and corrosion.
8. High current terminals, tin-plated.
9. Silver-plated braids for maximum reliability and conductivity.
10. Basket-motor group coupling in epoxy glue.
11. Nomex spider with shape memory, for constant and reliable performance.

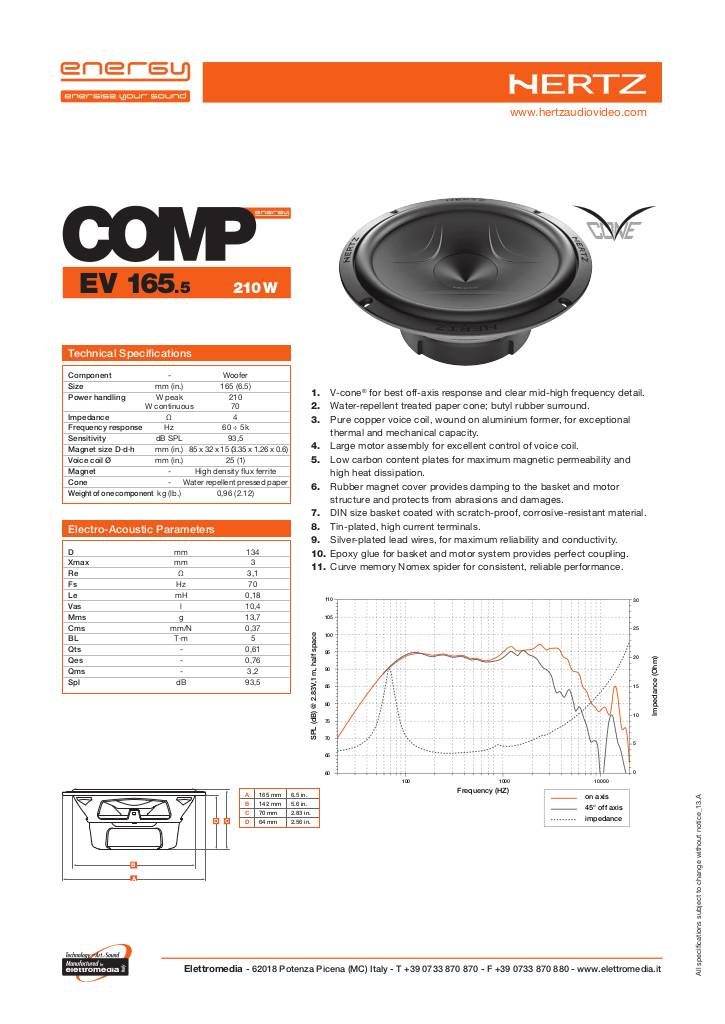

Scheda tecnica

20130711165836-hertz-energy-ev165-5-tech.pdf
Discontinued
