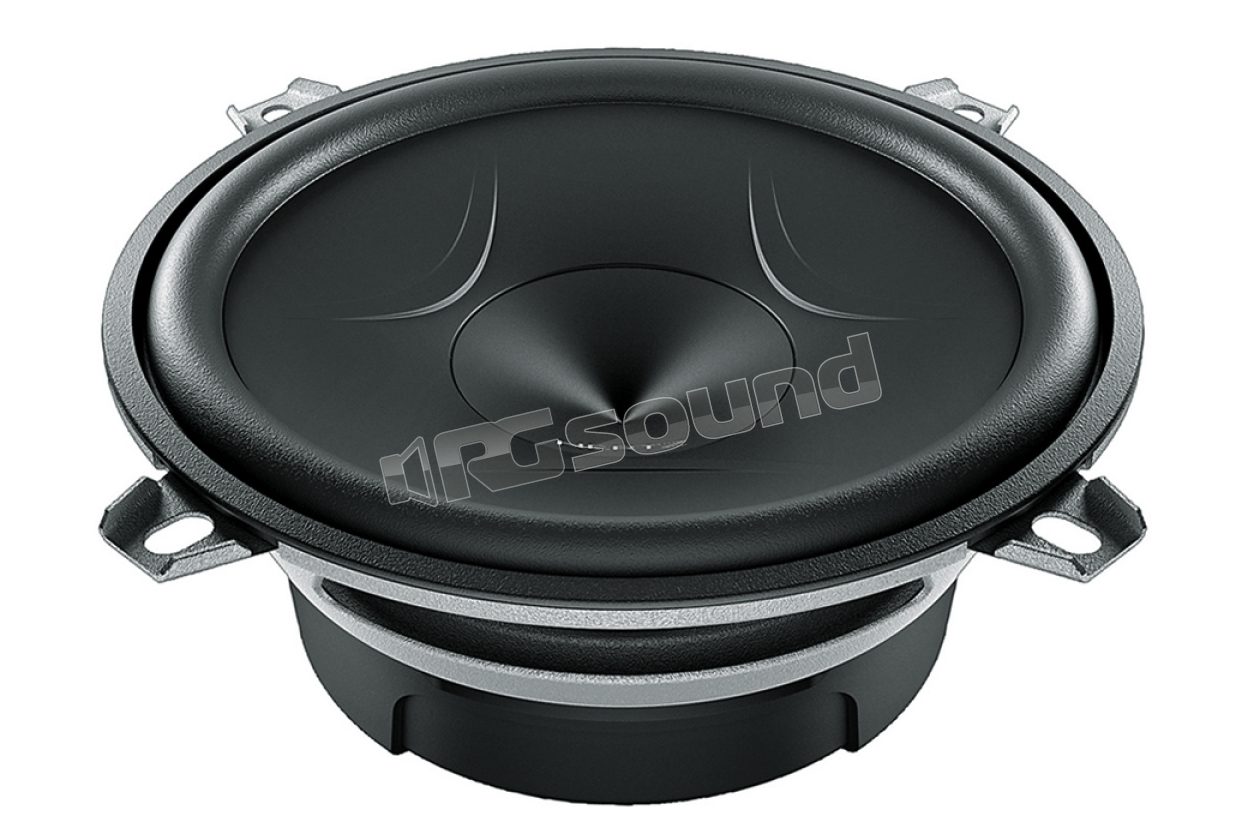

EV 130.5

Hertz

Discontinued

Your price:
€ 58,00
Price per pair (VAT included)
Type
Woofer and midwoofer
Speaker Size
130 mm
MAX Power
150 Watt
Frequency Response
70-6 Hertz
Sensitivity
93 dB
Impedance
4 Ohm
Weight
0.7 Kg

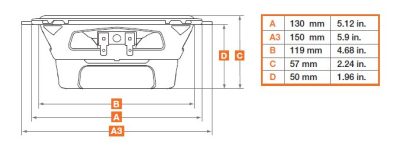

Installation Depth
50 mm
Woofer Material
fibra di cellulosa

Woofer 130 mm Energy series - Max Power 150 W

The Energy.5 woofers have extreme control over sound reproduction, guaranteed by the use of an oversized motor and a membrane with V-cone® profile and reinforced with deep stiffeners, capable of ensuring movement linearity.


The basket in DIN standard, the recessed profile surround and the compact dimensions make them easy to install in any factory system. The natural rubber protection ring performs an important anti-corrosion and anti-scratch function and ensures acoustic damping of the basket and motor system.
They offer a solid and full bass range, and a clear and dynamic midrange.

FEATURES

1. V-cone® for the best off-axis response and detail in the mid-high range.
2. Cellulose fiber cone treated with water-repellent coating; rubber butyl suspensions.
3. Moving coil in pure copper, wound on aluminum support, for exceptional thermal and mechanical capacity.
4. Oversized magnetic group for energetic control of the mobile assembly.
5. Low-carbon pole plates for maximum magnetic permeability and high thermal dissipation.
6. Magnet coated in rubber, to ensure mechanical damping of the basket and motor group, and protect it from possible abrasion and damage.
7. Basket in DIN standard, coated with protective material against abrasion and corrosion.
8. High-current terminals, tin-plated.
9. Silver-plated straps for maximum reliability and conductivity.
10. Basket-motor group coupling in epoxy glue.
11. Nomex spider with shape memory, for constant and reliable performance.

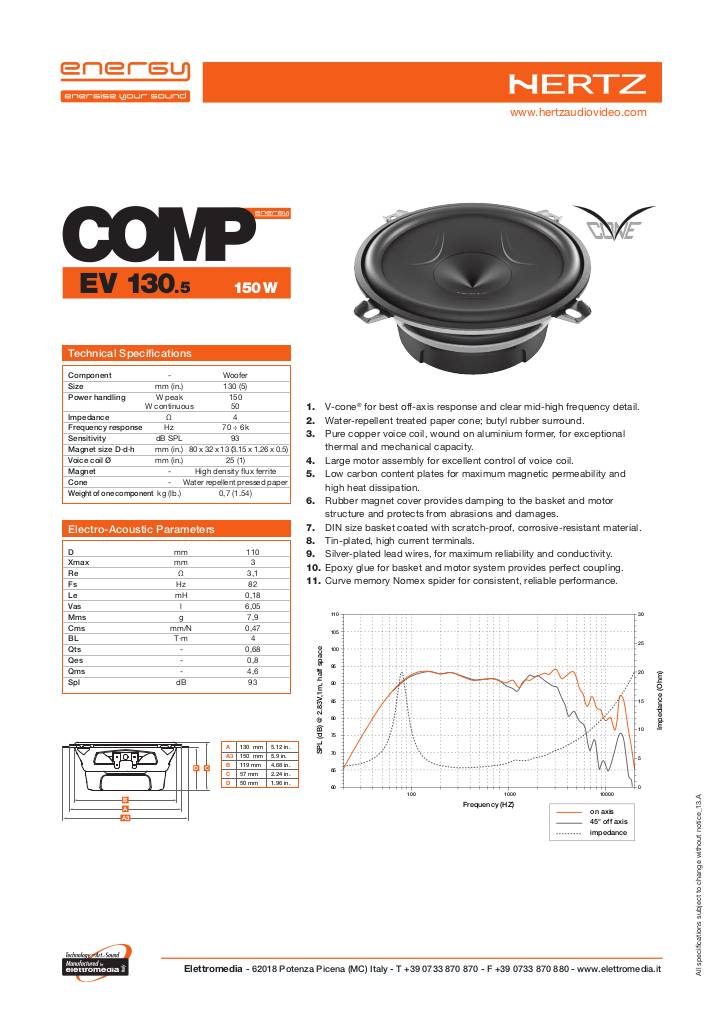

Scheda tecnica

20130711165433-hertz-energy-ev130-5-tech.pdf
Discontinued
