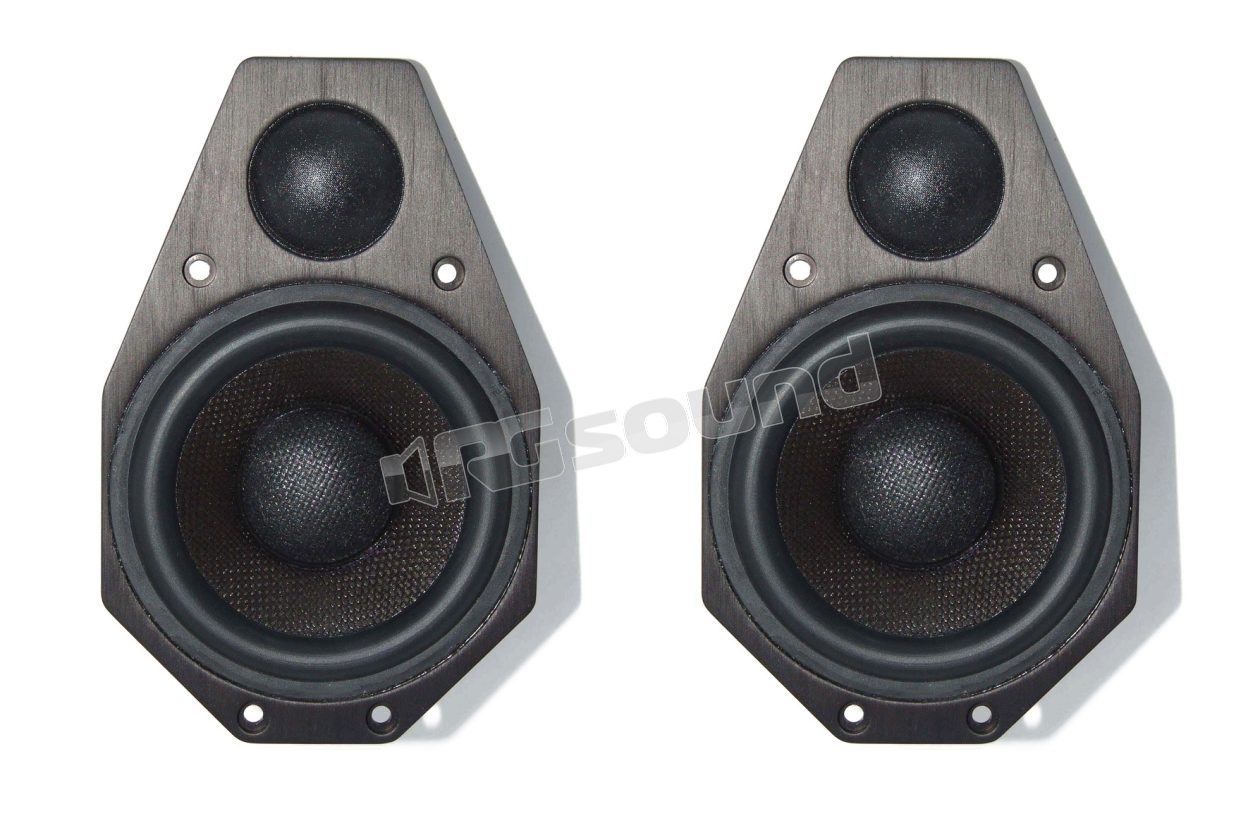

ESA SAT old model midrange-tweeter kit for A-pillar or dashboard

AD Audio Development

Discontinued

Your price:
€ 494,10
Price per pair (VAT included)
Type
2-way separate kit
Woofer Size
70 mm
Tweeter Size
26 millimetri
MAX Power
70 Watt
Sensitivity
91 dB
Impedance
3 Ohm
Woofer Material
Fibra di vetro
Tweeter Material
Alluminio, Neodimio e Rame

AD ESA SAT mid-high kit that combines the advantages of the ESA MID midrange + the dedicated tweeter, allowing installation on the dashboard or pillar with a single emission point.

The two components have been designed to take advantage of very simple filtering, achieving a very linear frequency response.

The tonal characteristics and performance are of the highest level, positioning it among the top products in our line.

We recommend passive filtering using a high-pass amplifier (circuit diagram of the recommended filter available upon request).

ESA SAT TECHNICAL CHARACTERISTICS

Midrange
CONE: Double-layer fiberglass with rubber suspension.
VOICE COIL: OFC copper voice coil on aluminum support (diam. 26 mm).
BASKET: Modular aluminum alloy with polymer decoupling posts.

Tweeter
DOME: 26mm diameter in silk.
VOICE COIL: OFC copper wound on aluminum support (diam. 25 mm).
MAGNET: Neodymium, magnetized with AD internal procedure.

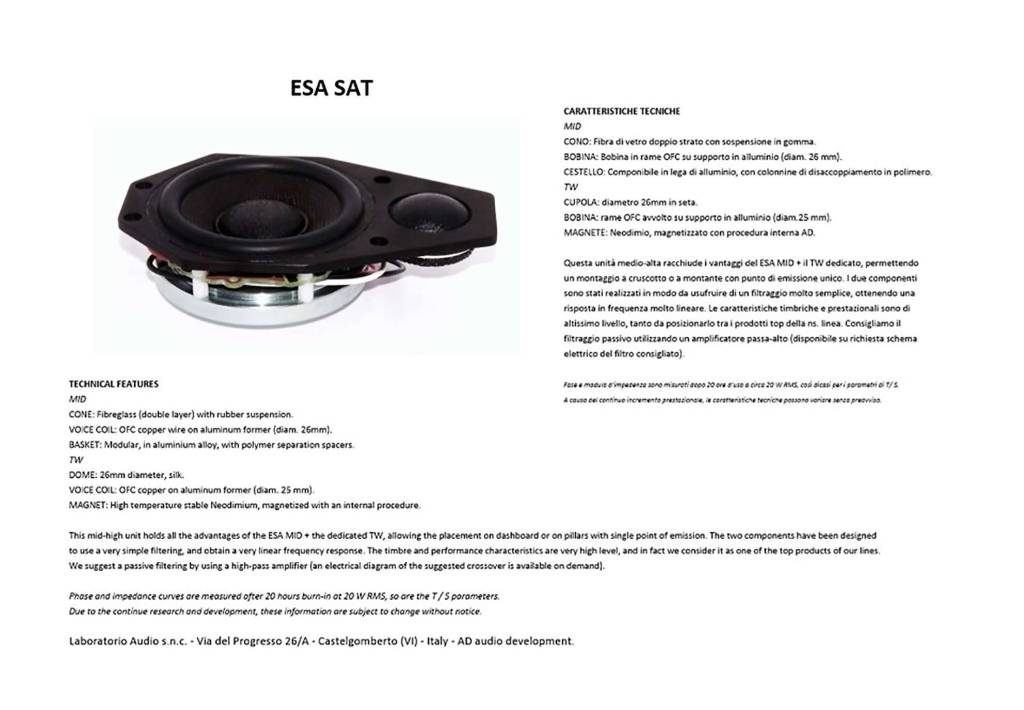

Scheda tecnica

n-20180705165101-esa-sat.pdf

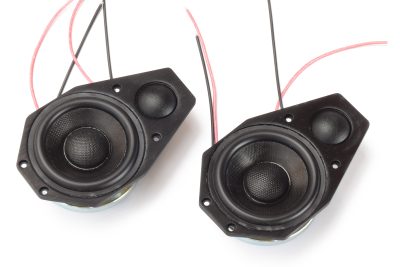

Pair of two-way separate speakers ESA SAT
Discontinued
