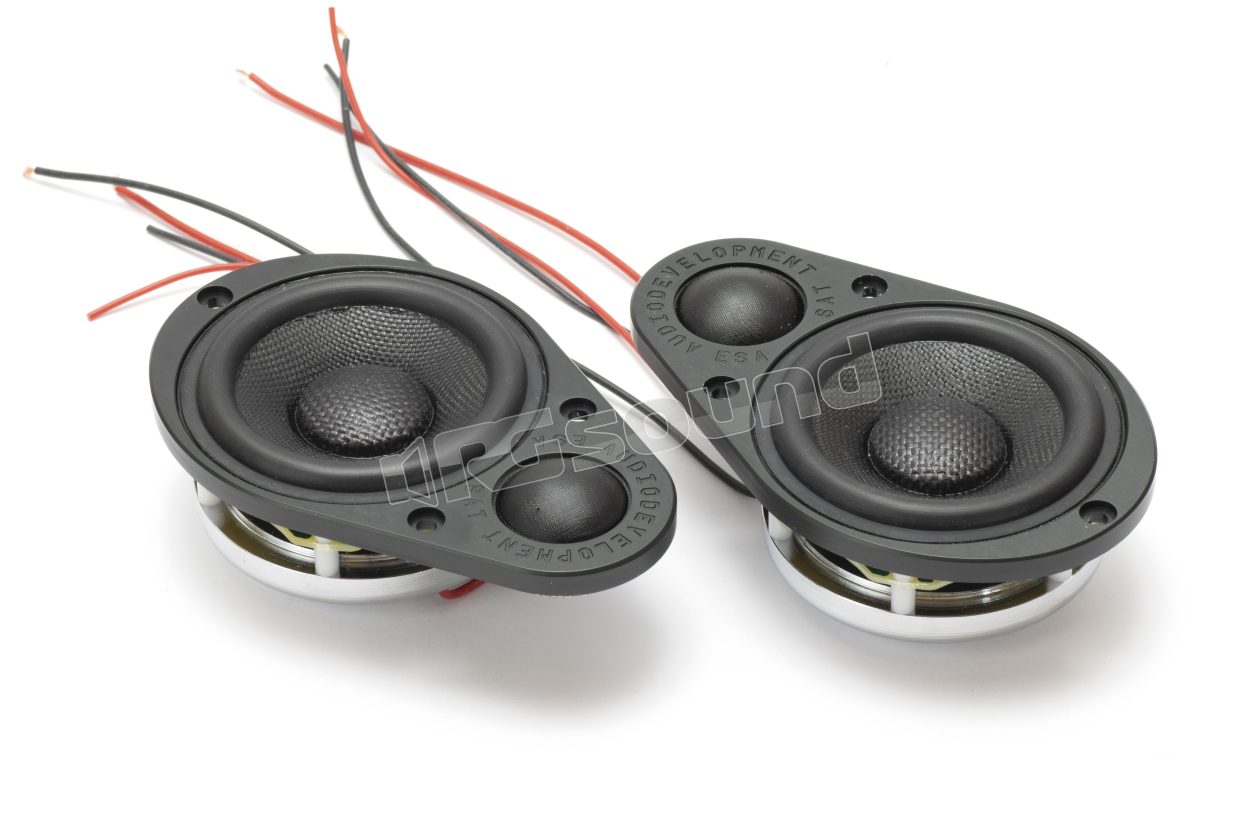

ESA SAT Hi-end mid-high unit for A-pillar or dashboard

AD Audio Development
Your price:
€ 528,00
Price per pair (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
2-way separate kit
Woofer Size
70 mm
Tweeter Size
26 millimetri
MAX Power
70 Watt
Sensitivity
91 dB
Impedance
3 Ohm
Woofer Material
Fibra di vetro
Tweeter Material
Alluminio e cupola in seta

AD Audio Development ESA SAT Mid-High Kit High-End

The ESA SAT is a mid-high kit that combines the ESA MID midrange and a dedicated tweeter, designed to offer a single emission point in pillar or dashboard installations. This system was developed to guarantee linear frequency response and tonal performance at the highest level, positioning it among the top products in the AD Audio Development line.

ESA SAT Components

ESA MID

  • Diameter: 80 mm
  • Cone material: Double-layer fiberglass with rubber suspension
  • Coil: OFC copper on aluminum support (26 mm)
  • Frequency response: 90 - 7,000 Hz
  • Sensitivity: 86 dB
  • Impedance: 3 Ohm
  • Maximum power: 70 W
  • Installation depth: 32.3 mm

ESA TW

  • Diameter: 26 mm
  • Dome material: Treated silk
  • Coil: OFC copper on aluminum support (25 mm)
  • Magnet: Neodymium magnetized with AD internal procedure

Why Choose AD

All AD Audio Development products are handcrafted in Italy. Every component is built by hand by industry experts, using the highest quality materials and advanced technologies to guarantee exceptional sound performance and reliability over time.

The brand's philosophy is based on production that allows rigorous quality control and constructive care that is rarely found in industrial products. AD components can be compared, in terms of performance and construction, to higher-end models, often sold at significantly higher prices.

Choosing AD Audio Development means buying an artisanal hi-fi product, 100% made in Italy, with an unbeatable quality-to-price ratio for those seeking maximum performance without compromises.

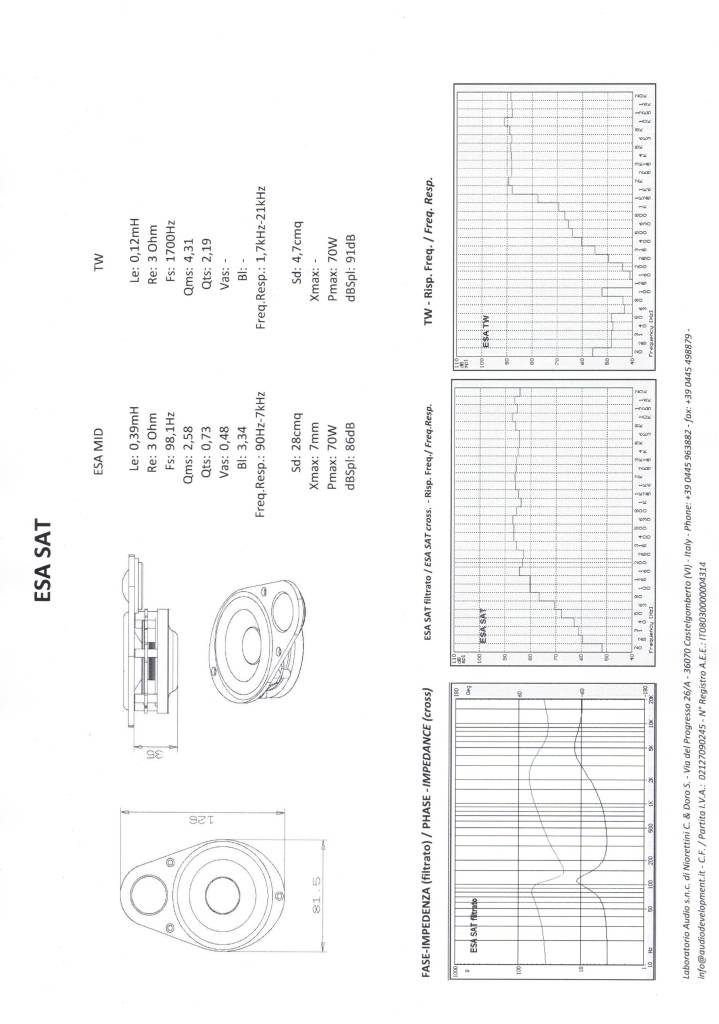

Scheda tecnica

n-20210917120249-esa-sat-new.pdf

AD Audio Development ESA SAT Technical Specifications

ESA MID

  • Maximum power 70 W
  • dB SPL 86
  • Frequency response 90 - 7000 Hz
  • Re 3 Ohm
  • Xmax 7 mm
  • Fs 98.1 Hz
  • Vas 0.48
  • Qts 0.73
  • Qms 2.58
  • Le 0.39 mH

ESA TW

  • Maximum power 70 W
  • dB SPL 91
  • Frequency response 1.7 - 21 kHz
  • Re 3 Ohm
  • Fs 1700 Hz
  • Qts 2.19
  • Qms 4.31
  • Le 0.12 mH
