ES100K 10 cm two-way component kit

Focal

Discontinued

Your price:
€ 399,00
Price per single item (VAT included)
Type
2-way separate kit
Frequency Response
110 - 22.000 Hertz
Woofer Size
100 mm
MAX Power
120 Watt
RMS Power
60 Watt
Sensitivity
90 dB
Impedance
4 Ohm
Woofer Material
Cono Kevlar
Tweeter Material
Cupola in fibra aramide

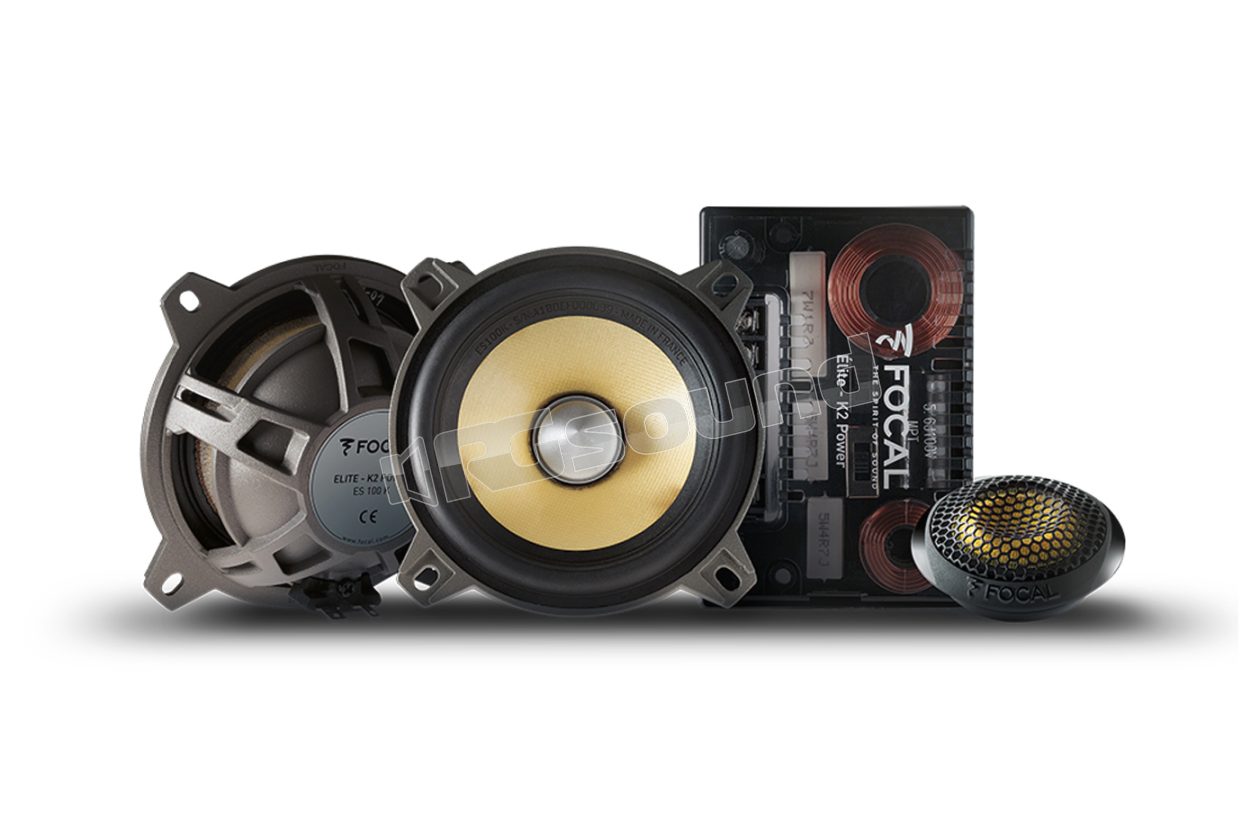

Focal ES 100 K two-way K2 Power series kit composed of a pair of 100mm woofers with Kevlar cone, pair of tweeters, pair of inverted dome tweeters and dedicated crossovers. Rated power 60W RMS, speaker grilles included in the package.

Focal ES 100 K system features

The speakers of the K2 Power line are equipped with Kevlar cones that incorporate all the ideal qualities for excellent sound reproduction, they are light but rigid and with excellent damping to offer dynamic sound and perfect definition. The cones are fixed to the frame by TMD suspensions whose exclusive design removes unwanted resonances and reduces the effects of distortion.

The two inverted dome tweeters TKM are composed of aramid fibers. Their exclusive "M" profile is designed to control dome deformation and accurately reproduce high frequencies up to 22 kHz. The frames have been redesigned to make them more robust and more compact, their depth has been reduced as much as possible to 74 mm (3"). These tweeters are equipped with built-in crossover.

Every component of the K2 Power speakers is the result of extensive acoustic research to increase power and precision performance.

KEVLAR® cone precision and dynamics

The K2 Power Kevlar® cone, a unique Focal Made In product, is to this day second to none. Composed of an expanded sandwich structure, ultra-lightweight, which combines a thin layer of Kevlar® aramid fibers and a fiberglass layer.

"M" tweeter shape for precise and soft highs

The new K2 Power TKM tweeter is equipped with an exclusive "M" shaped structure. This new generation inverted dome tweeter in aramid fiber provides high precision, and its combination with the "push-pull" motor with IAL2 technology increases the frequency response extension and provides extraordinary harmonic balance.

TMD suspensions goodbye to distortion

Initially developed for high fidelity speakers, the TMD (Tuned Mass Damper) suspension features a special structure designed to control unwanted resonances and drastically reduce harmonic distortion caused by the stress to which the cone is subjected. This patented technology provides a well-defined midrange reproduction.

"Radial VC" cooling system for greater SPL

The new radial VC cooling system for speaker voice coils expels hot air from the voice coil towards the bottom of the magnet through 6 holes. This improves temperature control on the voice coil, limiting the effects of thermal compression and improving reliability. This greatly increases speaker efficiency. Furthermore, it improves dynamics and produces more powerful sound.

Technical specifications Focal ES 100 K

Diameter 100 mm (4″)

Voice coil diameter 20 mm (0-13/16")

Voice coil height 8.5 mm (0-1/3″)

Woofer installation depth 39 mm

Sandwich cone

Tuned Mass Damper (TMD) suspensions

TKM tweeter ("M" profile inverted dome)

adjustable tweeter +3; 0; -3 dB/oct

Crossover 12/12dB (3.5kHz)

Maximum power 120 W

Rated power 60 W RMS

Sensitivity (2.83V/1m) 90 dB

Frequency response 110Hz - 22 kHz

Impedance 4 Ω

Grilles included in the package

Scheda tecnica

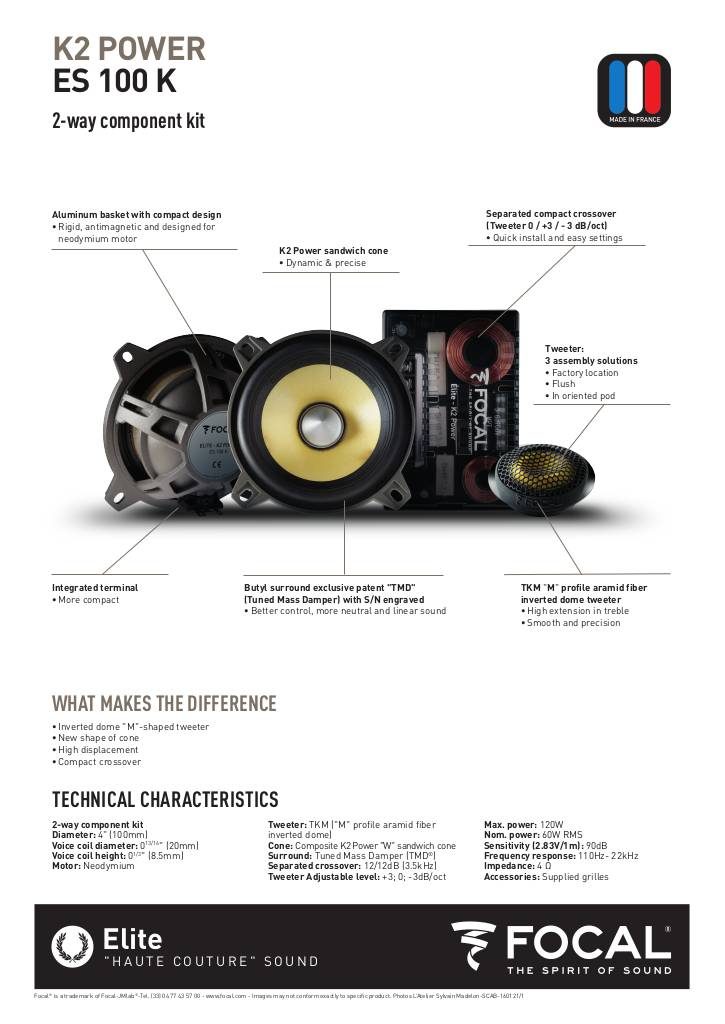

20160428122018-fp-k2power-es100k-gb.pdf

Caratteristiche woofer

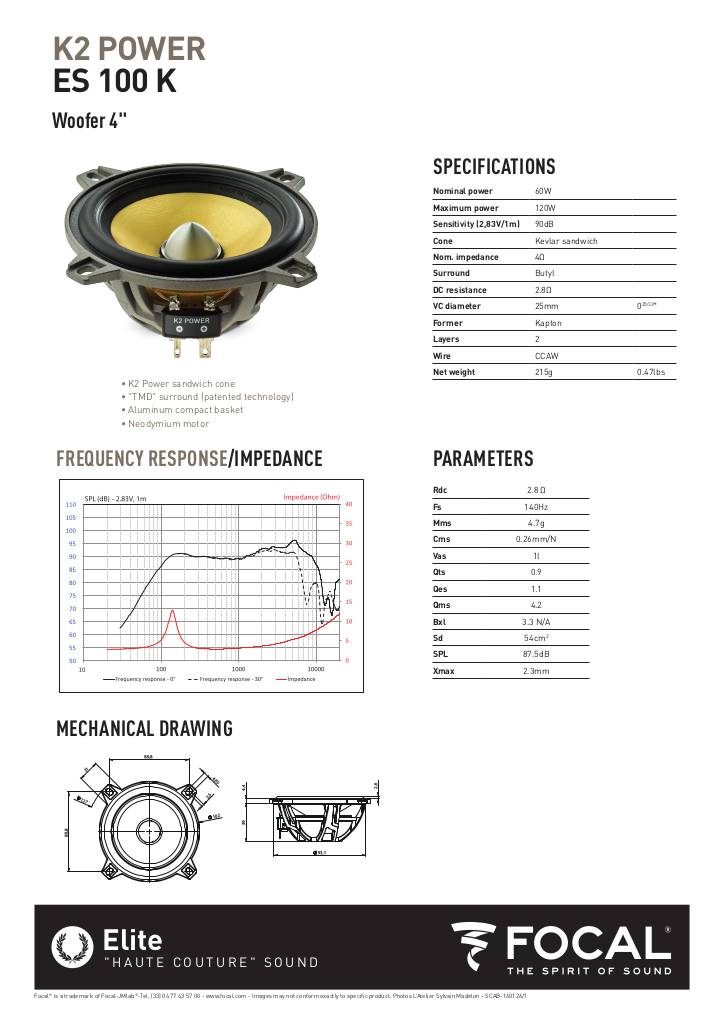

20160428122018-ft-k2power-es100k.pdf
Discontinued
