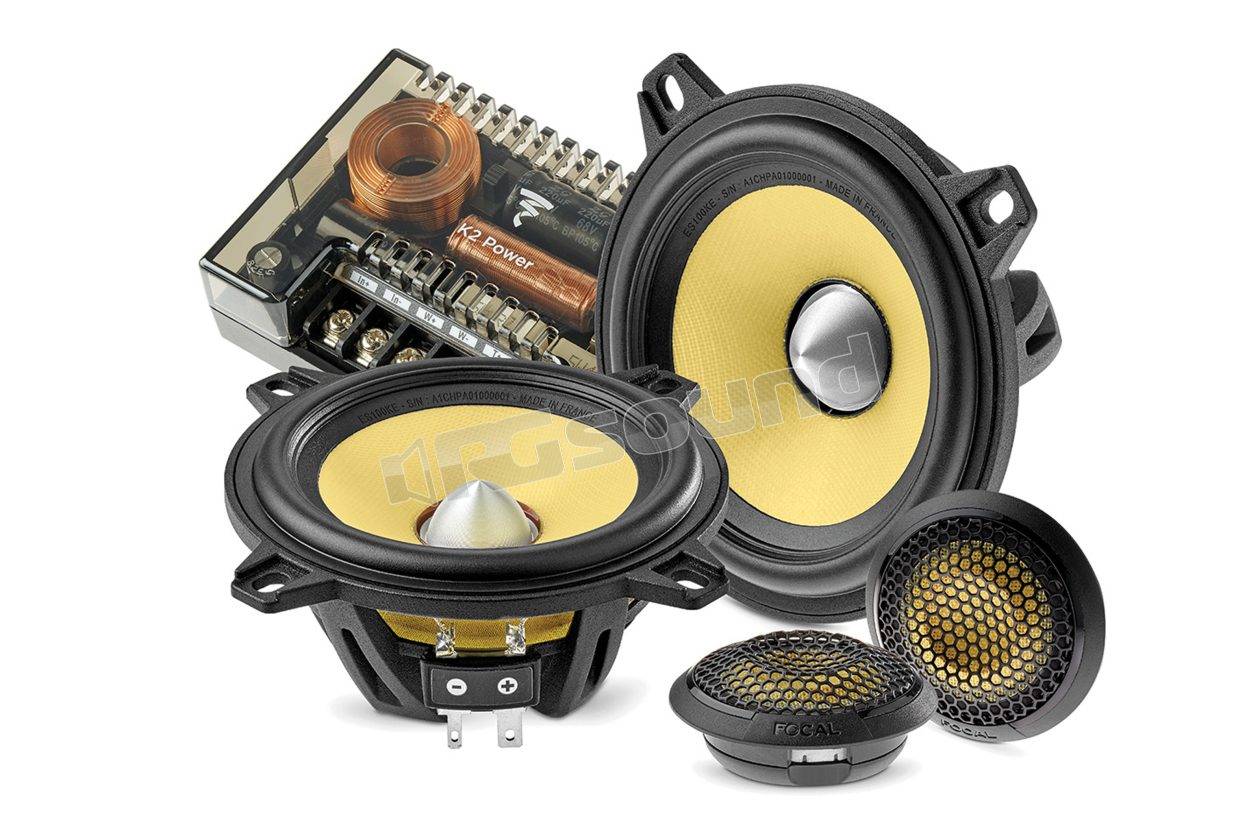

ES 100 KE 10 cm 2-way component kit

Focal
Your price:
€ 449,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
2-way separate kit
Frequency Response
110 - 22000 Hertz
Woofer Size
100 mm
MAX Power
120 Watt
RMS Power
60 Watt
Sensitivity
90 dB
Impedance
4 Ohm

Focal ES100K EVO 2-way separate kit 10 cm

The ultra-compact ES100K EVO kit is extremely sensitive for such a small package. It adapts to all configurations and all types of vehicle interiors.
The speakers are equipped with K2 cone, Focal's iconic yellow innovation, which combines lightness, rigidity and damping. These ingredients guarantee dynamic sound with incredible definition. The central ogive cones, on the other hand, help to better disperse the sound inside the cabin.
The TKME tweeter is the perfect and natural companion to the midrange frequencies, to obtain extremely soft highs.

Also made of aramidic fibers, their inverted domes have an exclusive "M" profile that improves control of cone distortions, thus limiting distortion. The kits enjoy a very compact crossover, which facilitates installation and adjustments inside the vehicle. Furthermore, for custom installation, the TKME tweeters can be mounted in factory seats, flush or on angular brackets.
The kit also includes aluminum grilles.

ES100K EVO Features

  • Manufactured in France in Focal laboratories
  • K2 cone
  • Robust design and high quality materials
  • Exceptional power handling
  • Aluminum grilles included

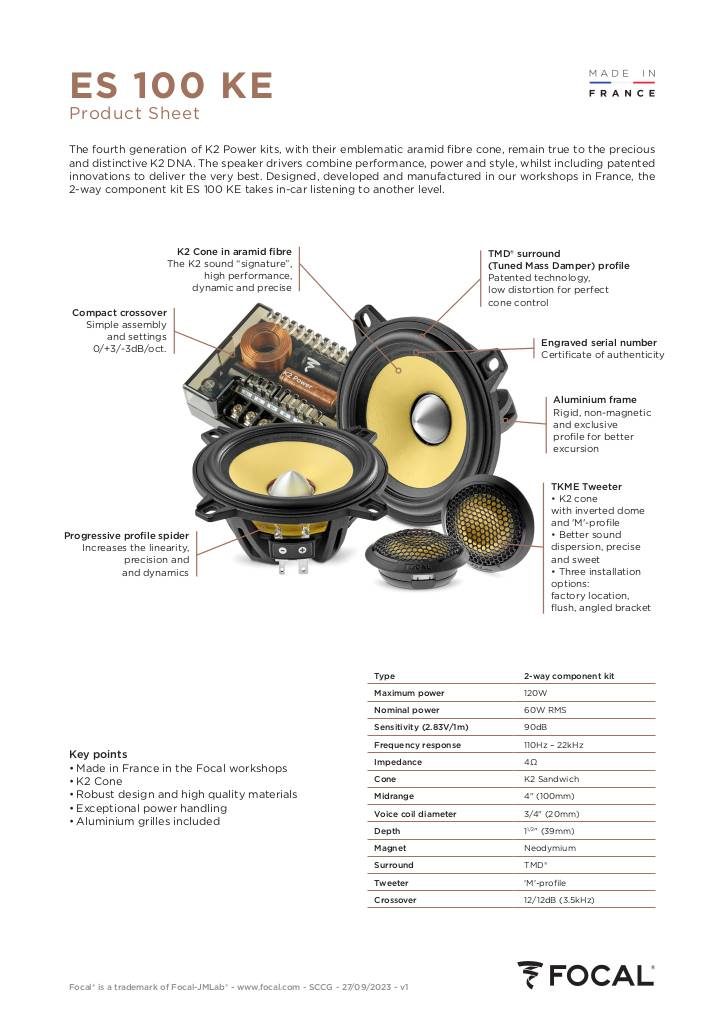

Scheda

n-20240219162753-fp-es-100-ke-en.pdf

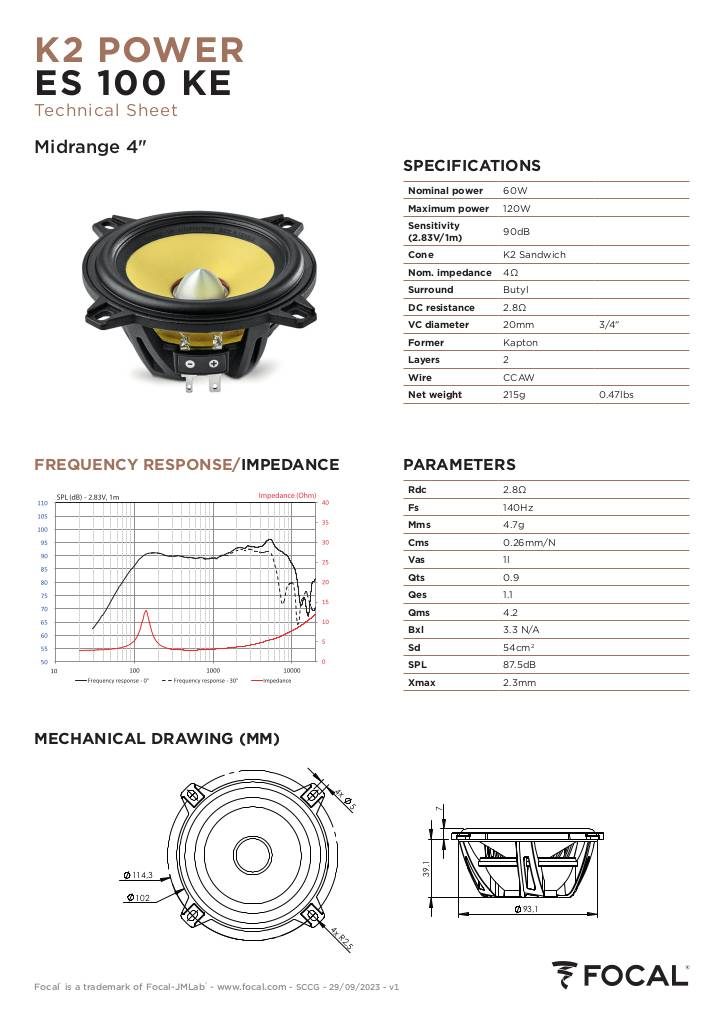

Midrange

n-20240219162753-ft-es-100-ke.pdf

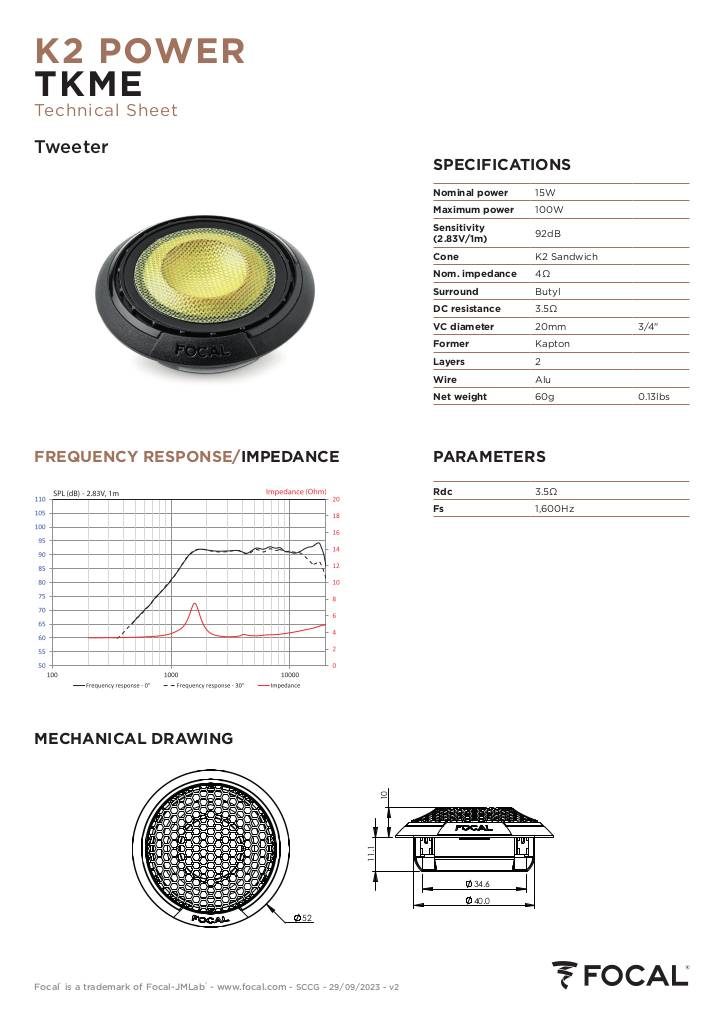

Tweeter

n-20240219162753-ft-tweeter-tkme.pdf

Focal ES 100 KE Technical Specifications

  • Type 2-way component kit
  • Maximum power 120W
  • Nominal power 60W RMS
  • Sensitivity (2.83V/1m) 90dB
  • Frequency response 110Hz - 22kHz
  • Impedance 4Ω
  • K2 Sandwich cone
  • Midrange 4" (100 mm)
  • Voice coil diameter 3/4" (20 mm)
  • Depth 11/2" (39 mm)
  • Neodymium magnet
  • Surrounded by TMD
  • Tweeter with "M" profile
  • Crossover 12/12dB (3.5kHz)

Midrange

  • Nominal power 60W
  • Maximum power 120W
  • Sensitivity (2.83V/1m) 90dB
  • K2 Sandwich cone
  • Nominal impedance 4Ω
  • Butyl surround
  • DC resistance 2.8Ω
  • VC diameter 20 mm 3/4
  • Kapton layer
  • Layers 2
  • CCAW wire
  • Net weight 215 g 0.47 lbs

Tweeter

  • Nominal power 15W
  • Maximum power 100W
  • Sensitivity (2.83V/1m) 92dB
  • K2 Sandwich cone
  • Nominal impedance 4Ω
  • Butyl surround
  • DC resistance 3.5Ω
  • VC diameter 20 mm 3/4
  • Kapton layer
  • Layers 2
  • Alu wire
  • Net weight 60g 0.13lbs
€ 449,00 Price incl. VAT
