ELATE MW9 High-end 20cm Titanium woofer

Morel

Discontinued

Your price:
€ 409,00
Price per single item (VAT included)
Type
Woofer and midwoofer
Speaker Size
200 mm
MAX Power
1000 Watt
RMS Power
200 Watt
Frequency Response
25 - 3.000 Hertz
Sensitivity
89 dB
Impedance
4 Ohm
Weight
1,18 Kg
Installation Depth
71 mm
Woofer Material
DPC

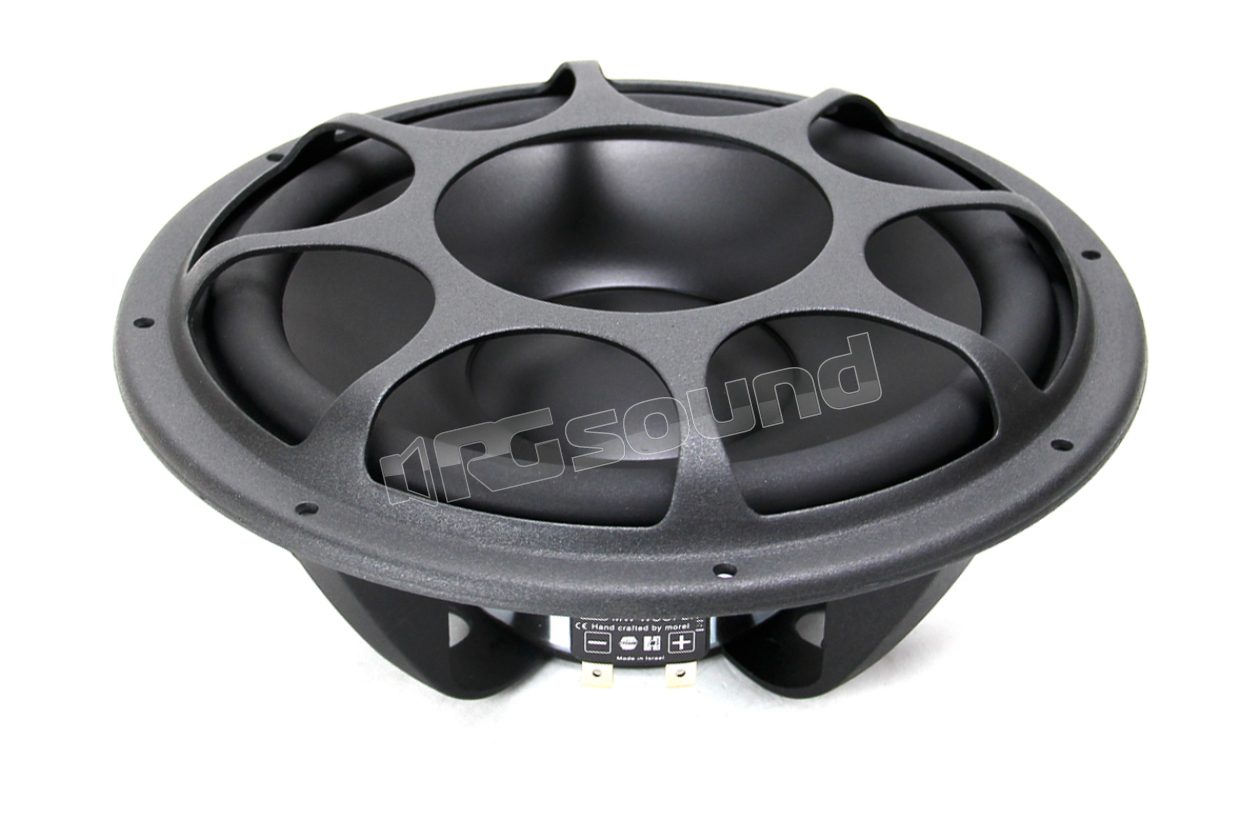

ELATE MW9 MOREL high-end woofer 200 mm
The Morel Elate line has been recognized as an icon for hi-fi systems. Morel's R&D (Research & Development) designed this series to combine precision and high sound power.

The Elate Titanium woofers feature a new titanium voice coil (previous moving coil) created to produce fast transient response that aligns with the acoustic challenges of the car, allowing woofers to match different enclosures for different car doors. The woofers continue to use the Morel™ C.A.R filter and the 3 inch EVC™ with Hexatech™ technology.

Specifications ELATE MW9:

  • Nominal Impedance: 4 Ohms
  • Power Handling: 200Wrms
  • Max. Trans.Pwr Handling: 1000Wrms
  • Sensitivity (2.83V/1M): 89dB
  • Frequency Response: 25-3000 Hz
  • Resonant Freq. Fs:38 Hz
  • Voice Coil Diameter: 75 mm
  • Voice Coil Height: 0.57in (14.50mm)
  • Voice Coil Type/ Former: Aluminum
  • Voice Coil Wire: Hexatech Aluminum
  • DC Resistance: 3.6 Ohms
  • Voice Coil Induct. @1 kHz: 0.43 MH
  • Magnet System: Double Magnet Rear Vented
  • HE-Magnetic Gap Height: 5 mm (0.20")
  • B-Flux Density (T.M.): 0.74
  • BL Product/BXL: 5.8
  • Max. Linear Ex./Xmax: ±4.7in (±0.18mm)
  • Suspension Compliance CMS - mm/N: 0.45
  • Electrical Q Factor QES: 0.96
  • QTS: 0.69
  • QMS: 2.4
  • Mech.Resistance RMS - Ohm/meter: 3.63
  • Moving Mass MMS - gr: 34
  • Equiv. Can Air Load VAS: 38.50L (1.35cu.ft)
  • Effective Piston Area SD: 219sq.cm (39.95sq. inch)
  • Cone Type: One-piece formed
  • Cone Material: DPC
  • Unit Diameter: 222 mm (6.5")
  • Mounting Depth: 71 mm (2.4")
  • Mounting Cutout: 192 mm (5.55")
  • Net Weight: 1.18 Kg

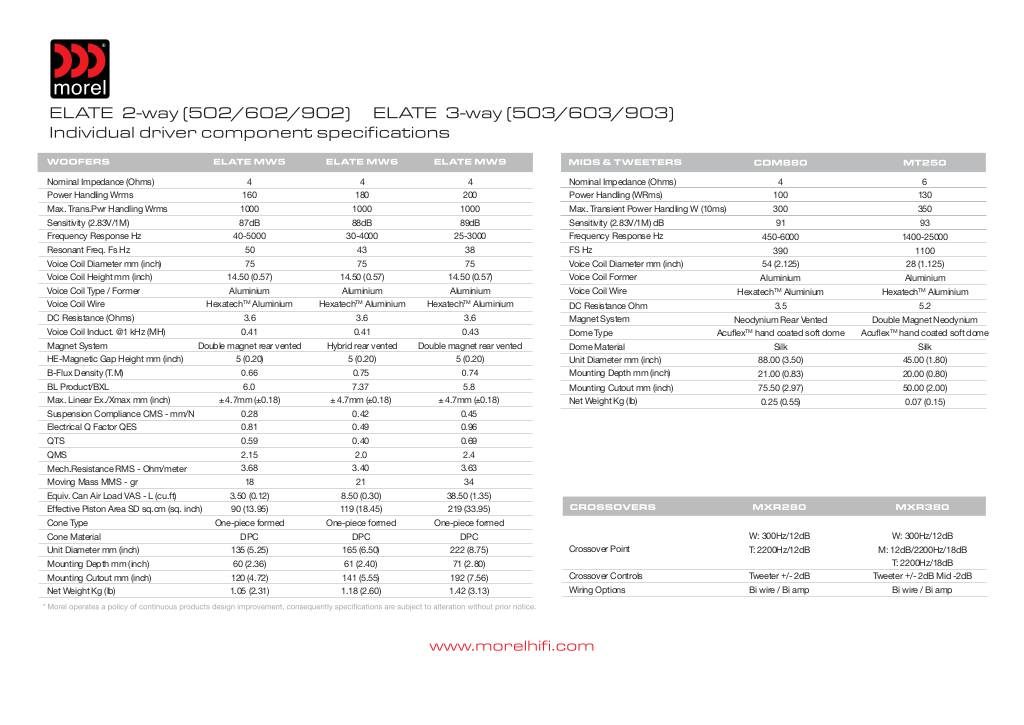

Scheda tecnica

20131017130242-elate-modified-spec.pdf

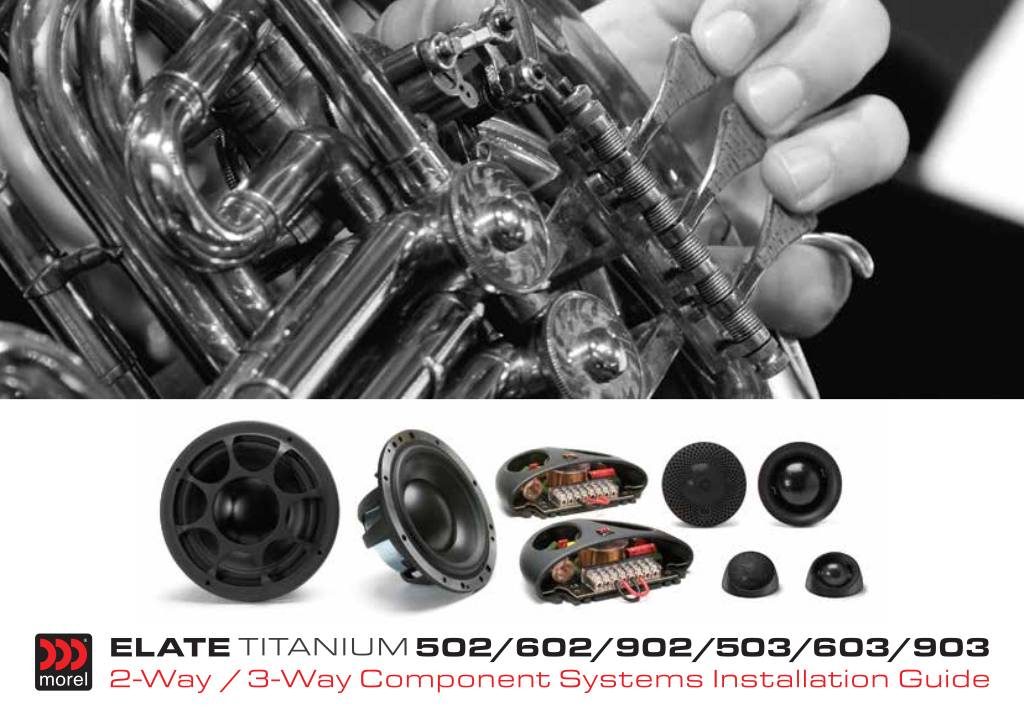

Manuale utente

20160222124607-elate-titanium-manual-10-7-14-low-res.pdf
