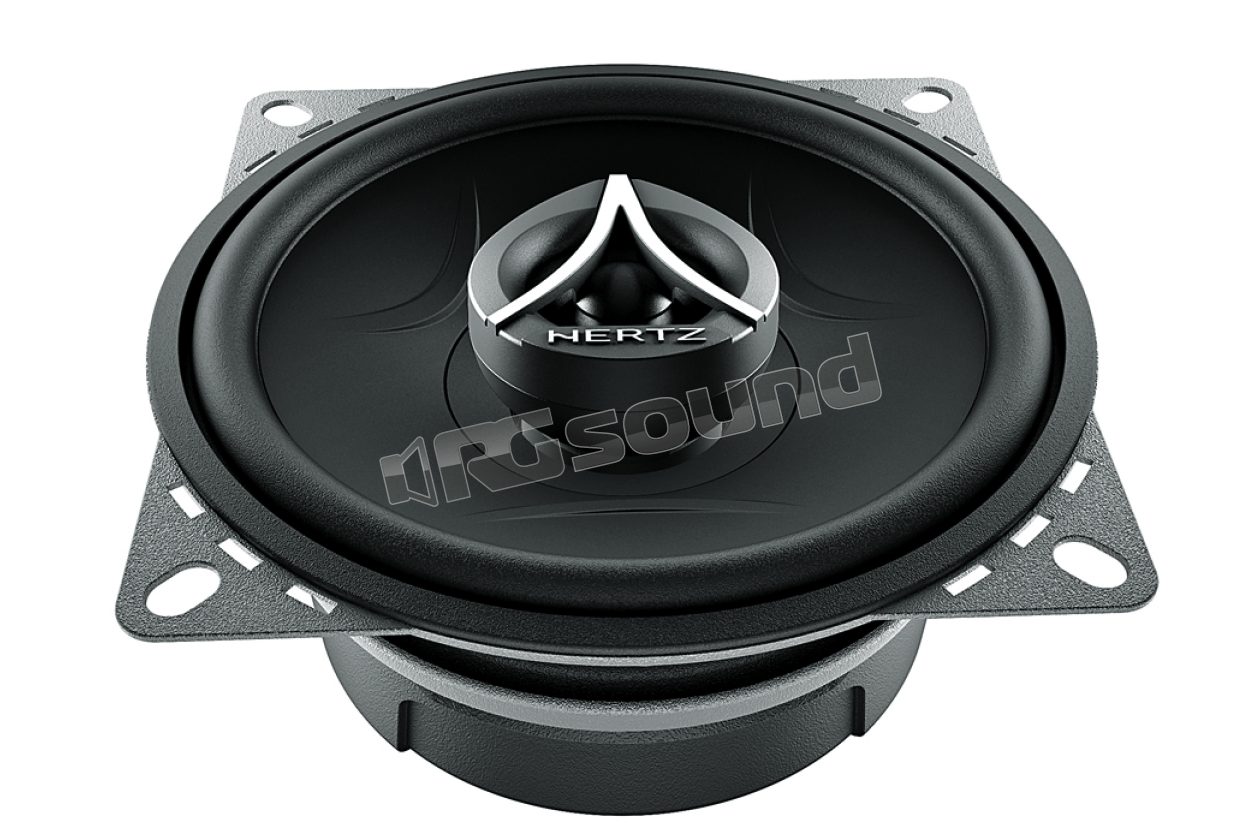

ECX 100.5

Hertz

Discontinued

Your price:
€ 68,00
Price per pair (VAT included)

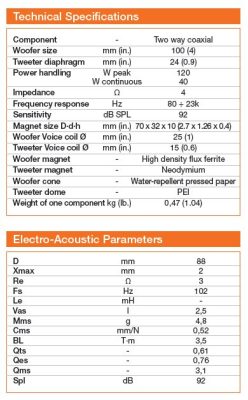

Type
Coaxial
Speaker Size
100 mm
Coaxial Type
2-way

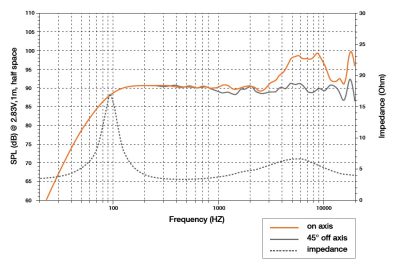

Frequency Response
80-23 Hertz
MAX Power
120 Watt
Sensitivity
92 dB
Impedance
4 Ohm
Woofer Material
Fibra di cellulosa
Tweeter Material
PEI

Two-way coaxial 100 mm Energy series - Max Power 120 W

The Energy.5 coaxials are the solution for those who wish to reproduce a wide range of frequencies without resorting to the use of separate components: the coaxial tweeter completes the woofer's response optimizing installation space requirements.
Neodymium tweeter with integrated crossover, cellulose membrane reinforced with deep braces and careful tuning of the motor assembly, contribute to enhancing sound linearity, off-axis response and tonal quality. The RHFC technology allows you to orient the tweeter, tilted 10°, to control dispersion and approximate an ideal frequency response.

1. Cone in cellulose fiber with water-repellent treatment; suspensions in butyl rubber.
2. Mobile voice coil in pure copper, wound on aluminum support, for exceptional thermal and mechanical capacity.
3. Oversized magnetic assembly for energetic control of the mobile assembly.
4. Low carbon pole plates for maximum magnetic permeability and high thermal dissipation.
5. Magnet coated in rubber, to ensure mechanical dampening of the basket and motor assembly, and protect it from possible abrasions and damage.
6. Basket to DIN standards, coated with protective anti-abrasion and anti-scratch material.
7. High current terminals, tin-plated.
8. Silver braids, for maximum reliability and conductivity.
9. Basket-motor assembly coupling in epoxy glue.
10. Nomex spider with shape memory, for constant and reliable performance.
11. Tweeter with high energy neodymium magnet.
12. RHFC, Rotary High Frequency Contour; adjustable system for the best off-axis dispersion and for a perfect frequency response towards any listening point.

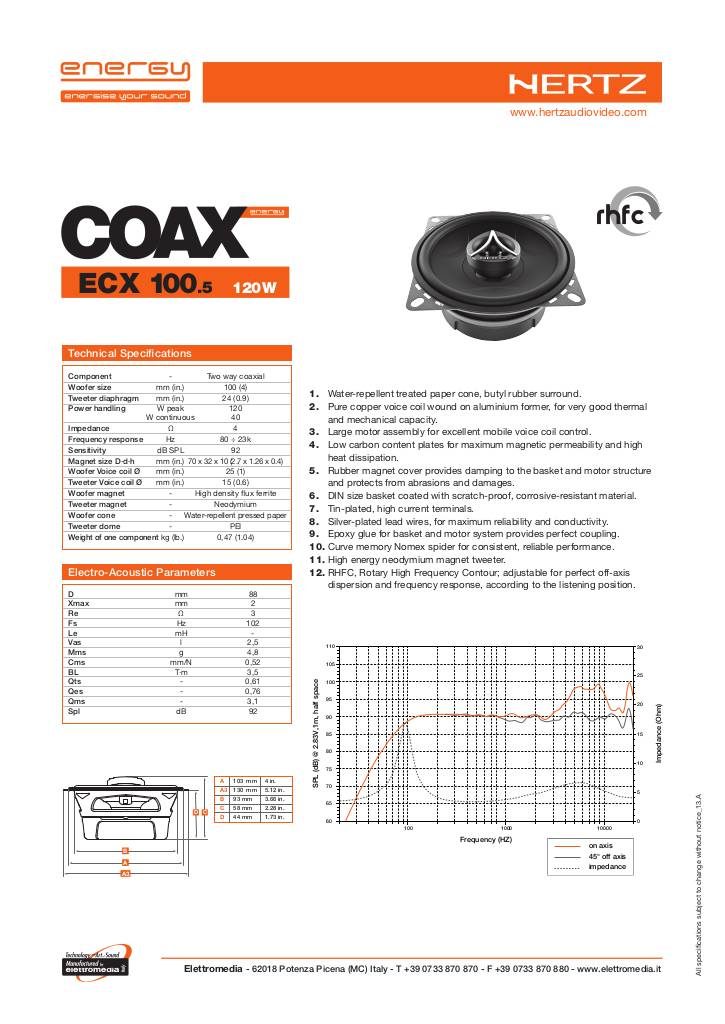

Scheda tecnica

20130711172955-hertz-energy-ecx100-5-tech.pdf
Discontinued
