CZ170 165mm 2-way coaxial Cz Series

Ciare

Discontinued

Your price:
€ 27,00
Price per single item (VAT included)
Type
Coaxial
Speaker Size
165 mm
Coaxial Type
2-way
MAX Power
100 Watt
RMS Power
50 Watt
Sensitivity
91 dB
Impedance
4 Ohm
Woofer Material
Acciaio
Tweeter Material
Neodimio

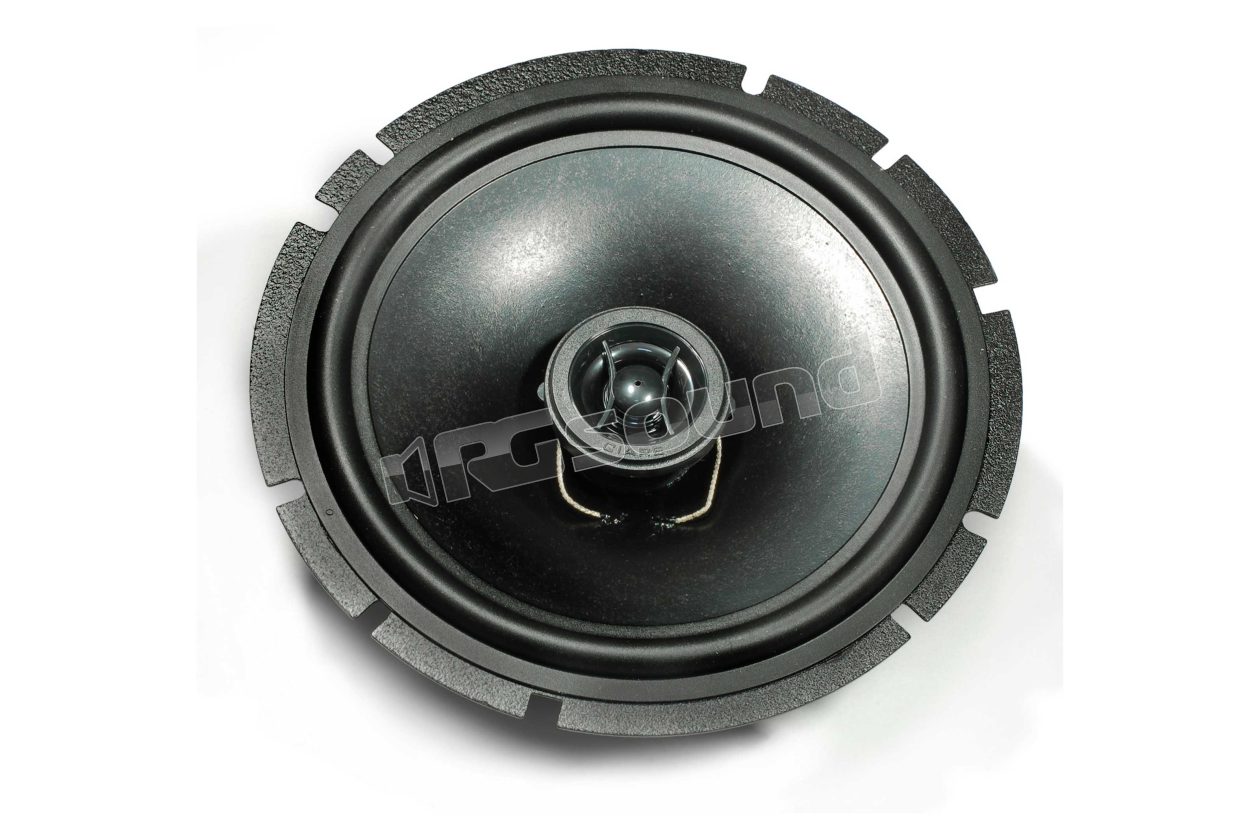

Ciare CZ170 two-way coaxial 165mm CZ Series with damped cellulose woofer membrane and neodymium tweeter. Coaxial with excellent value for money ratio, great linearity of frequency response and reliability at the price.

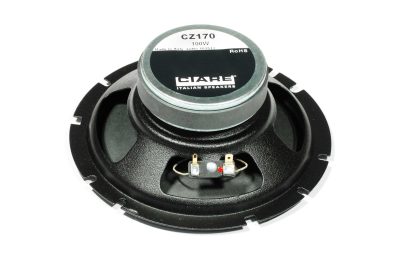

Ciare CZ170 is a coaxial speaker with nominal diameter 165 mm (6.5″). Its main use is as a "full-range" speaker from predisposition in Car Audio setups, when the car does not have dedicated tweeters for high frequencies. Its structure includes a ferrite magnet with a diameter of 80 mm and a steel sheet basket.

CZ170 Features

  • Max power: 100W
  • Nominal power: 50W
  • Nominal impedance: 4Ω
  • Diameter: 165mm
  • Voice coil diameter: 25mm
  • Sensitivity 1W/1m: 91 dB

CZ170 Materials

  • Basket type: Steel
  • Magnet type: Ferrite
  • Suspension type: Rubber
  • Former type: Aluminum
  • Air gap height: 4 mm

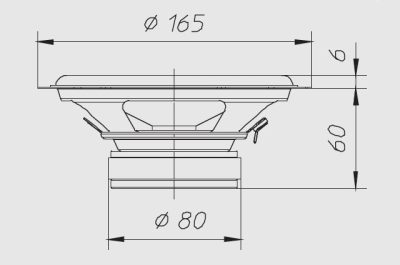

CZ170 Dimensions

  • Outer diameter: 165 mm
  • Sub-flange depth: 60 mm
  • Flange thickness: 6 mm
  • Panel hole: 142 mm
  • Number of mounting holes: 4
  • Mounting hole diameter: 5 mm
  • Mounting hole position diameter: 157
  • Weight with single packaging: 0.71 Kg

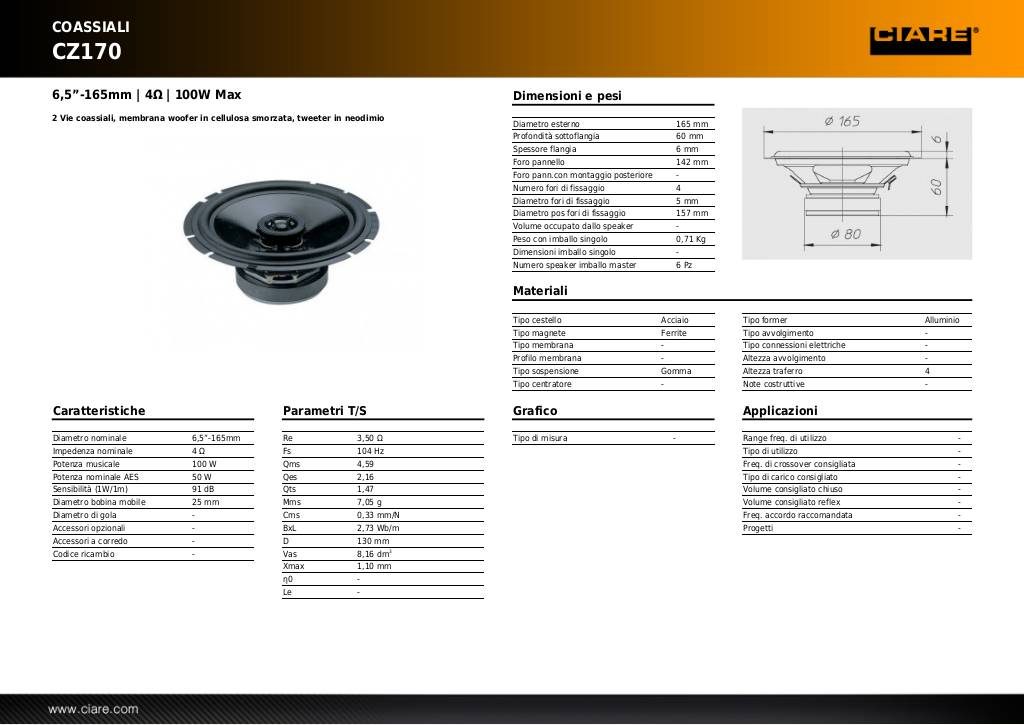

Scheda tecnica

20131031101407-cz170.pdf

1x Ciare CZ170 coaxial speaker
Discontinued
