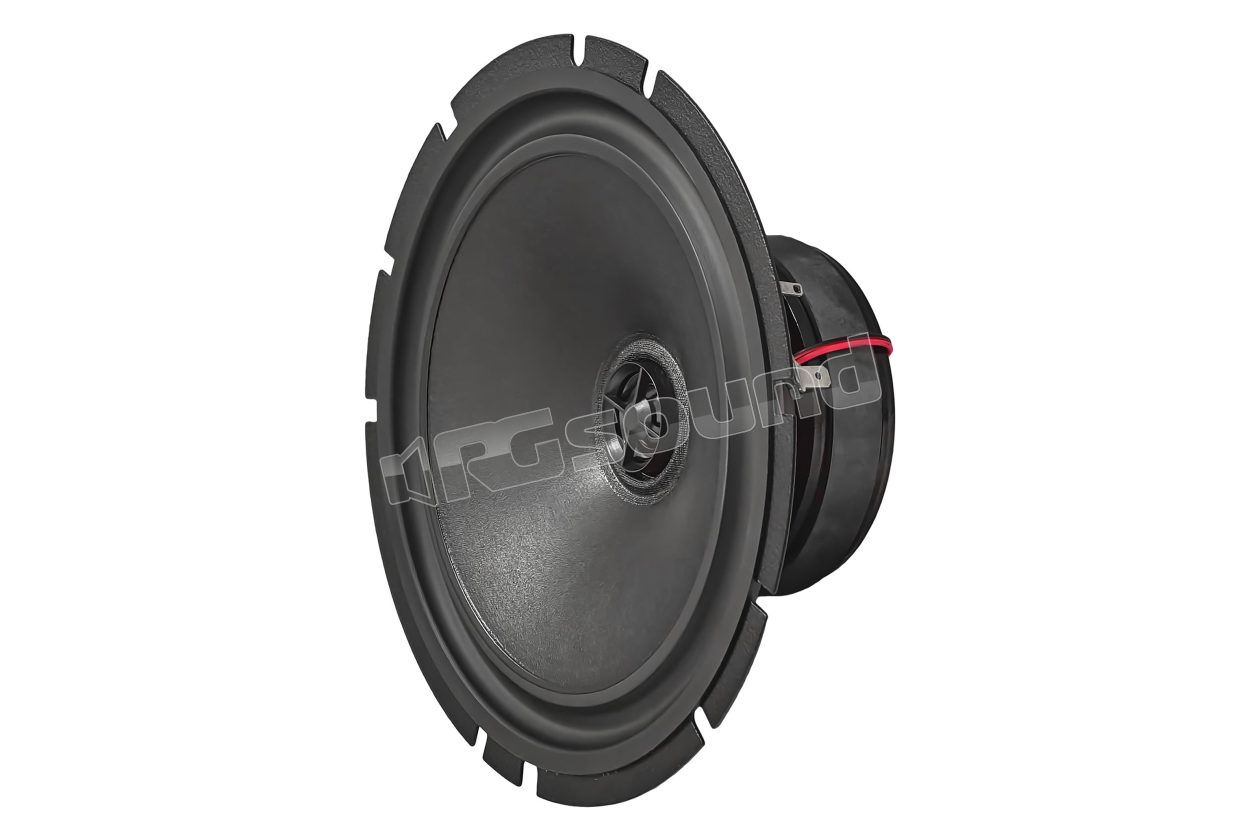

CXE174 16.5 cm two-way coaxial speakers with neodymium tweeter

Ciare
Your price:
€ 35,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Coaxial
Speaker Size
165 mm
Coaxial Type
2-way
MAX Power
150 Watt
RMS Power
75 Watt
Sensitivity
92 dB
Impedance
4 Ohm
Woofer Material
Cellulosa trattata
Tweeter Material
Neodimio

Ciare CXE174 coaxial 6.5" (165 mm), V.C. 25 mm, 150 W, 90 dB, 4 Ω with neodymium tweeter

The Ciare CXE174 is a coaxial speaker with a nominal diameter of 165 mm (6.5″). Its main use is as a "full-range" speaker from factory provision in Car Audio installations, when dedicated tweeters for high frequencies are not provided in the vehicle.

The moving assembly of this coaxial includes a cellulose damped woofer diaphragm, coupled with a rubber suspension kit. The use of rubber makes the suspensions more durable over time, ensuring greater longevity of the moving assembly. The moving assembly is completed by the voice coil in aluminum wire, with a diameter of 25 mm (1″).

Ciare CXE174 is equipped with a small integrated tweeter with neodymium magnet.

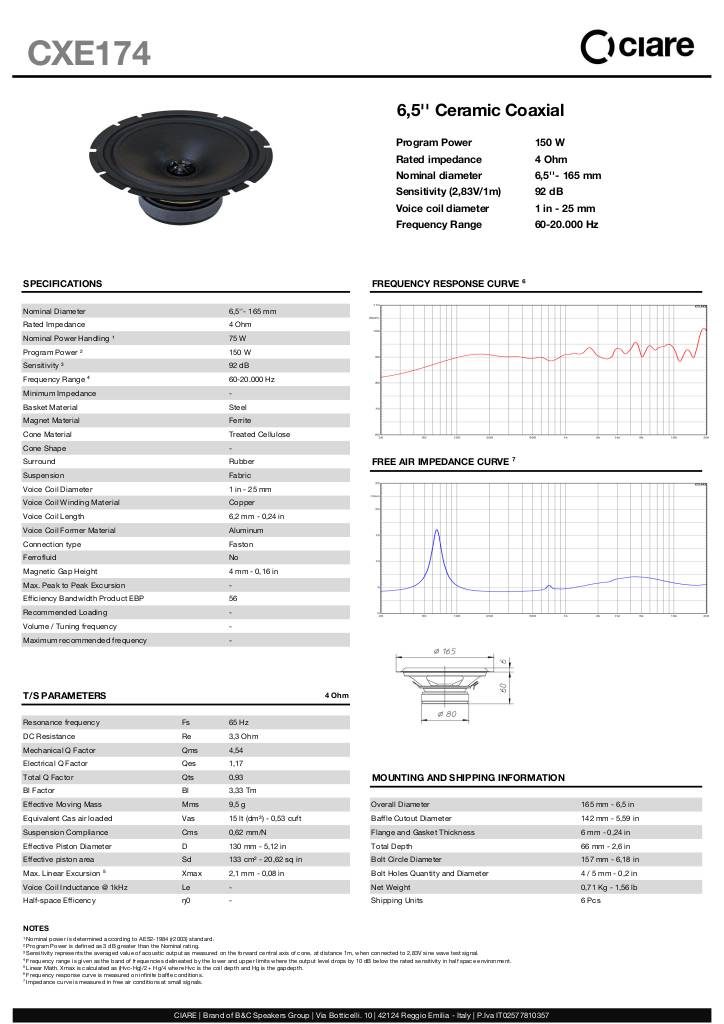

Scheda tecnica

n-20260817162224-ciare-cxe174-en.pdf

Ciare CXE174 technical specifications

  • Nominal diameter 165 mm (6.5 inches)
  • Nominal power handling 75 W
  • Sensitivity 92 dB
  • Core material Aluminum
  • Gap depth 4 mm (0.16 inches)
  • Nominal impedance 4 Ω
  • Continuous power handling 150 W
  • Voice coil diameter 25 mm (1 in)
  • Winding depth 6.2 mm (0.24 in)
  • Total diameter 165 mm (6.5 in)
  • Deflector opening diameter 142 mm (5.59 in)
  • Flange and gasket thickness 6 mm (0.24 in)
  • Hole spacing circle diameter 157 mm (6.18 inches)
  • Depth 66 mm (2.6 inches)
  • Net weight 0.71 kg (1.56 pounds)
  • Basket material Steel

Parameters

  • Fs 65 Hz
  • Qes 1.17
  • Qts 0.93
  • Sd 133 cm² (20.62 in²)
  • Mms 9.5 g
  • Cms 0.62 mm/N
  • EBP 56 Hz
  • Re 3.3 Ω
  • Qms 4.54
  • Vas 15 dm³ (0.53 ft³)
  • Xmax 2.1 mm (0.08 in)
  • Bl 3.33 Tm
  • d 130 mm (5.12 in)
