CZ140 Cz Series (4x6'')

Ciare

Discontinued

Your price:
€ 26,00
Price per single item (VAT included)
Type
Coaxial
Speaker Size
4x6''
Coaxial Type
2-way
MAX Power
90 Watt
RMS Power
40 Watt
Sensitivity
91 dB
Impedance
4 Ohm
Woofer Material
Acciaio
Tweeter Material
Neodimio

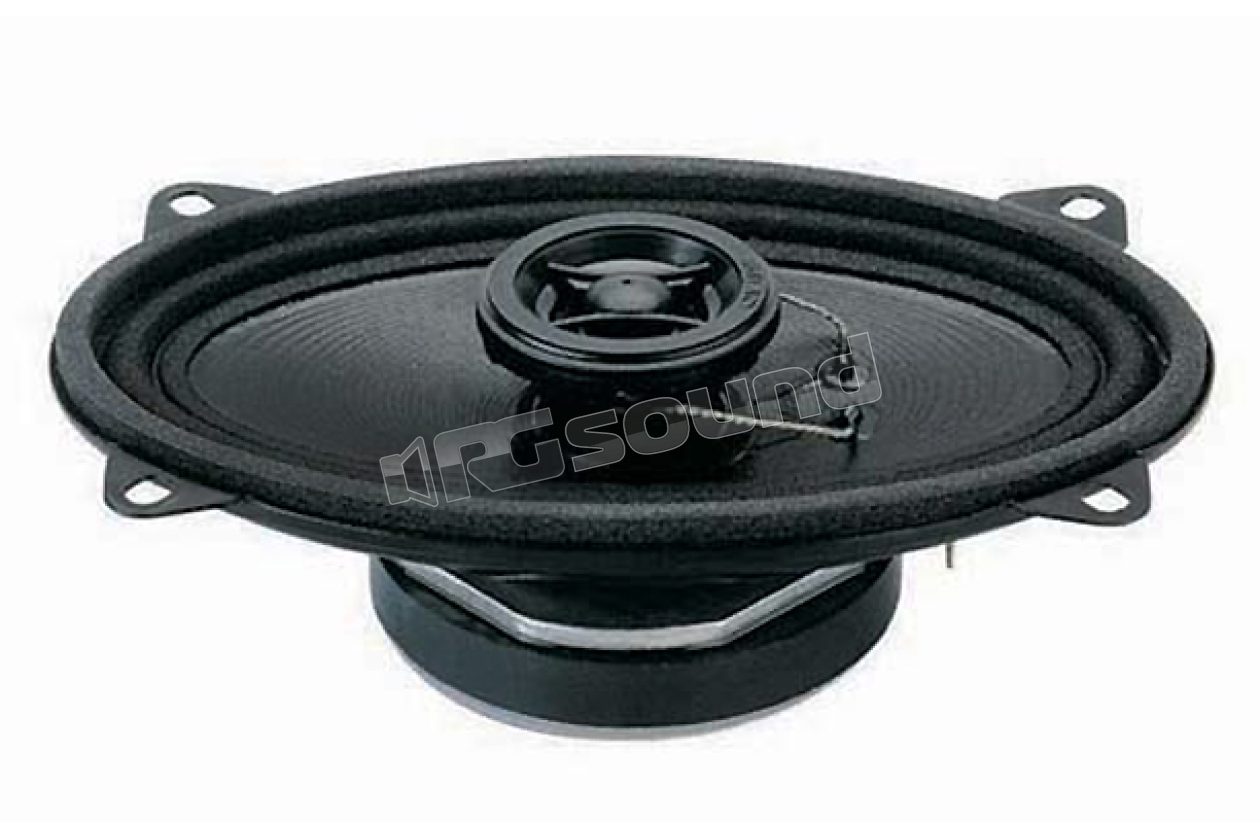

Ciare CZ140 two-way coaxial 155x96mm (4"x6") Cz Series with damped cellulose woofer membrane, neodymium tweeter. Coaxial with excellent quality-to-price ratio, great linearity of frequency response and reliability in price. Ciare is a company constantly keeping up with technological innovations and under the continuous stimulus of market requests, with absolute fidelity to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to independently manage all phases of product realization, allowing the company to achieve the highest quality standards in the realization of every component.

CZ140 Features

  • Max power: 90W
  • Nominal power: 40W
  • Nominal impedance: 4Ω
  • Diameter: 155 x 96mm
  • Mobile coil diameter: 25mm
  • Sensitivity 1W/1m: 91 dB

CZ140 Materials

  • Basket type: Steel
  • Suspension type: Polyurethane
  • Former type: Aluminum
  • Air gap height: 4 mm

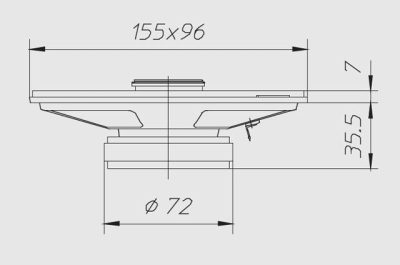

CZ140 Dimensions

  • External diameter: 155 x 96 mm
  • Depth below flange: 35.5 mm
  • Flange thickness: 7 mm
  • Panel hole: 144 x 87 mm
  • Number of mounting holes: 4
  • Mounting hole diameter: 5 mm
  • Mounting hole position diameter: 73x123
  • Weight with single packaging: 0.48 Kg

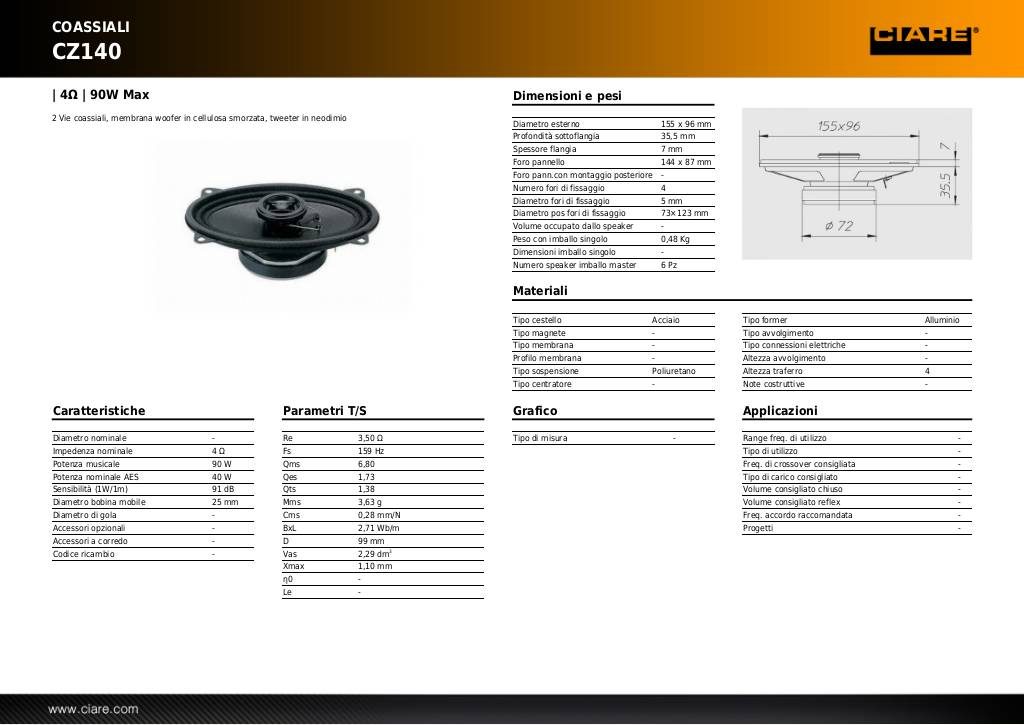

Scheda tecnica

20131030180322-cz140.pdf
