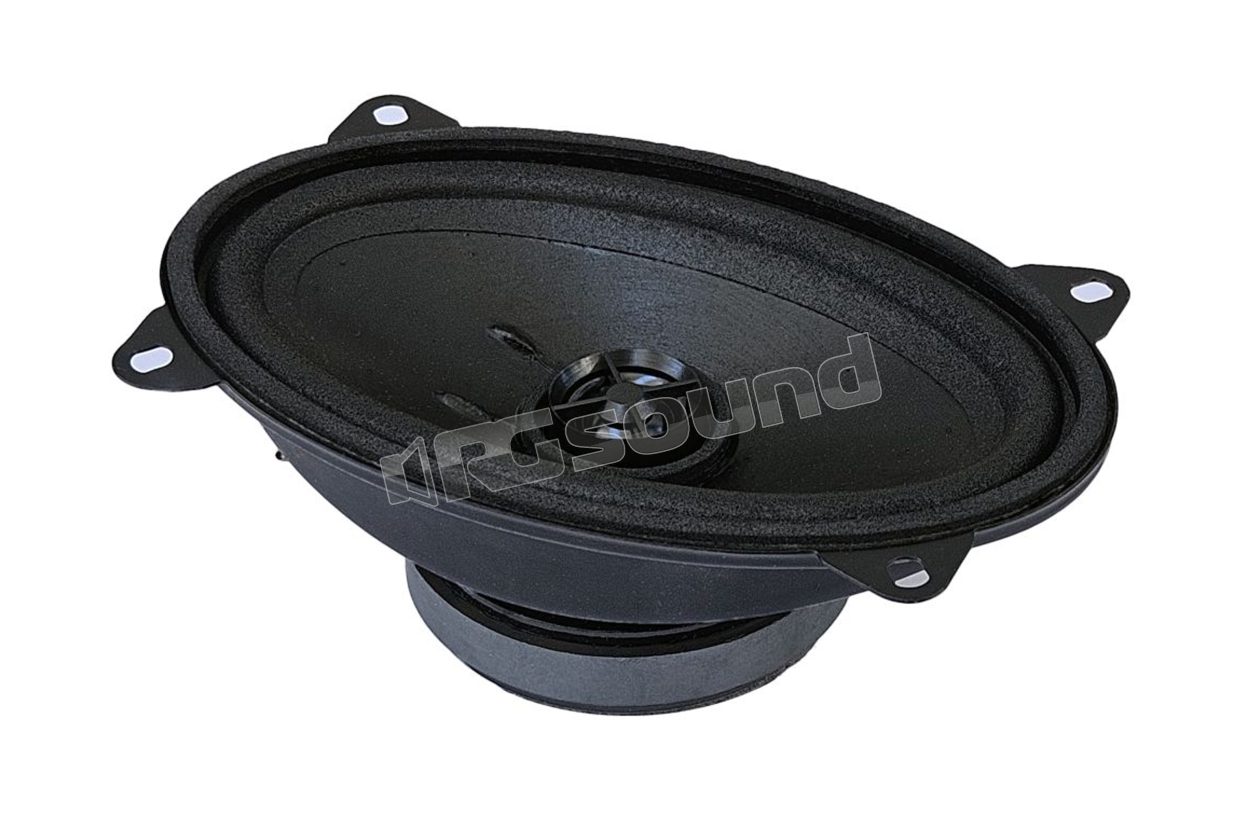

CXE144 6x4'' two-way coaxial speakers with neodymium tweeter

Ciare
Your price:
€ 38,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Coaxial
Speaker Size
4x6''
Coaxial Type
2-way
MAX Power
90 Watt
RMS Power
40 Watt
Sensitivity
91 dB
Impedance
665 Ohm
Woofer Material
Cellulosa trattata
Tweeter Material
Neodimio

Ciare CXE144 Neo coaxial elliptical 6"×4" (150×96 mm), V.C. 25 mm, 90 W, 91 dB, 4 Ω

Main features:

  • Two-way coaxial 6x4" new Cz series
  • Damped cellulose woofer cone
  • Neodymium tweeter
  • Durable steel basket
  • Power 45 W RMS / 90 W max
  • Installation depth 35.5 mm

Ciare CXE144 technical specifications

  • Nominal diameter 96 mm (6 in)
  • Nominal power handling 45 W
  • Sensitivity 91 dB
  • Core material Aluminum
  • Air gap depth 4 mm (0.16 in)
  • Nominal impedance 4 Ω
  • Continuous power 90 W
  • Voice coil diameter 25 mm (1 in)
  • Winding depth 6.2 mm (0.24 in)
  • Fs 149 Hz
  • Qes 2.04
  • Qts 1.46
  • Sd 77 cm² (11.94 in²)
  • Mms 4.8 g
  • Cms 0.26 mm/N
  • EBP 73 Hz
  • Re 3.5 Ω
  • Qms 5.18
  • Vas 1.9 dm³ (0.07 ft³)
  • Xmax 2.1 mm (0.08 in)
  • Bl 2.79 Tm
  • d 99 mm (3.9 in)
  • Overall diameter 155 mm
  • Baffle hole diameter 87 mm
  • Flange and gasket thickness 7 mm (0.28 in)
  • Depth 42.5 mm (1.67 in)
  • Net weight 0.48 kg (1.06 lb)
  • Basket material Steel
  • Hole diameter 5 mm (0.2 in)
€ 38,00 Price incl. VAT
