CZ100 2-way 10cm coaxial speaker Cz Series

Ciare

Discontinued

Your price:
€ 25,00
Price per single item (VAT included)
Type
Coaxial
Speaker Size
100 mm
Coaxial Type
2-way
MAX Power
80 Watt
RMS Power
30 Watt
Sensitivity
91 dB
Impedance
4 Ohm
Woofer Material
Acciaio
Tweeter Material
Neodimio

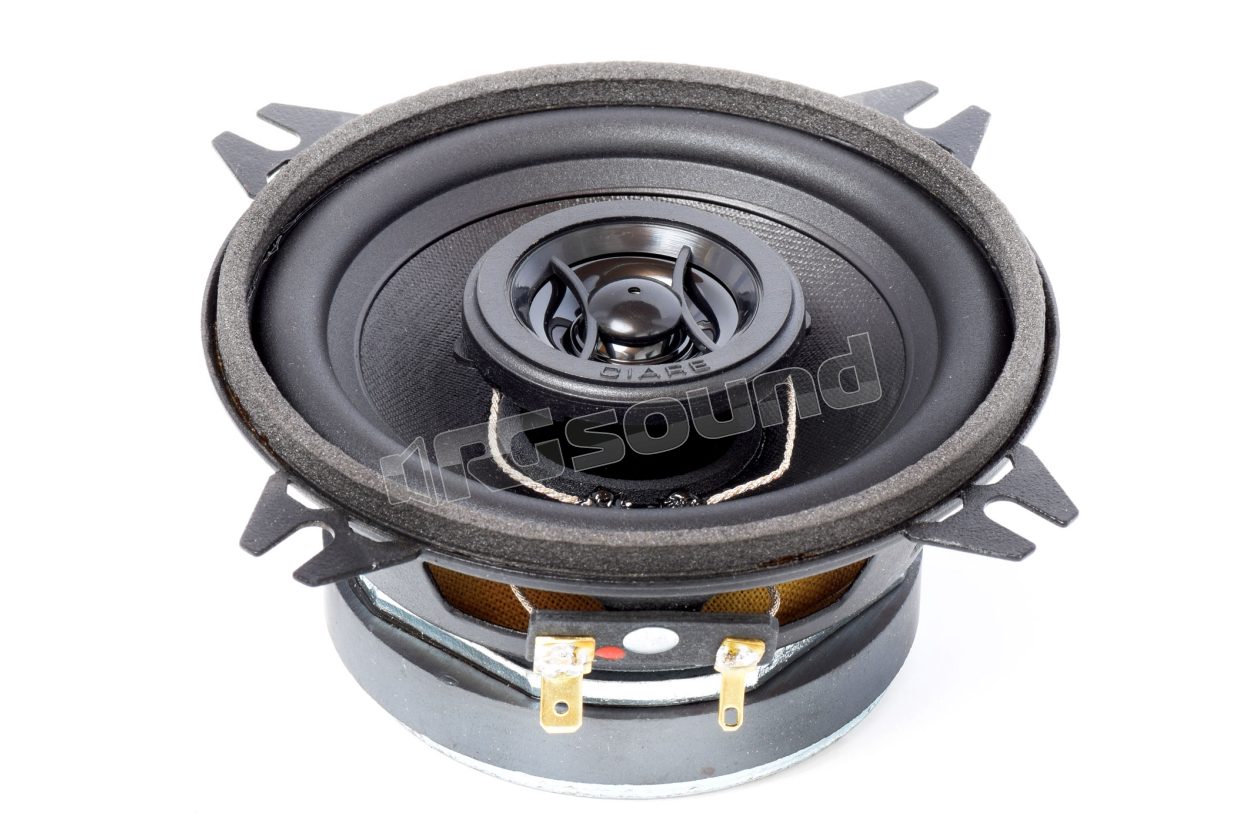

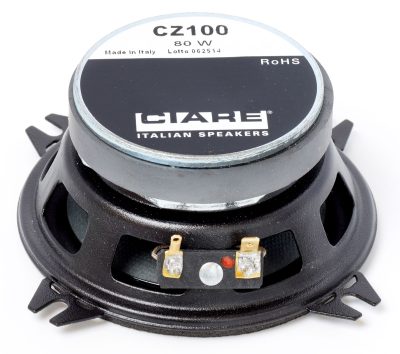

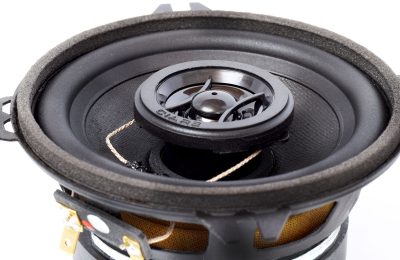

CIARE CZ100 two-way coaxial 100mm CZ Series with damped cellulose woofer membrane, neodymium tweeter and removable mounting brackets.

CZ100 is a coaxial with excellent value for money, great linearity of frequency response. Designed and manufactured by Ciare, a company constantly keeping pace with technological innovations and under the continuous stimulus of market demands, with absolute fidelity to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to independently manage all phases of product realization, allowing the company to achieve the highest quality standards in the realization of every component.

CZ100 Features

  • Max power: 80W
  • Nominal power: 30W
  • Nominal impedance: 4Ω
  • Diameter: 100mm
  • Voice coil diameter: 25mm
  • Sensitivity 1W/1m: 91 dB

CZ100 Materials

  • Basket type: Steel
  • Magnet type: Ferrite
  • Suspension type: Rubber
  • Former type: Aluminum
  • Air gap height: 4 mm

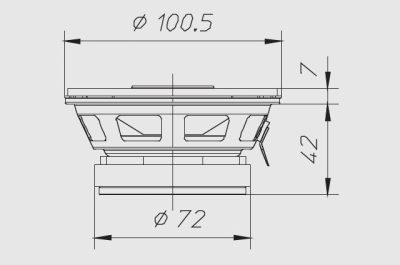

CZ100 Dimensions

  • External diameter: 100.5 mm
  • Depth below flange: 42 mm
  • Flange thickness: 7 mm
  • Panel hole: 91 mm
  • Number of mounting holes: 4
  • Mounting hole diameter: 5.5 mm
  • Mounting hole position diameter: 116
  • Weight with individual packaging: 0.47 Kg

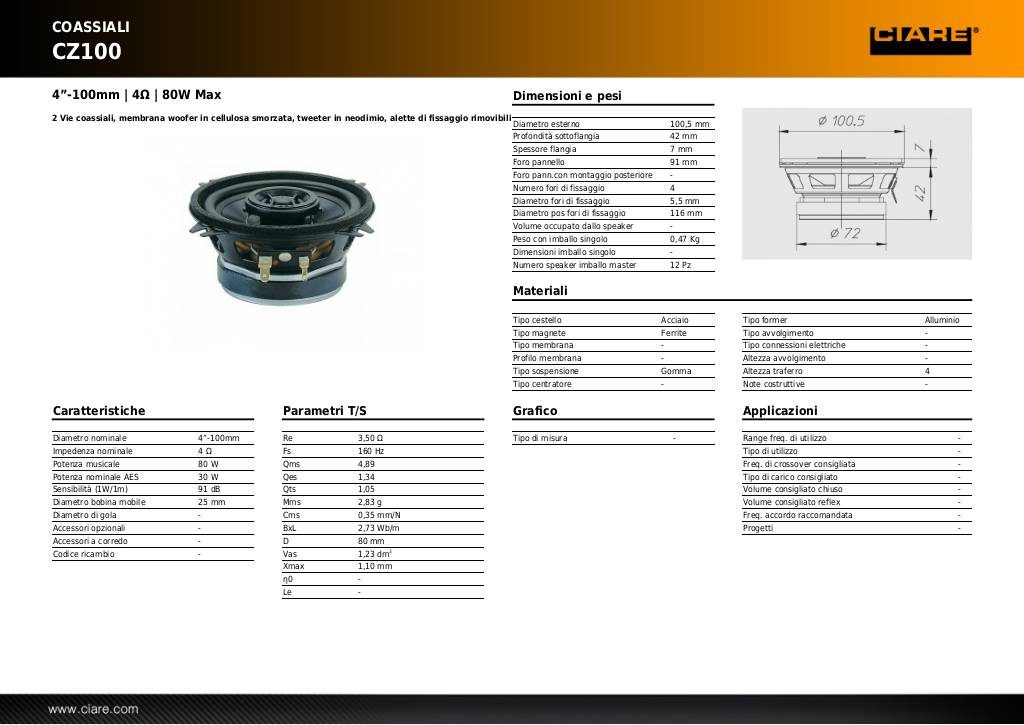

Scheda tecnica

20131030174222-cz100.pdf
