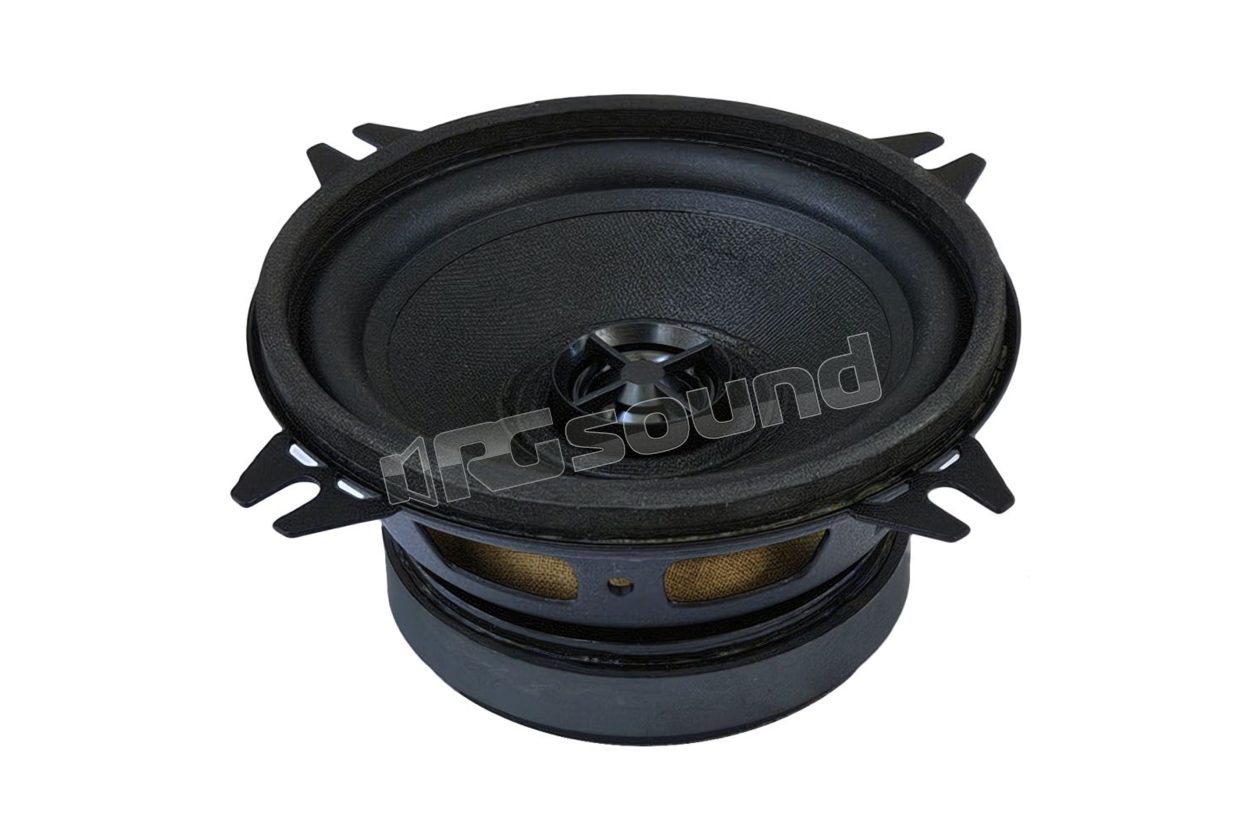

CXE104 10 cm two-way coaxial speakers with neodymium tweeter

Ciare
Your price:
€ 29,90
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Coaxial
Speaker Size
4x6''
Coaxial Type
2-way
MAX Power
100 Watt
RMS Power
50 Watt
Sensitivity
91 dB
Impedance
665 Ohm
Woofer Material
Cellulosa trattata
Tweeter Material
Neodimio

Ciare CXE104 Neo coaxial 4" (100 mm), V.C. 25 mm, 80 W, 91 dB, 4 Ω

Main features:

  • Two-way coaxial 100mm new Cz series
  • Damped cellulose woofer cone
  • Neodymium tweeter
  • Sturdy steel basket
  • Power 50 W RMS / 100 W max
  • Installation depth 42 mm

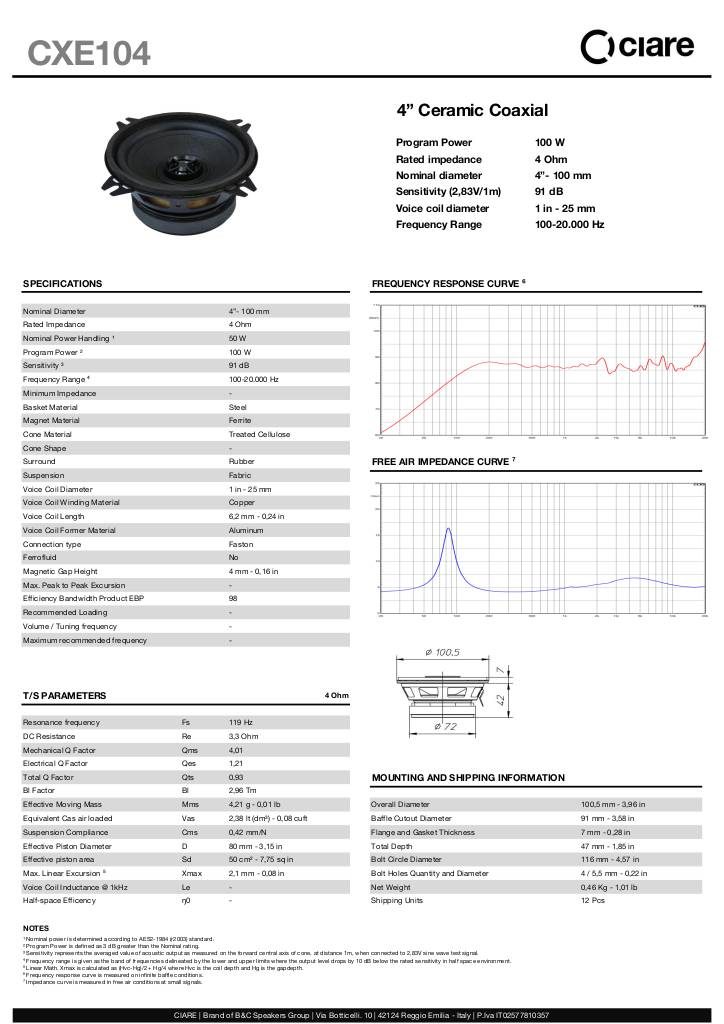

Scheda tecnica

n-20260824095134-ciare-cxe104-en.pdf

Ciare CXE104 technical specifications

  • Nominal diameter 100 mm
  • Nominal power handling 50 W
  • Sensitivity 91 dB
  • Support material Aluminum
  • Air gap depth 4 mm (0.16 inches)
  • Nominal impedance 4 Ω
  • Continuous power handling 100 W
  • Voice coil diameter 25 mm (1 inch)
  • Winding depth 6.2 mm (0.24 inches)
  • Overall diameter 100.5 mm (3.96 in)
  • Deflector hole diameter 91 mm (3.58 in)
  • Flange and gasket thickness 7 mm (0.28 in)
  • Mounting bolt circle diameter 116 mm (4.57 inches)
  • Depth 47 mm (1.85 inches)
  • Net weight 0.46 kg (1.01 pounds)
  • Basket material Steel
  • Hole diameter 5.5 mm (0.22 inches)
  • Fs 119 Hz
  • Qes 1.21
  • Qts 0.93
  • Sd 50 cm² (7.75 square inches)
  • Mms 4.21 g
  • Cms 0.42 mm/N
  • EBP 98 Hz
  • Re 3.4 Ω
  • Qms 4.01
  • Vas 2.38 dm³ (0.08 ft³)
  • Xmax 2.1 mm (0.08 in)
  • Bl 2.96 Tm
  • d 80 mm (3.15 in)
