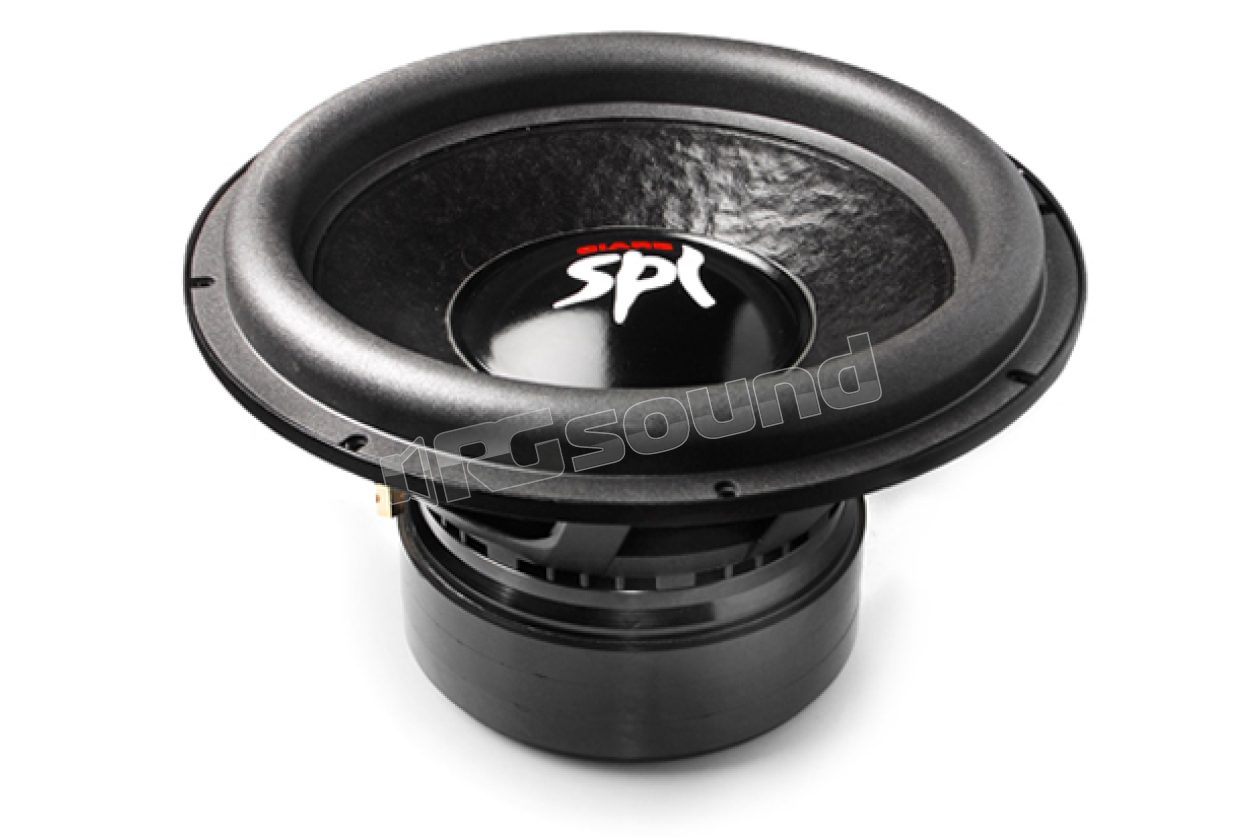

CSW7015 SPL subwoofer

Ciare

Discontinued

Your price:
€ 830,00
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
380 mm
MAX Power
7000 Watt
RMS Power
1000 Watt
Sensitivity
90.5 dB
Impedance
2+2 Ohm
Weight
19,6 Kg
Installation Depth
203 mm
Woofer Material
Cellulosa trattata

Ciare CSW7015 380 mm subwoofer for SPL competitions with multi-fiber cone and flat aluminum wire coil, capable of dissipating extraordinary power. Ciare is a company constantly keeping pace with technological innovations and under the continuous stimulus of market demands, with absolute fidelity to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to manage completely autonomously all phases of product realization, allowing the company to achieve the highest standards of quality in the realization of every component.

CSW7015 Series SPL Features

• For SPL competitions
• 75 mm coil with aluminum support
• Flat aluminum wire winding
• Maximum "Burp" power: 2 x 3500 W
• Maximum mechanical excursion: +- 35 mm
• Fully ventilated air gap
• Double cross-woven NOMEX ® center dampers
• Innovative high excursion suspension
• Exclusive extra rigid multi-fiber diaphragm
• Exclusive gold-plated brass connection terminals for cables up to AWG1

CSW7015 Specifications
Musical power: 7,000 W
Nominal AES power: 500+500 W
Nominal diameter: 15"-380mm
Nominal impedance: 2+2Ω
Moving coil: 75mm
Sensitivity 1W/1m: 90.5 dB
Usage type: Car SPL Competitions
Recommended load type: Bass Reflex
Recommended reflex volume: 60 dm3
Recommended tuning freq: 40 Hz
Freq usage range: 25-200 Hz


CSW7015 Materials
Basket type: Aluminum
Magnet type: Ferrite
Diaphragm type: Reinforced cellulose fiber
Suspension type: Polyurethane
Center damper type: Nomex
Former type: Aluminum
Winding type: Flat aluminum
Connection type: Screw terminal
Diaphragm profile: Straight
Air gap height: 15 mm

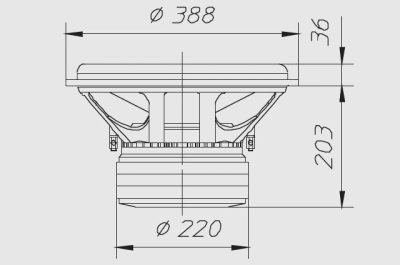

CSW7015 Dimensions
Outer diameter: 388 mm
Depth under flange: 203 mm
Flange thickness: 36 mm
Panel hole: 350 mm
Number of mounting holes: 8
Mounting holes diameter: 6 mm
Mounting holes position diameter: 368
Weight with single packaging: 19.60 Kg

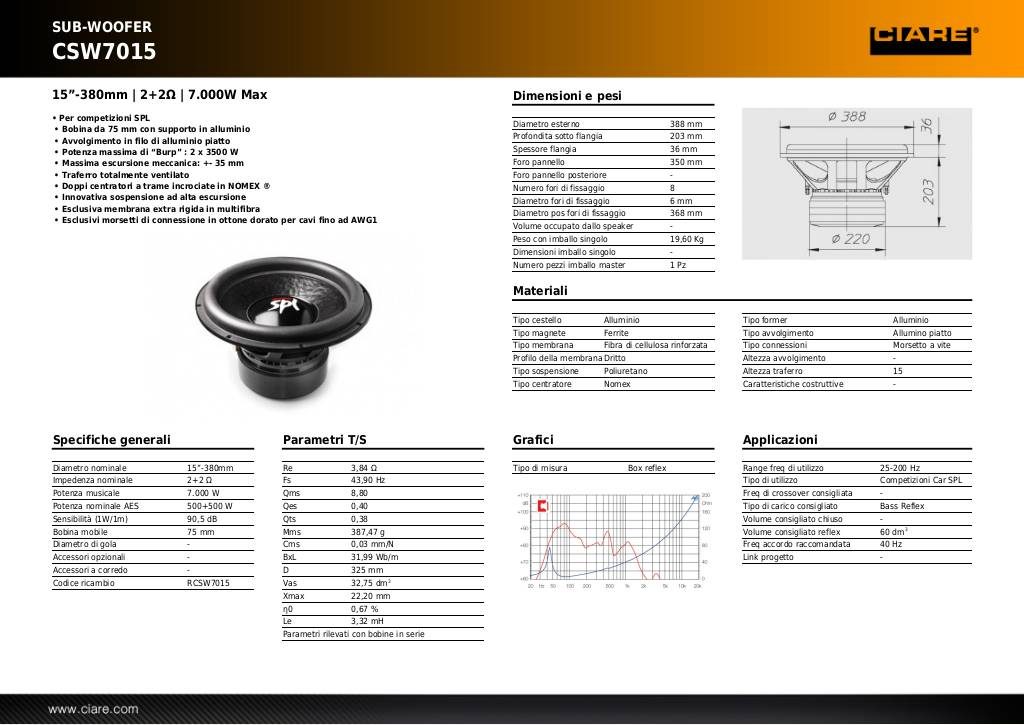

Scheda tecnica

20140228145001-csw7015.pdf
Discontinued
