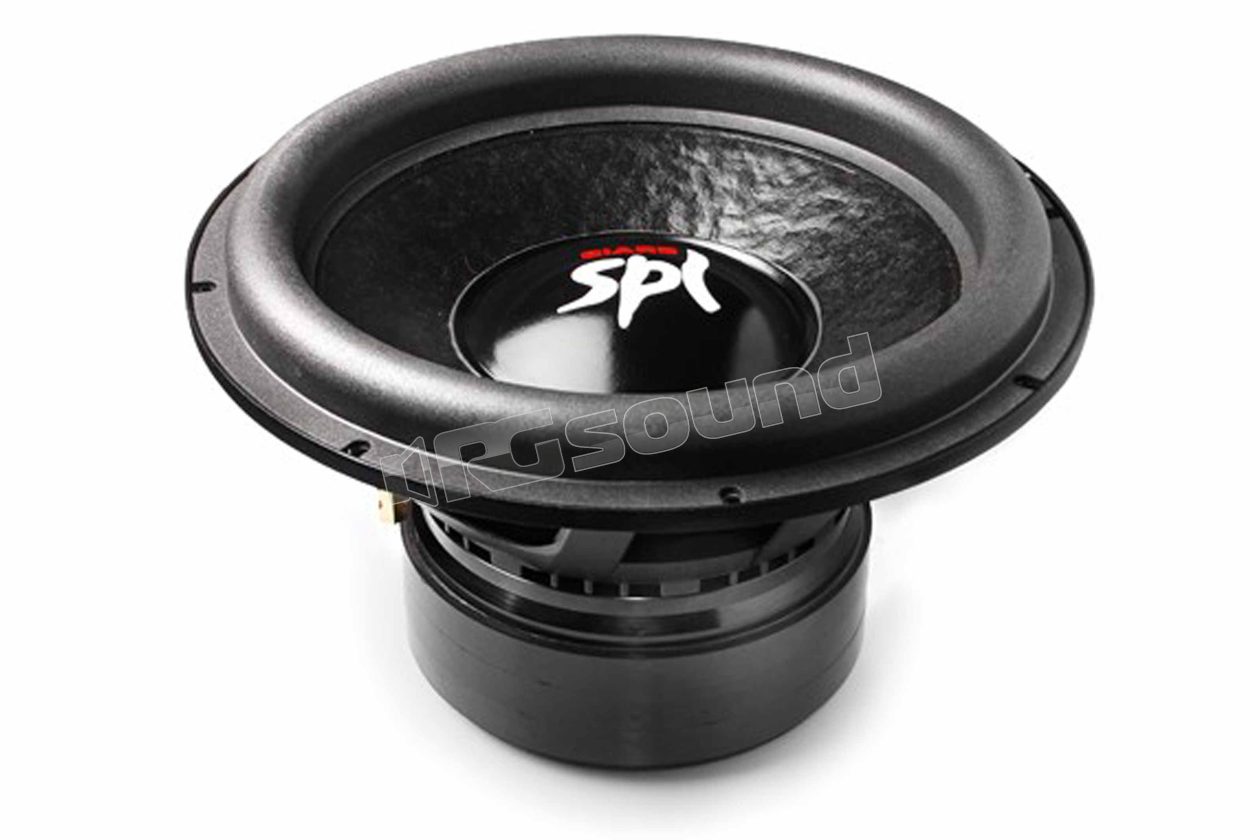

CSW7015EVO 38 cm sub for SPL

Ciare
Your price:
€ 704,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
380 mm
MAX Power
7.000 Watt
RMS Power
1.000 Watt
Frequency Response
25 - 200 Hertz
Sensitivity
90,5 dB
Impedance
2 + 2 Ohm
Weight
19,6 Kg
Installation Depth
203 mm
Woofer Material
Cellulosa trattata

Ciare CSW7015EVO 380mm subwoofer from the renewed 7000 series, suitable for SPL competitions, made with multi-fiber cone and flat aluminum wire coil.

CSW7015EVO is a dual coil 2 Ohm sub capable of dissipating extraordinary power, compared to the previous CSW7015 model, from which it maintains the remarkable acoustic characteristics, equipped with cables instead of output terminals.

CSW7015EVO technical features

Musical Power: 7,000 W
Nominal AES Power: 700+700 W
Nominal Diameter: 15'' - 380mm
Nominal Impedance: 2+2 Ohm
Voice Coil: 75mm
Sensitivity 1W/1m: 90.5 dB
Type of Use: Car SPL Competitions
Recommended Load Type: Bass Reflex
Recommended Reflex Volume: 60 dm³
Recommended Tuning Frequency: 40 Hz
Frequency Range of Use: 25 - 200 Hz
Installation Depth 203 mm

CSW7015EVO Material Features

Aluminum basket
Ferrite magnet
Aluminum former
Flat aluminum winding
Diaphragm: reinforced cellulose fiber
Polyurethane surround

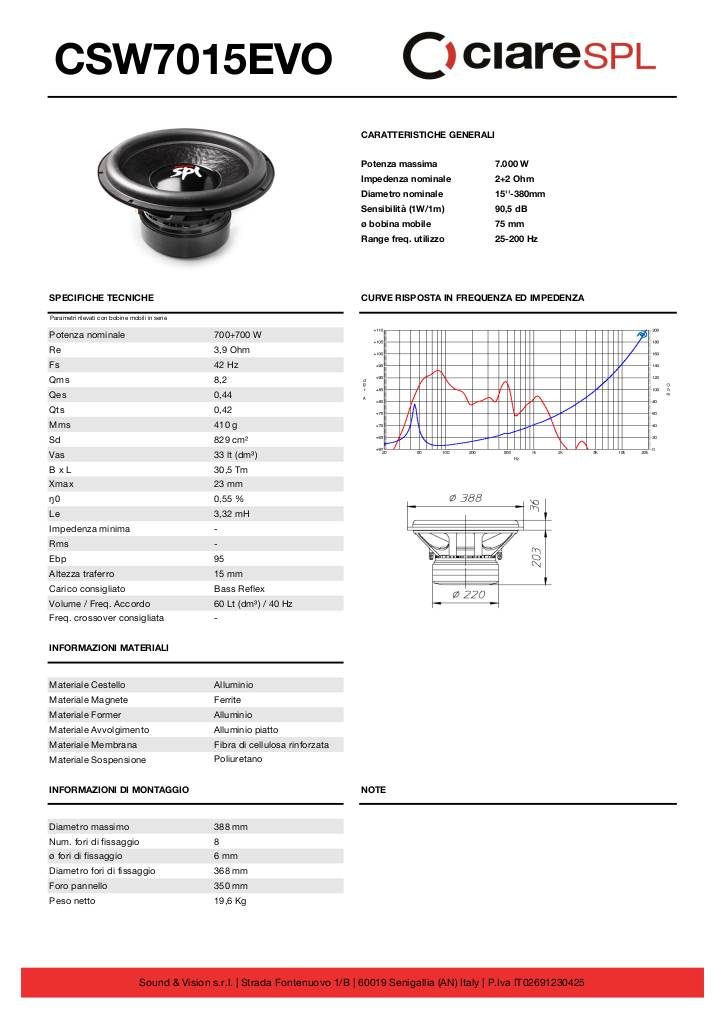

Scheda tecnica

n-20180627164201-csw7015evo.pdf
€ 704,00 Price incl. VAT
