CM166ND SPL extended range

Ciare

Discontinued

Your price:
€ 168,10
Price per single item (VAT included)
Type
Woofer and midwoofer
Speaker Size
165 mm
MAX Power
300 Watt
RMS Power
150 Watt
Frequency Response
110 - 4.500 Hertz
Sensitivity
97 dB
Impedance
4 Ohm
Weight
1,4 Kg
Installation Depth
67 mm
Woofer Material
Cestello in Alluminio magnete in Neodimio

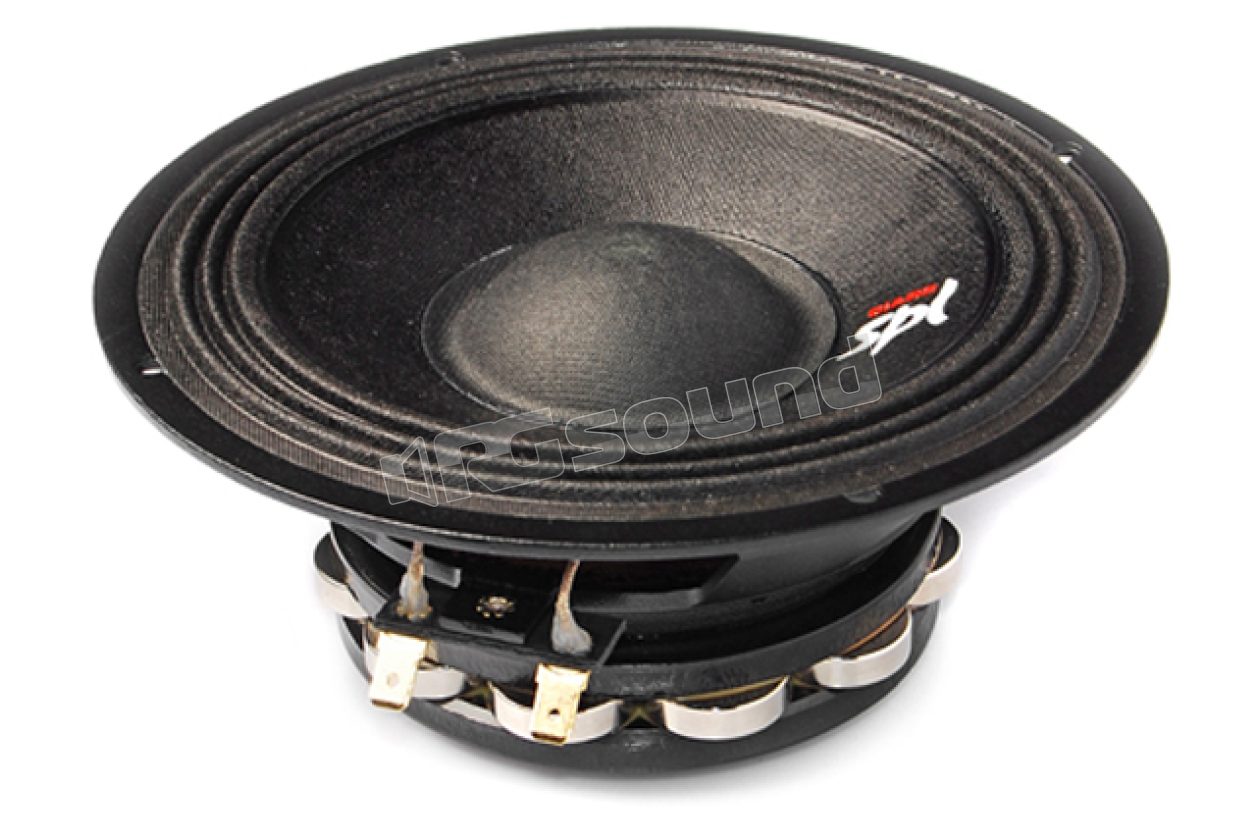

CIARE CM166ND midwoofer extended range 165mm for SPL competitions with treated cellulose membrane, NOMEX fabric suspension, double flat center, ELSG technology. Appealing total black look. Ciare is a company constantly keeping pace with technological innovations and under the continuous stimulus of market requests, with absolute fidelity to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to independently manage all phases of product realization, allowing the company to achieve the highest quality standards in the realization of every component.

Features CM166ND

  • Music power: 300 W
  • AES nominal power: 150 W
  • Nominal diameter: 6.5''-165mm
  • Nominal impedance: 4Ω
  • Voice coil: 50mm
  • Sensitivity 1W/1m: 97 dB
  • Recommended load type: Bass Reflex
  • Recommended reflex volume: 1.5 dm3
  • Recommended tuning freq: 130 Hz
  • Freq range of use: 110-4,500 Hz

Materials CM166ND

  • Basket type: Aluminum
  • Magnet type: Neodymium
  • Membrane type: Treated cellulose fiber
  • Suspension type: Nomex
  • Former type: Kapton
  • Connection type: Faston
  • Membrane profile: Straight
  • Air gap height: 8 mm

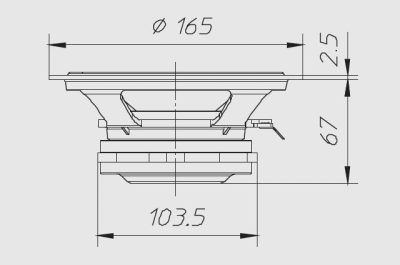

Dimensions CM166ND

  • Outer diameter: 165 mm
  • Depth under flange: 67 mm
  • Flange thickness: 2.5 mm
  • Panel hole: 184 mm
  • Number of mounting holes: 4
  • Mounting hole diameter: 5 mm
  • Mounting hole position diameter: 154
  • Weight with single packaging: 1.40 Kg

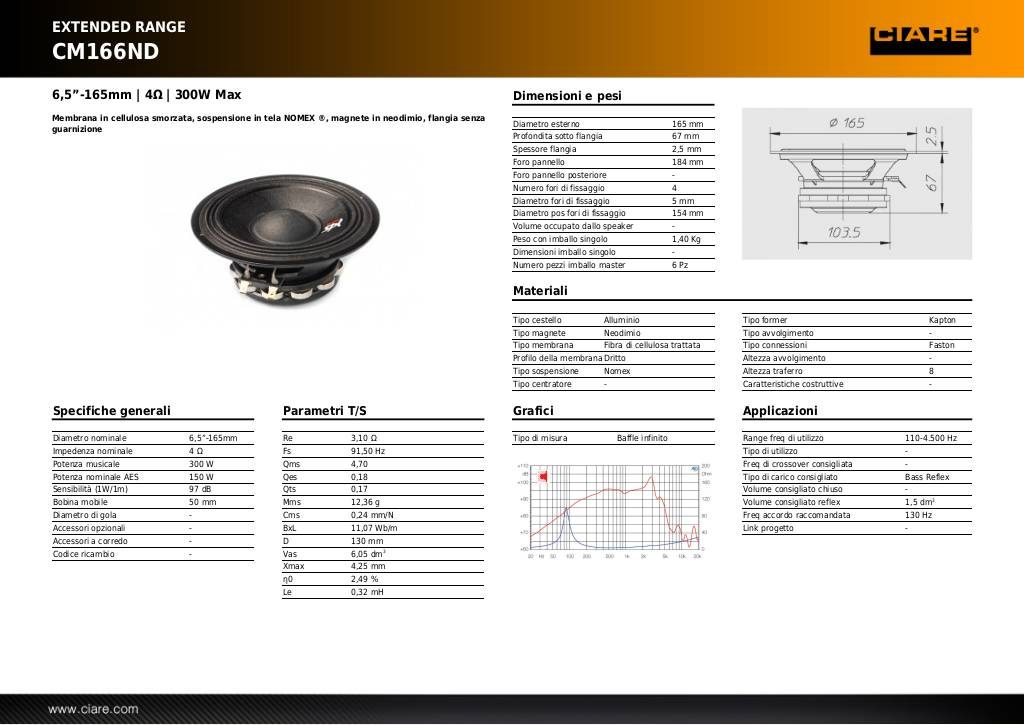

Scheda tecnica

20140228154941-cm166nd.pdf
Discontinued
