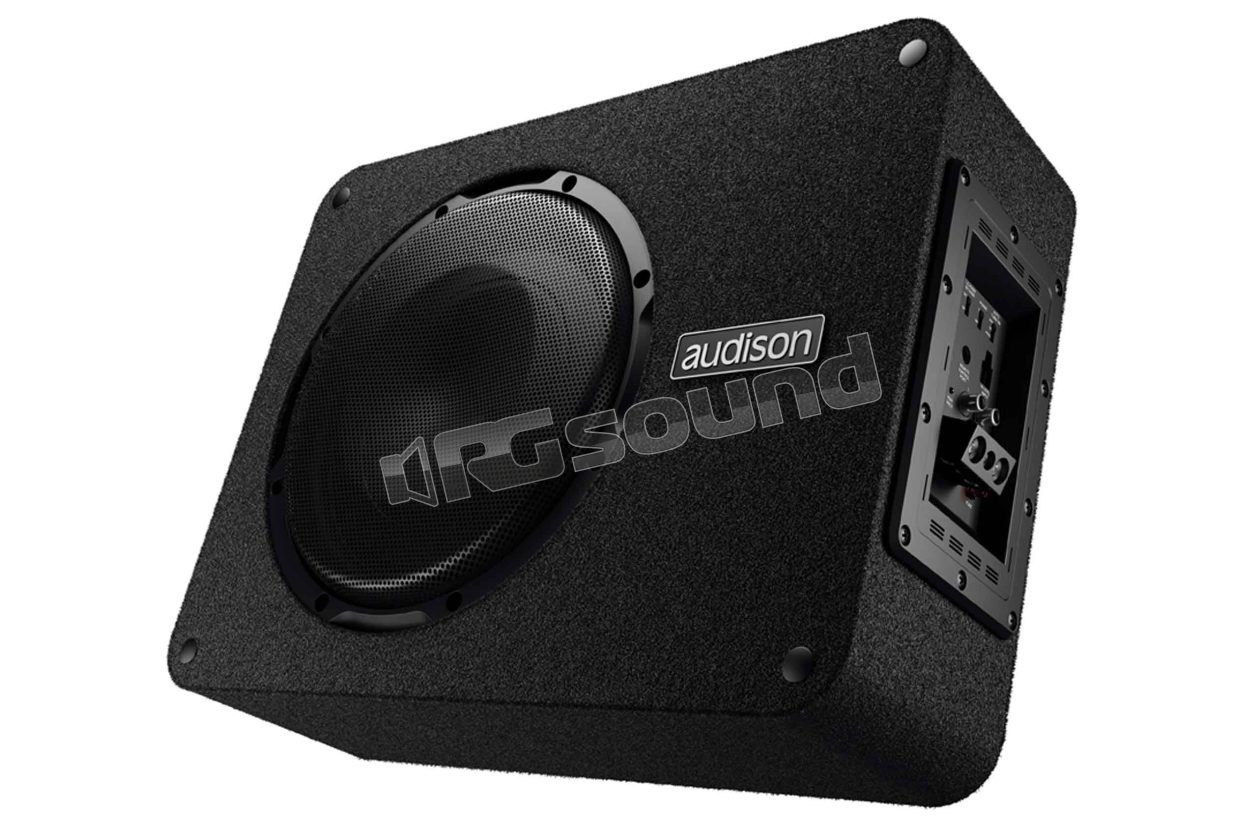

APBX 10 AS 25cm active subwoofer, Prima series

Audison

Discontinued

Your price:
€ 399,00
Price per single item (VAT included)
Type
Powered subwoofer
Speaker Size
250 mm
MAX Power
800 Watt
RMS Power
400 Watt
Enclosure Size
460 x 338 x 135 mm
Enclosure Type
Sealed Enclosure

Audison APBX 10 AS active subwoofer from the Prima series with 10" driver, features a dedicated amplification module with high performance that enhances all the characteristics of the passive version.

APBX 10 AS presents itself with 2S² design (2 sides / 2 sounds) and compact dimensions, Plug & Play terminals, amplification module, output power of 400 W RMS. Dual voice coil driver that guarantees perfect synergy with high efficiency technology (low impedance), maximizing the combination of amplifiers and speakers, to obtain low, powerful and clear frequencies.

12 dB/oct Butterworth low-pass filter with variable cutoff frequency (50-200 Hz) can be bypassed if used with an AP processor with dedicated pre-output to the sub. The adjustable bass-boost control (from 0 to 6 dB) at 45 Hz allows response to the lower side of the spectrum. High level input. The ART (Automatic Remote Turn-On) function of automatic turn-on/turn-off of the APBX 10 AS subwoofer can be set to be controlled by the signal source remote, by voltage variation on the high level input or by audio signal on both inputs. Phase control (0 - 180°) completes the equipment. The SSP (Sub Smart Plug) terminal is equipped with a single plug and play connector.

Technical specifications of Audison APBX 10 AS

Subwoofer format mm 250 mm (10")
Voice coil diameter 60 mm (2.36")
RMS output power 400 W
Peak power 800 W
Impedance 0.16 Ohm
Box dimensions L 460 mm (18.11") x 338 mm (13.31") x 158 mm (6.22")
High density ferrite magnet
Cone Water-repellent pressed paper
Weight 9.4 Kg (29.72 lb)

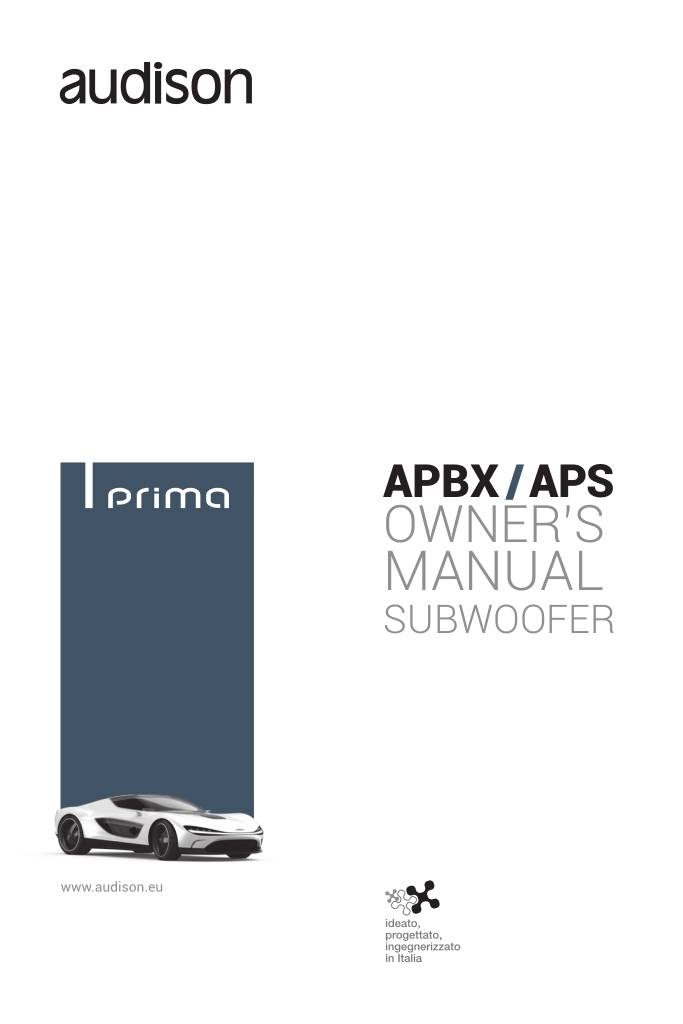

Manuale utente

n-20180420145519-audison-prima-apbx-aps-owner-manual-reve.pdf

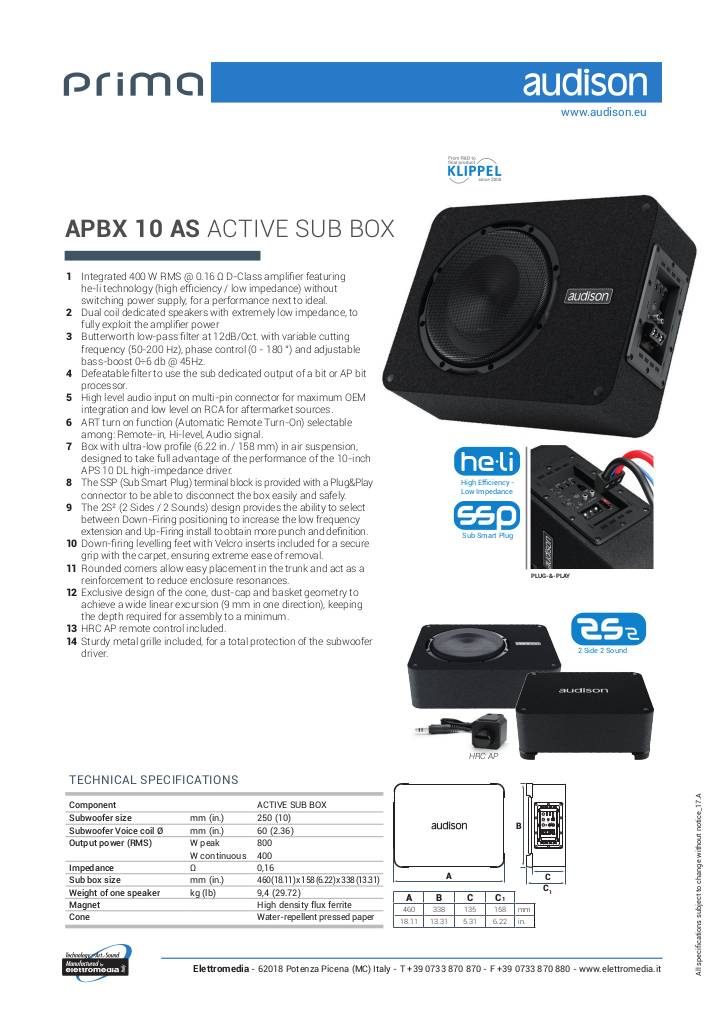

Scheda tecnica

n-20180420145519-audison-prima-technical-sheet-apbx-10-as.pdf
Discontinued
