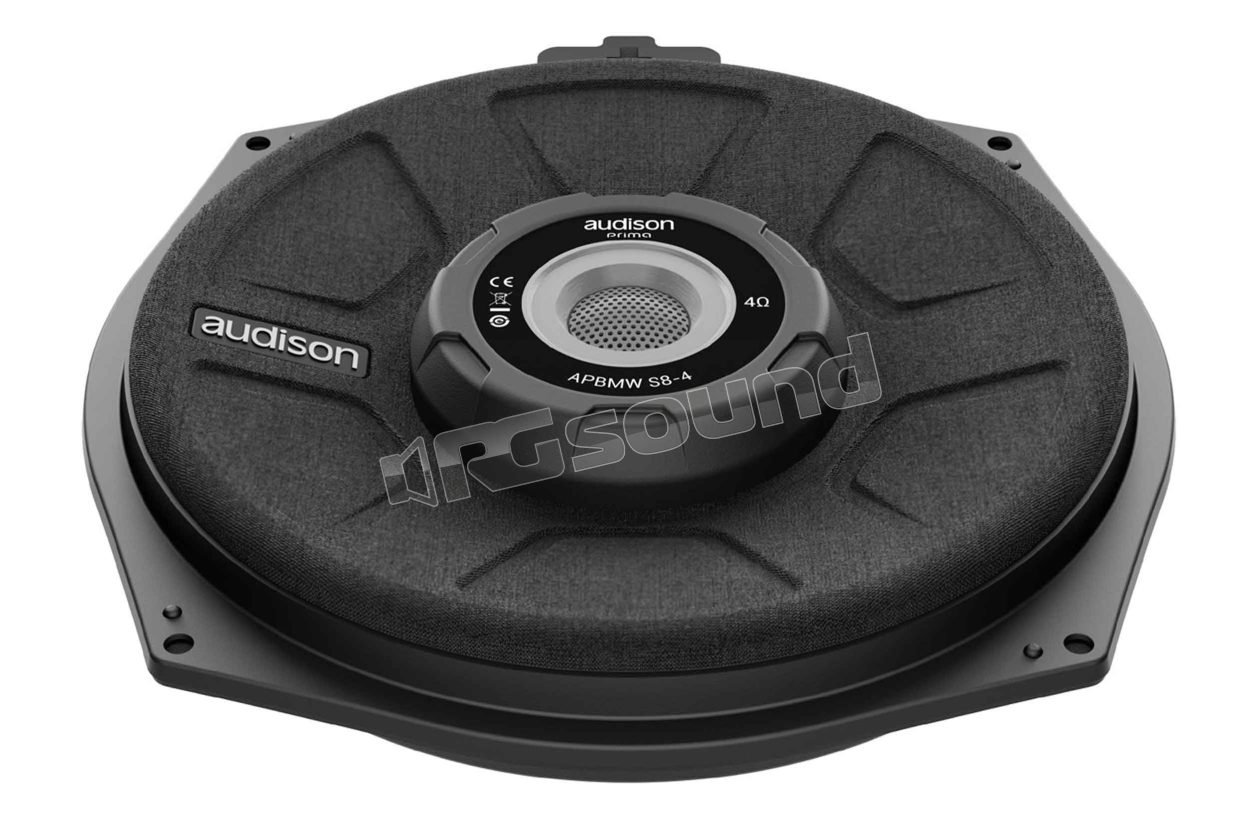

APBMW S8-4 20 cm sub for BMW and Mini

Audison

Discontinued

Your price:
€ 179,00
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
200 mm
MAX Power
300 Watt
RMS Power
150 Watt
Frequency Response
35 - 500 Hertz
Sensitivity
88 dB
Impedance
4 Ohm
Weight
1,21 Kg
Installation Depth
38 mm

Audison APBMW S8-4 subwoofer 200 mm, impedance 4 Ohm, specific for BMW and Mini car models

APBMW S8-4 is a subwoofer designed with electro-acoustic parameters that maximize performance for the factory under-seat enclosure, it has an ABS basket reinforced with fiberglass, and an acoustic structure with front magnet that minimizes installation depth, for perfect compatibility with the available spaces in BMW and Mini vehicles. Two 5 mm polyurethane gaskets, included with the APBMW S8-4, allow the subwoofer to fit perfectly to the enclosure, decoupling it from vibrations.

The 200 mm (8") Audison APBMW S subwoofers are Plug&Play replacements for OEM speakers, maximizing the acoustic load of the series, generating decisive and deep bass frequencies. You can choose between two models: APBMW S8-2 with 2 Ohm impedance and APBMW S8-4 with 4 Ohm impedance, recommended for system composition versatility and connected with the AP8.9 bit, it can be configured in bridge mode delivering 130 W RMS to each APBMW S8-4 installed on board the vehicle.

The 2 Ohm impedance of the APBMW S8-2 sub can be used in a fully active multi-amplified front system, maximizing the power of the AP 8.9 bit at 2 Ohm and using an additional 2 channels for the rear system.

The neodymium magnet that both models have allows for greater power and control compared to a ferrite magnet.

Strengths of the APBMW S8-4 subwoofer

Developed with electro-acoustic parameters customized for BMW vehicles, it increases listening engagement, with powerful and defined bass frequencies, exploiting the acoustic loading offered by the position.

Neodymium magnetic group with inverted acoustic structure with internal cone, to maximize performance while minimizing size and weight.

38 mm coil wound with aluminum support for high power dissipation and stability, even during high excursions.

Two 5 mm thick gaskets included for installation in predisposition.

2 Ohm configuration for maximum efficiency in combination with AP 8.9 in active multi-amplification.

Technical specifications of the APBMW S8-4

Diameter 200 mm (8")
Maximum power 300 W
Rated power 150 W
Impedance 4 Ω
Frequency response 35 ÷ 500 Hz
SPL 88 dB
Magnet dimensions D x d x h 48 x 18 x 7 mm (1.89 x 0.71 x 0.28")
Weight of each subwoofer 1.21 kg (2.67 lb)
Voice coil diameter Ø 50 mm (2")

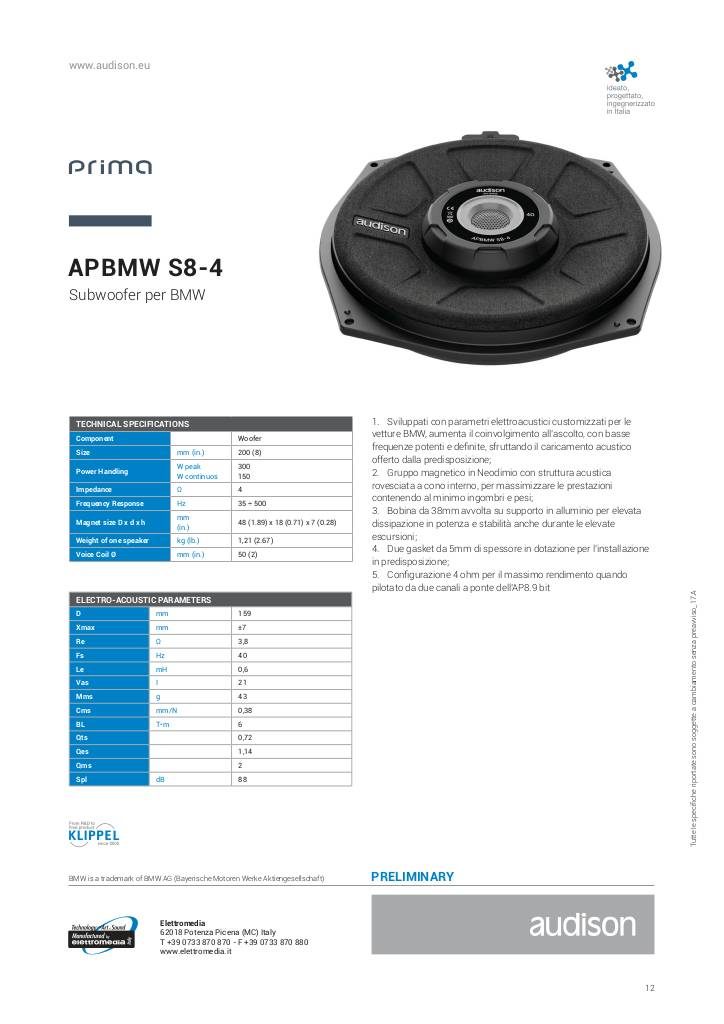

Scheda tecnica

n-20171117150907-apbmw-s8-4.pdf

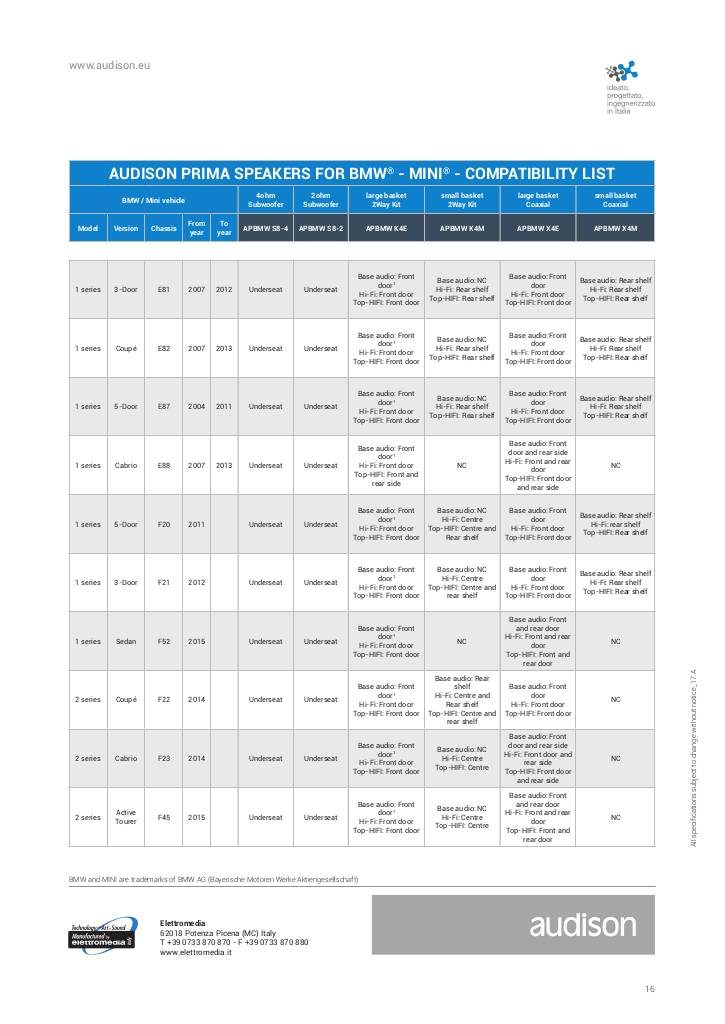

Tabella compatibilità

n-20171128094707-audison-tabella-bmw.pdf
