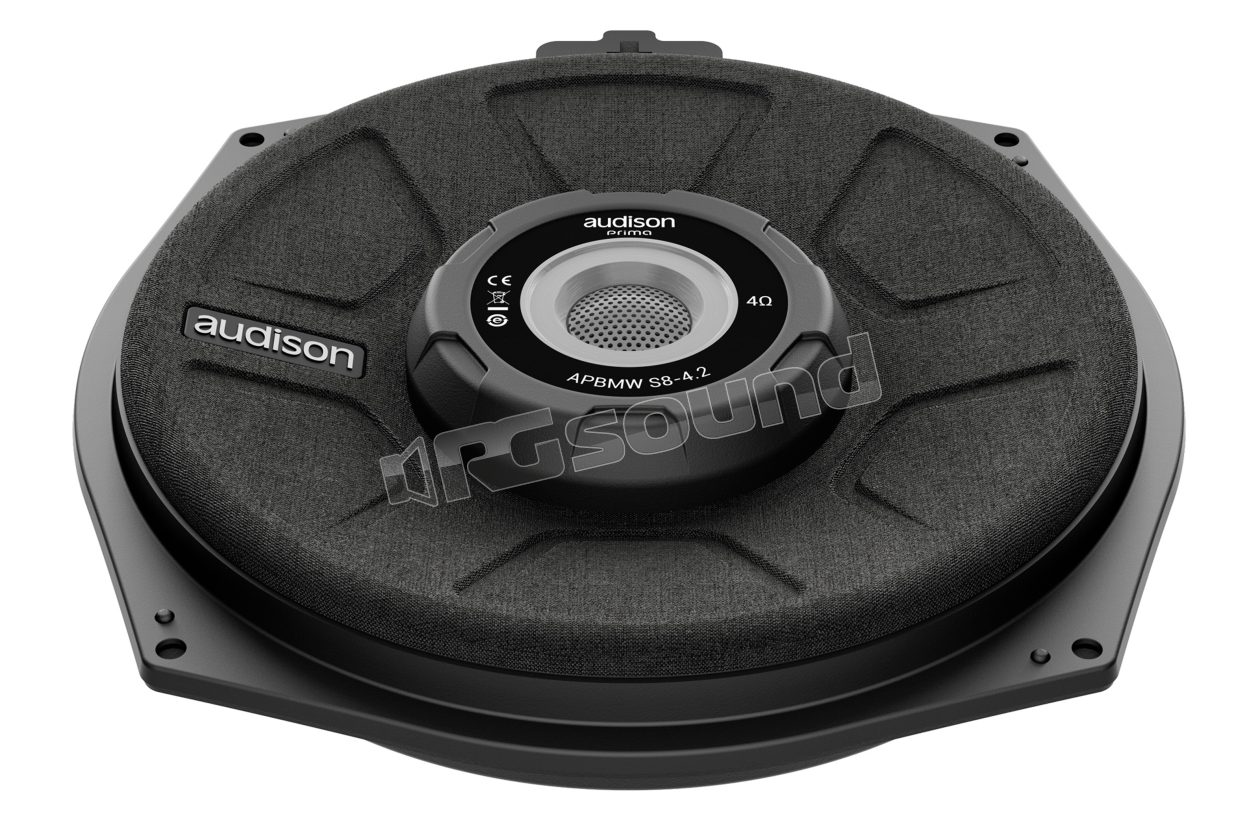

APBMW S8-4.2 20cm under-seat subwoofer for BMW and Mini

Audison
Your price:
€ 179,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
200 mm
MAX Power
300 Watt
RMS Power
150 Watt
Frequency Response
40 - 500 Hertz
Impedance
4 Ohm
Weight
1,2 Kg

Audison APBMW S8-4.2 Subwoofer 20cm under-seat for BMW and Mini

Subwoofer for BMW and MINI, featuring the same flat design and acoustic performance of the previous version, for perfect under-seat adaptation. APBMW S8-4.2 fits all BMW and Mini models already compatible with the previous version. This new version has a further reduced mounting depth for compatibility with BMW G-series models, including the following models: X3G01, X3G08, X5G05, X4G02, X6G06. Audison has engineered an under-seat woofer with a 200 mm flat frame for BMW and MINI. These can be used as replacements for OEM amplification, but best results are achieved when used in a system upgrade that includes Audison Forza bit amplifiers and BMW integration wiring.

Audison R&D used an injection-molded frame with graphite fibers (to increase rigidity) and a neodymium magnet for a smaller size (important with the inverted magnet configuration). The 2"/50 mm voice coil is the largest used in any BMW aftermarket woofer. The inverted magnet design has a top vent in the pole, to extend thermal performance and power handling. The acoustically transparent fabric coating keeps debris away from the speaker cone, preventing sound distortion in the under-seat position. The 4Ω APSBMW S8-4.2 woofer allows more power to be delivered from a single amplifier channel. In many high-performance BMW systems, the under-seat woofer is used on a single set of channels as a midbass driver with intentionally limited sub-bass extension (while a larger subwoofer does its job in the trunk playing the lowest notes).

Please check the Audison Sound Pack Configurator for detailed compatibility information.

APBMW S8-4.2 Features

  • Developed with custom electro-acoustic parameters for BMW-Mini to increase listening engagement, through powerful and sharp low frequencies, taking advantage of the acoustic load provided by the factory enclosure.
  • Neodymium magnetic assembly with inverted acoustic structure equipped with an inner cone, to maximize performance while minimizing size and weight.
  • 38 mm voice coil wound on an aluminum support for remarkable power dissipation and stability even with high excursions.
  • Two 5 mm gaskets have been provided for OEM positioning.
  • 2 ohm configuration for maximum output in combination with the AP 8.9 bit in active multi-amplification.

Audison APBMW S8-4.2 Technical specifications

  • Nominal diameter 200 mm (8")
  • Impedance 4 Ohm
  • Power handling - Peak 300 W
  • Power handling - continuous 150 W
  • Sensitivity 88 dB
  • Frequency response 40-500 Hz
  • Voice coil Ø 50 mm
  • Frame material PLASTIC
  • Magnet material NEODYMIUM
  • Magnet dimensions D x d x h 48x18x7 mm (in.)
  • Voice coil material COPPER
  • Cone material Stamped paper
  • Edge material RUBBER
  • Xmax 7 mm (0.28 inches)
  • Xmech 10 mm (0.39 inches)
  • Speaker displacement volume 1.2 l (0.042 ft)
  • Weight 1.21 kg

Electro-acoustic specifications

  • D 198.6 cm² (30.783 in²)
  • Re 3.8 Ohm
  • Fs 40 Hz
  • Le 0.5 mH
  • Vas 21 l (0.742 ft)
  • Mms 43 g (1.517 oz)
  • Cms 0.41 mm/N
  • BL 6.3 T-m
  • Qts 0.65
  • Qes 0.96
  • Qms 2
  • Reference efficiency 0.13
