8.6K3S 8000 Series high-end 3-way speaker kit

ESB car audio
Your price:
€ 2612,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
3-way separate kit
Woofer Size
165 mm
Midrange Size
75 millimetri
Tweeter Size
28 millimetri
MAX Power
300 Watt
RMS Power
150 Watt
Frequency Response
45 - 25.000 Hertz
Sensitivity
91 dB
Impedance
4 Ohm
Woofer Material
Cellulosa trattata

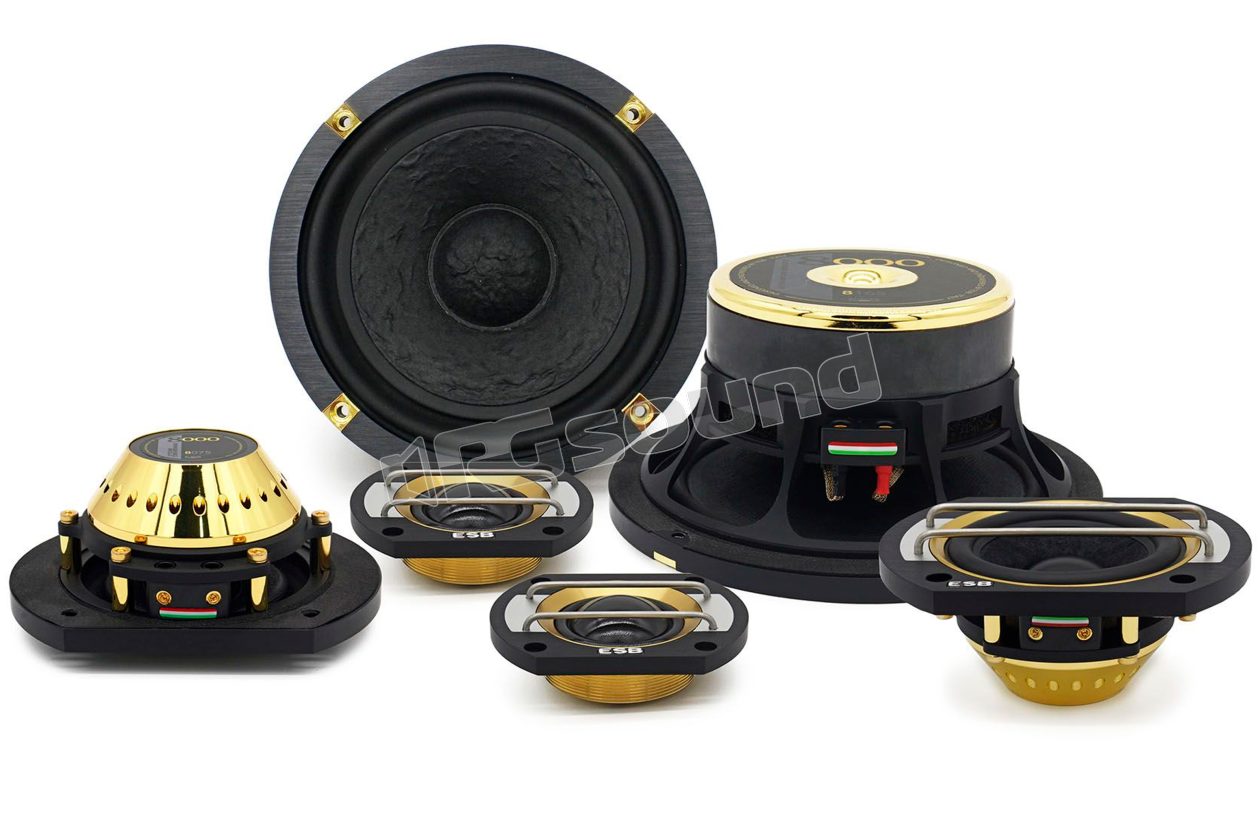

ESB car audio 8.6K3S High-end 3-way speaker system Series 8000 - square tweeter bracket

Three-way kit for superior sound, composed of absolute quality speakers series 8000: 1.1"/28 mm dome tweeter, 3"/75 mm cone midrange and 6.5"/165 mm mid-woofer with uncompressed paper cone. Version with square tweeter bracket. The 8000 series can be considered the direct heir to the 7000 series. The goal was to renew a range of speakers that was already exceptional in itself, with the help of the latest technologies and the use of the best materials available today; always with an eye to installation versatility.

The key to developing this type of in-car system has been to fully exploit their exceptional musicality. In the 8000 series every detail has been carefully cared for, from the choice of materials to the shapes, from the construction and finish of the frames to the ventilation systems of magnets and coils. We improved what we thought was difficult to improve and we strongly believe we have laid the foundation for another decade of success.

ESB car audio 8.6K3 Technical Specifications

Midrange 8.075

  • 3"/75 mm cone midrange
  • 25.5 mm voice coil
  • Copper and aluminum coil
  • Large diameter neodymium magnet
  • NPPVTM exponential cone
  • CNC aluminum frame
  • Rubber suspension
  • Progressive center cap in ConexTM
  • Computer optimized design
  • CNC machined motor metal parts
  • Nominal Impedance: 4 Ohm
  • Nominal Power: 120 Watt
  • Transient Power: 240 Watt
  • Frequency Response: 95 Hz ~ 16 KHz
  • Sensitivity: 91 dB 1W/1m

Tweeter 8.028S

  • 1.1"/28 mm dome tweeter
  • 28 mm aluminum voice coil
  • High quality neodymium magnet
  • Torcon® dome
  • CNC front part
  • Ferrofluid cooling and damping
  • Acoustic resistance control Qts
  • Computer optimized design
  • CNC machined motor metal parts
  • dB Cloth® dome damping material
  • Nominal Impedance: 4 Ohm
  • Nominal Power: 110 Watt
  • Transient Power: 220 Watt
  • Frequency Response: 940 Hz ~ 25 KHz
  • Sensitivity: 91 dB 1W/1m

Mid-woofer 8.165

  • 6.5"/165 mm mid-woofer
  • Uncompressed paper cone
  • 32.4 mm voice coil
  • Copper coil
  • High quality Y35 ferrite magnet
  • NPPVTM exponential cone
  • CNC aluminum frame
  • TWS rubber suspension
  • Progressive center cap in ConexTM
  • Computer optimized design
  • CNC machined motor metal parts
  • Nominal Impedance: 4 Ohm
  • Nominal Power: 160 Watt
  • Transient Power: 320 Watt
  • Frequency Response: 45 Hz ~ 4 KHz
  • Sensitivity: 89 dB 1W/1m
€ 2612,00 Price incl. VAT
