8.6K3 CX High-End 3-way passive crossovers

ESB car audio
Your price:
€ 854,00
Price per pair (VAT included)
Available on backorder
Calculating shipping costs to

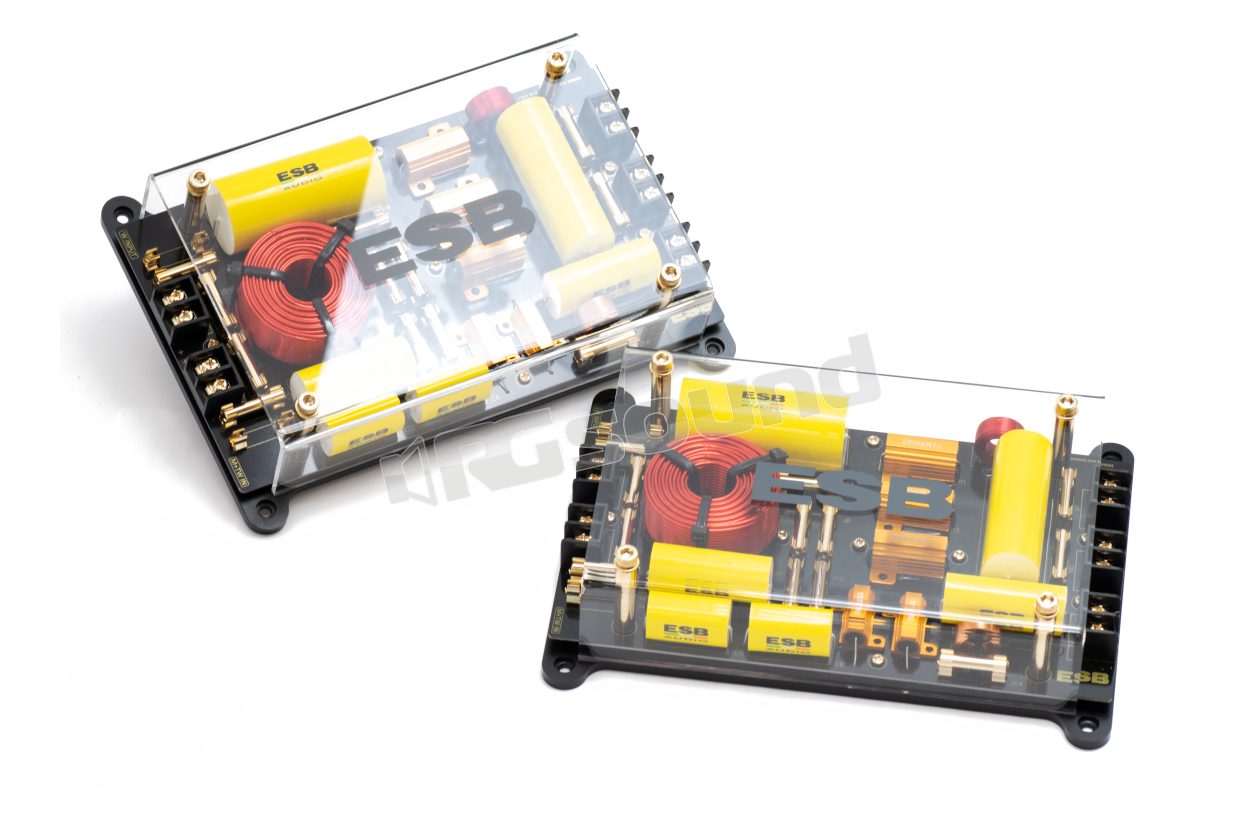

ESB car audio 8.6K3 CX Pair of 3-way passive crossovers for high-end speaker systems.

This crossover was specifically designed for the components of the 8000 Series, in particular the 8.165/LE woofer, the 8075 midrange, the 8028/S tweeter and the 8.003UMA mid-high unit. Multiple amplification connection options. Aluminum structure machined from solid with CNC machines. Transparent acrylic cover to improve ventilation and component protection. Gold-plated spacers and screws. Gold-plated adjustment parameter jumpers with large diameter for zero resistance and extremely high load capacity.

All coils are air-wound to minimize distortion. Large diameter coil wire (1.5 mm) in 99.9% pure copper. Anti-inductive resistors with heat-dissipating aluminum body, help manage very high power levels to remain relatively cool and maintain constant resistance. High-quality bimetallic capacitors for maximum detail transparency in mid and high frequencies. To increase response speed, the tweeter uses a configuration of smaller capacitors in parallel. Compact dimensions with a robust 4-screw mounting system.

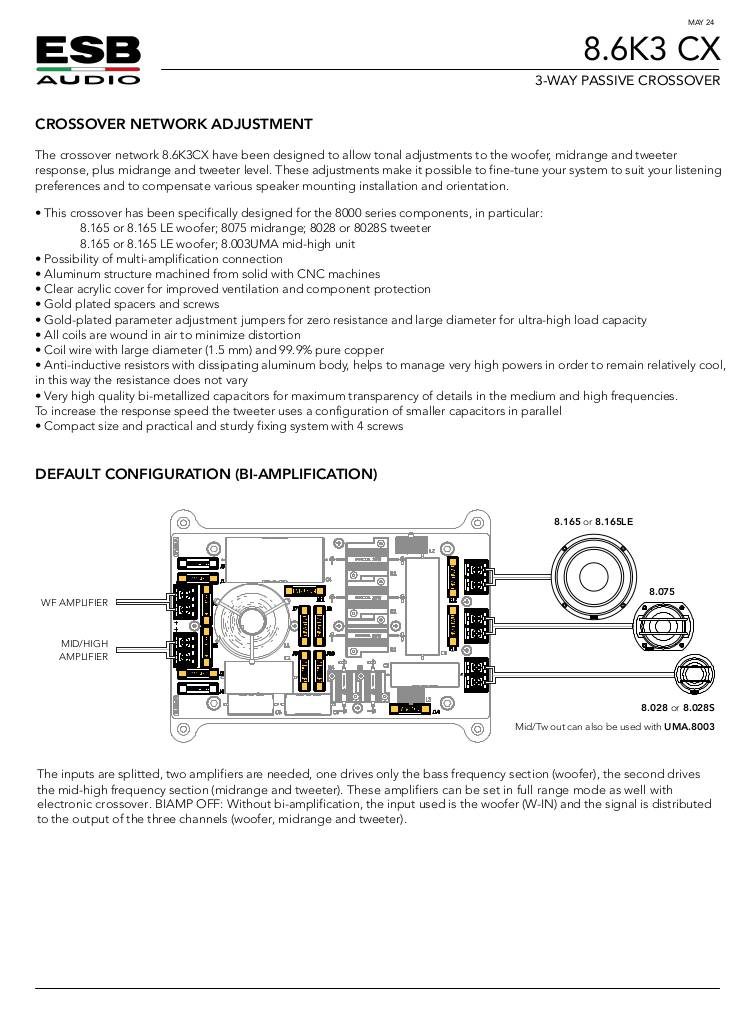

scheda tecnica

n-20250919140701-data-sheet-8-6k3-cx-05-24.pdf

manuale

n-20250919140701-manual-esb8000-quick-installation.pdf

ESB car audio 8.6K3 CX Technical specifications

  • 4 tweeter attenuation levels: 0; -2; -4; -6 dB
  • 4 midrange attenuation levels: 0; -3; -6; -9 dB
  • 3 midrange high-pass frequencies
  • 2 different cut slopes for tweeter and midrange
  • 4 adjustment levels for the woofer/midrange transition zone
  • Multi-amp or single connection
  • CNC aluminum structure
  • Gold-plated spacers and screws
  • 99.9% pure copper coils air-wound
  • Anti-inductive resistors
  • High-quality bimetallic capacitors
€ 854,00 Price incl. VAT
