510d-D2 dual 2 ohm voice coil

DD Audio Digital Designs

Discontinued

Your price:
€ 149,10
Price per single item (VAT included)

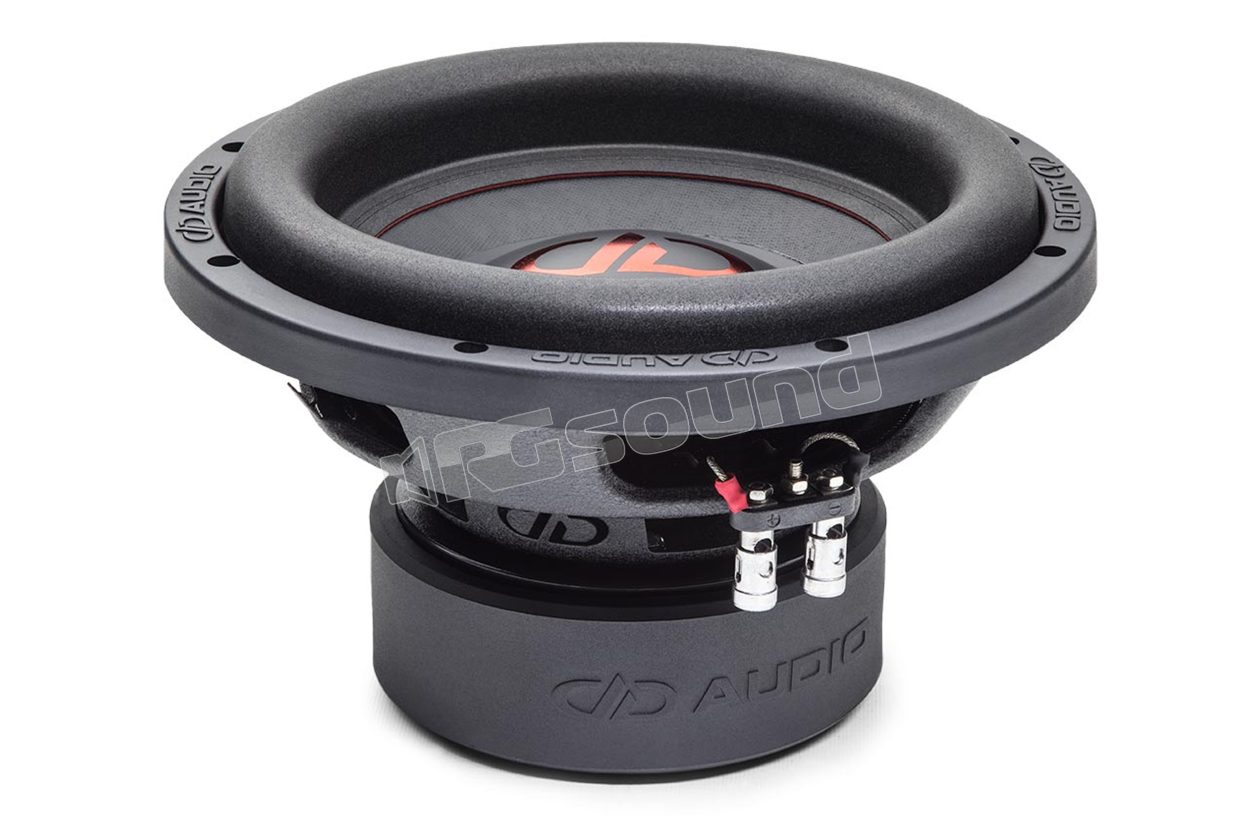

DD Audio DD510d subwoofer 25cm / 10" with dual 2 Ohm voice coil

The 500 series is composed of exceptionally performing subwoofers in their power class. With a highly efficient design, the 500 series can be easily driven to high output levels with just 150-400 Watts. Compared to the 200 series, the 500 series uses a longer voice coil, a more powerful motor and the suspensions are designed to handle higher transitory peaks. These are very versatile subwoofers that work well in sealed enclosures while also providing the additional energy and control needed for vented enclosure applications.

EROM surround
High temperature voice coil, 2.0"
Dual layer Deep Bass, high excursion spider system
Single cone fiberglass and natural pulp
Rear plate pole piece air vent

DD510d Technical Features

Speaker Size (inches): 10
RMS Watts: 150 - 400
Peak Watts: 1200
Impedance: D2
VCD (in): 2
Piston Diameter (inches): 8 1/8
Fa (Hz): 30.28
Qms: 4.321
Qes: 0.4602
Qt: 0.4159
Vas: 27.44
Xmechanical (MM): 64
Xmax (MM): 10
Outer Frame Diameter (inches): 10 1/8
Outer Frame Diameter with Gasket (in): 10 3/8
Mounting Diameter (inches): 9 1/8
Mounting Depth (inches): 5 1/2
Motor Diameter (inches): 5 1/2
Motor Depth (inches): 2
Woofer Displacement (CuFt): 0.07
Sealed Enclosure (CuFt): 0.4 - 0.8
Ported Enclosure (CuFt): 1.25 - 1.5
Shipping Weight (pounds): 15

Discontinued
