510e-D4 dual 4 ohm voice coil

DD Audio Digital Designs
Your price:
€ 170,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to

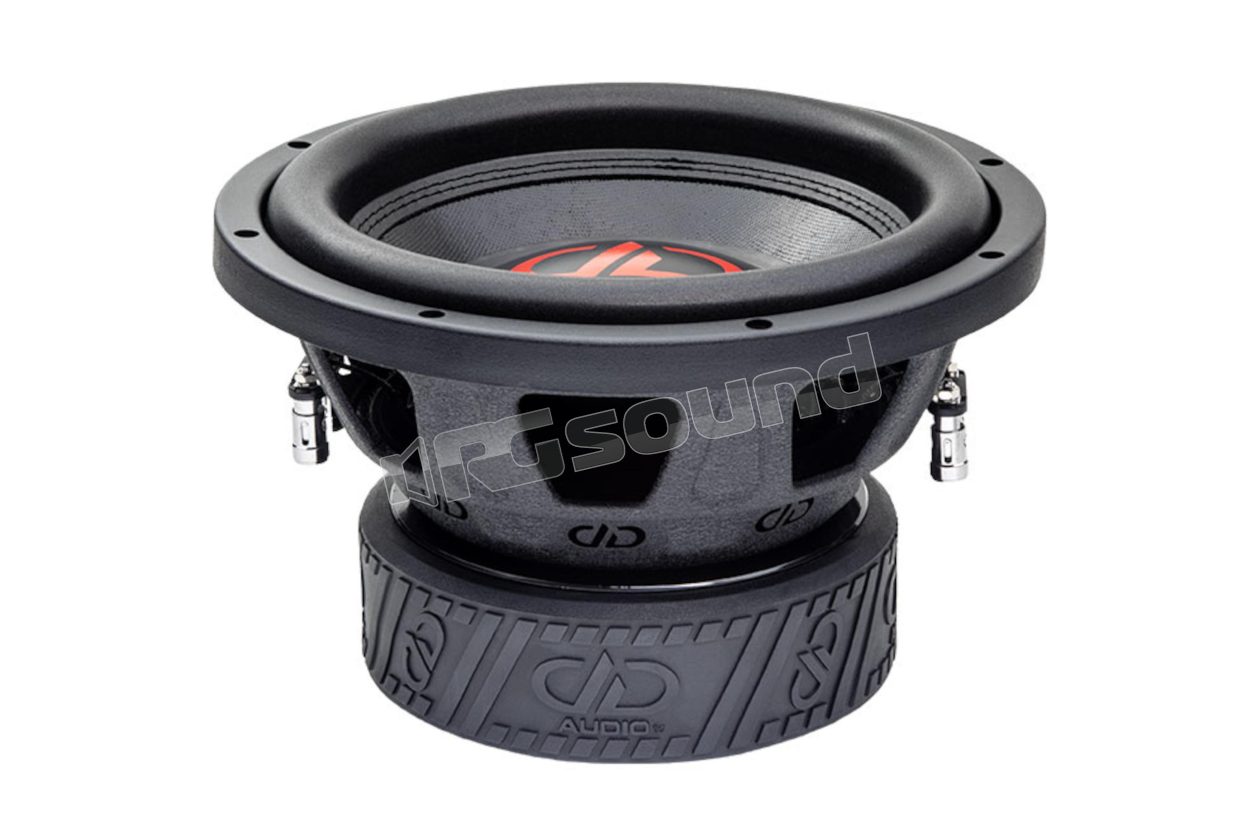

DD Audio DD510e D4 subwoofer 25cm / 10" with dual 4 Ohm voice coil

The brand new "e" revision of the 500 Series features an 8" model equipped with a 2.5" voice coil and 100 ounce magnet, and 10", 12" and 15" models equipped with 3" voice coils with 120 ounce magnet motors. These new drivers are equipped with a 12 mm thicker top plate and longer voice coil windings that result in a 50% increase in Xmax. The rated power increases to 500 Watt on the 508 and to 700 Watt on the 510, 512 and 515 models.

The updates made to this series include untreated pressed paper cones with fiberglass reinforcement, taller and thicker EROM surrounds with black stitching, a heavier dual layer with integrated tinsel conductors and new basket and motor designs that improve the aesthetics with the DD brand.

DD510e D4 Features

  • Free flow cooling system
  • High temperature resistant voice coil
  • Dual layer system with integrated tinsel arms
  • Extended pole
  • Basket with DD logo
  • EROM surrounds with double stitching
  • Unpressed cones reinforced with fiberglass
  • Magnet cover with embossed DDesign logo

DD Audio DD510e D4 Technical Specifications

  • Speaker size (inches) 10
  • RMS Power 700
  • Peak Power 2100
  • VCD (inches) 3
  • Voice coil impedance D2 / D4
  • Piston diameter (inches) 8
  • Fs (Hz) 38
  • Qms 4.96
  • Qes 0.76
  • Qts 0.65
  • BL (TM) 25
  • Vas (Ltr) 37.1
  • Xmech (MM) 30
  • Xmax (MM) 18
  • External frame diameter (inches) 10
  • External frame diameter with gasket (inches) 10.4
  • Mounting diameter (inches) 8.93
  • Mounting depth (inches) 6
  • Motor diameter (inches) 7
  • Motor depth (inches) 2.5
  • Magnet weight (ounces) 120
  • Displacement (cubic feet) 0.07
  • Enclosure with port (cubic feet) 1.25 - 1.5
  • Weight (pounds) 18
€ 170,00 Price incl. VAT
