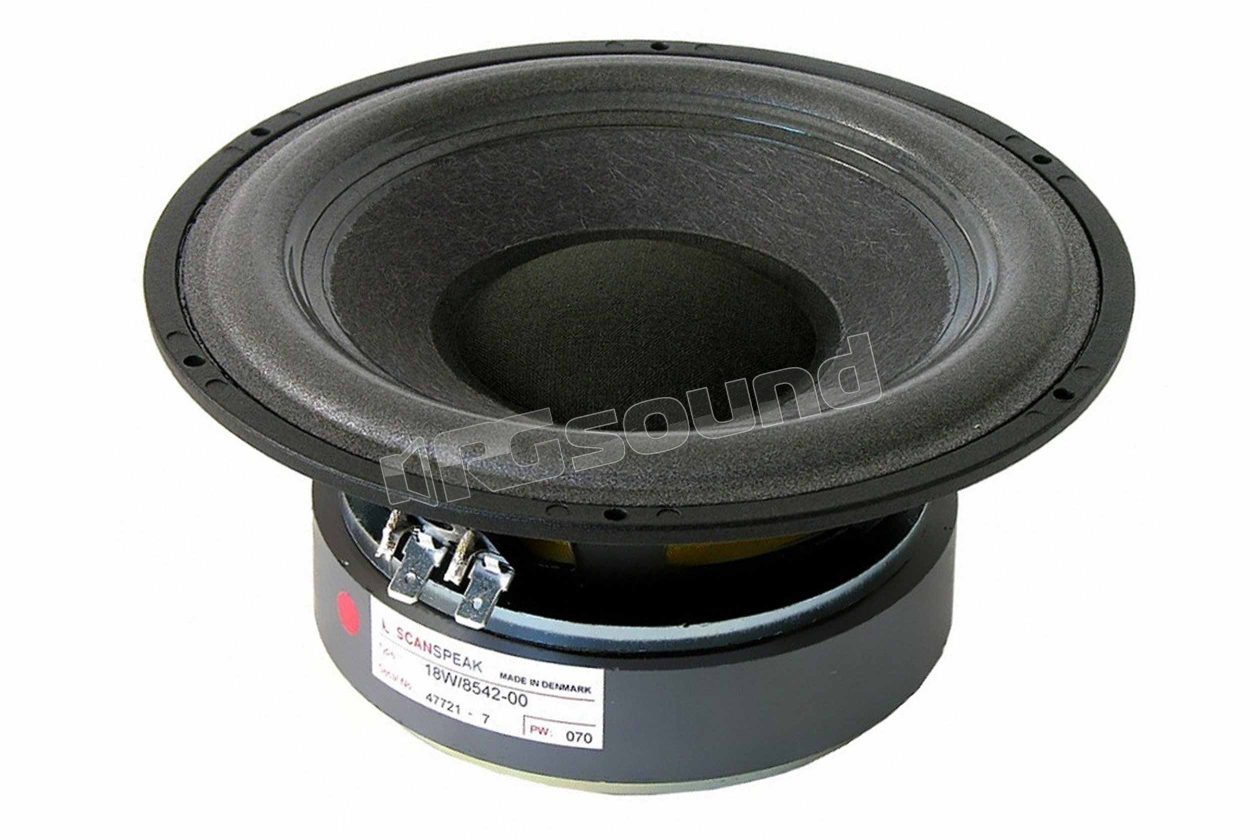

18W/8542-00 Symmetric Drive 16.5 cm midwoofer pair

Scan Speak

Discontinued

Your price:
€ 390,00
Price per pair (VAT included)
Type
Woofer and midwoofer
Speaker Size
165 mm
MAX Power
130 Watt
RMS Power
70 Watt
Sensitivity
89 dB
Impedance
8 Ohm
Weight
2,1 Kg
Installation Depth
74,5 mm
Voice Coil Diameter
42 mm

Scan Speak 18W/8542-00 pair of midwoofers 16.5 cm, impedance 8 Ohm

The Symmetric Drive (SD) concept with the addition of copper in the magnetic system is exclusive to Scan-Speak. The design of the high-quality magnet system was therefore a fundamental feature of the Scan-Speak project. The woofers are particularly praised and are used in some of the most exceptional high-end speaker systems in the world.

Main featuresScan Speak 18W/8542-00

- 18 cm Midwoofer
- 8 ohm, Nylonfiber Paper Cone
- Patented Symmetrical Drive Motor Design
- Air Dried Paper/Nylon Fibre Cone
- 42mm Voice Coil
- Low-Loss linear suspension
- Low Damping Coated Foam Surround

Technical specifications Scan Speak 18W/8542-00

- Size (inches) 6.5
- Fs (Hz) 30
- Re (ohms) 5.5
- RMS power 70 W
- Max power 130 W
- Impedance 8 Ohm
- Sensitivity (dB) 89
- Qt 0.23
- VAS (ltr) 47.9
- Xmax ± (mm) 6.5

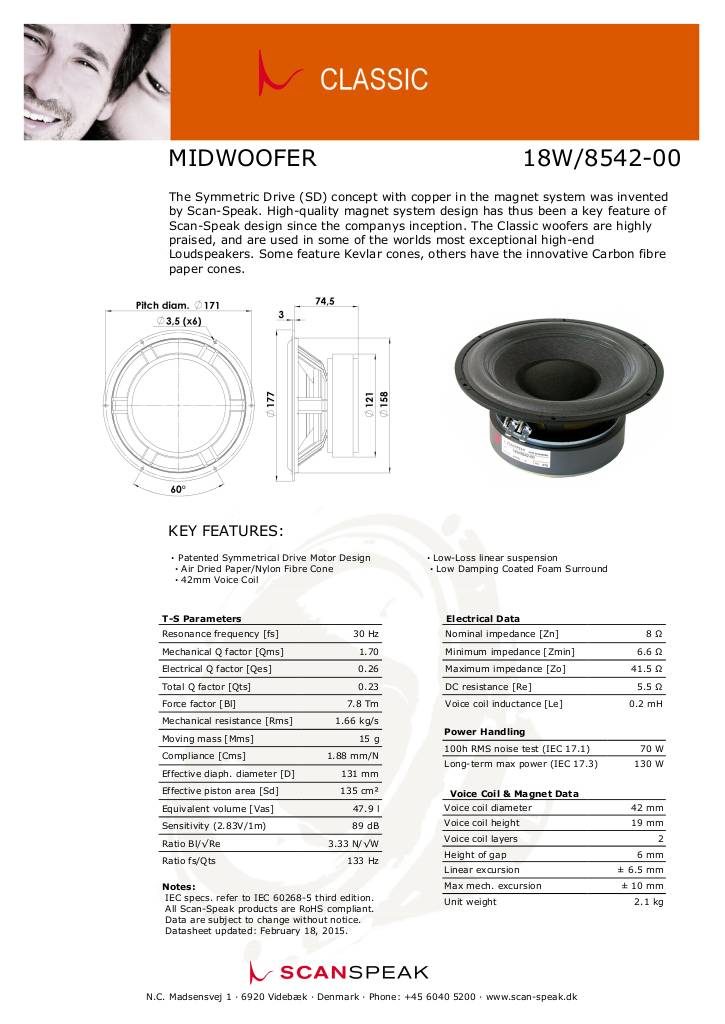

Scheda tecnica

n-20170721171247-18w-8542-00.pdf
Discontinued
