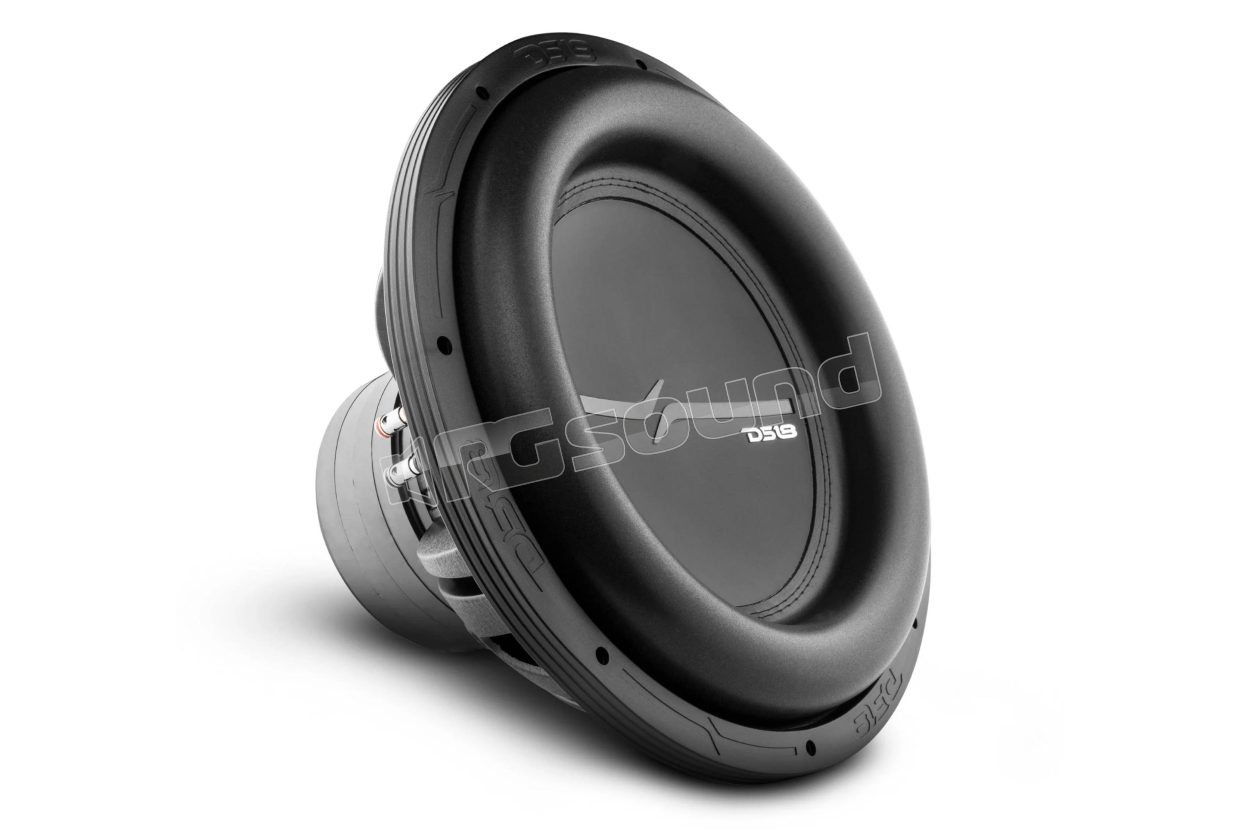

ZXI15.2D 15” High-Excursion Subwoofer 1000 Watt Rms DVC 2-Ohm

DS18

Coming soon

Your price:
€ 326,00
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
380 mm
MAX Power
2000 Watt
RMS Power
1000 Watt
Frequency Response
15 - 900 Hertz
Sensitivity
89 dB
Impedance
2 + 2 Ohm
Weight
17,6 Kg
Installation Depth
221 mm
Woofer Material
Cellulosa trattata

DS18 ZXI15.2D 15" High Excursion Subwoofer with Stacked Magnets

This subwoofer is capable of handling power up to 2000 W and delivering smooth responses at ultra-low frequencies. The lower than normal resonance frequency (FS) allows the ZXI15.2D to excel in larger enclosures with lower tuning. Whether you prefer sealed or ported enclosures, the ZXI15.2D excels in both, giving you the flexibility to optimize placement in any vehicle.

The dual 2 ohm configuration and 3 inch voice coils make the ZXI15.2D a force to be reckoned with. It handles an incredible 1000W RMS power and 2000W MAX power, ensuring you get the maximum potential from your system. The wide foam surround and uncompressed paper cone work in perfect harmony, delivering crisp and uniform bass that permeates every corner of the vehicle. The ZXI15.2D goes beyond power and precision.

It features a sturdy stamped basket, adorned with quality DS18 logos on the frame, magnet cap, magnet, and dust cover. The ZXI15.2D's stacked quad magnets offer a multitude of advantages, including increased magnetic field strength, better power handling, improved cone control, increased excursion capacity, greater durability, and superior heat dissipation.

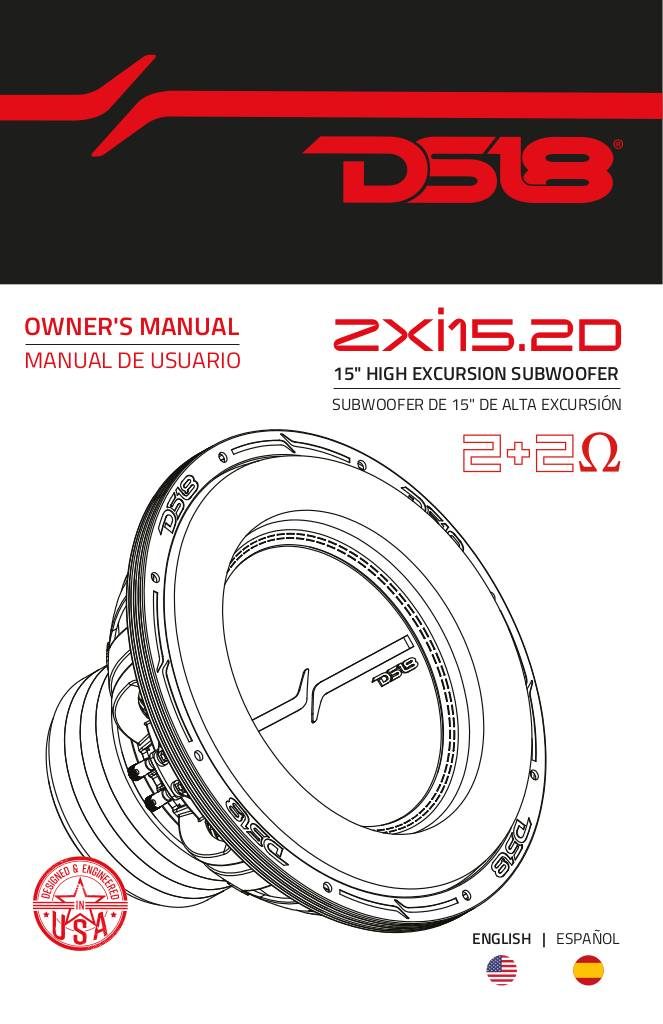

Scheda Tecnica

n-20241017113432-zxi15-2d-scheda-tecnica.pdf

DS18 ZXI15.2D Technical Specifications

  • Nominal diameter 15" / 381 mm
  • Nominal impedance 2 + 2 ohm
  • RMS power handling 1000W
  • Maximum power handling 2000W
  • Sensitivity (1w/1m) 89dB
  • Frequency response 15-900Hz
  • Recommended high pass crossover 90Hz
  • Voice coil diameter 3" / 76.2 mm
  • Voice coil material Black aluminum
  • Winding material CCAW
  • Cone material Uncompressed paper
  • Dust cover material PPI
  • Surround material Foam
  • Basket material Aluminum
  • Basket color/finish Black sand blasted
  • Magnet material Ferrite
  • Magnet weight 232 oz (4 x 58 oz)
  • Displacement volume 5.82L / 0.2ft3
  • Overall diameter 15.65" / 397.5 mm
  • Overall depth 10.51" / 267 mm
  • Baffle cutout for front mounting 13.96" / 354.7 mm
  • Mounting depth 8.72" / 221.5 mm
  • Motor diameter 7.48" / 190 mm
  • Gross weight of single unit 39
  • Dimensions W x W x H 17.5 x 17.5 x 13
  • Quantity of units in master carton 1
  • Gross weight of master carton 39
  • Dimensions of master carton W x W x H 17.5 x 17.5 x 13
