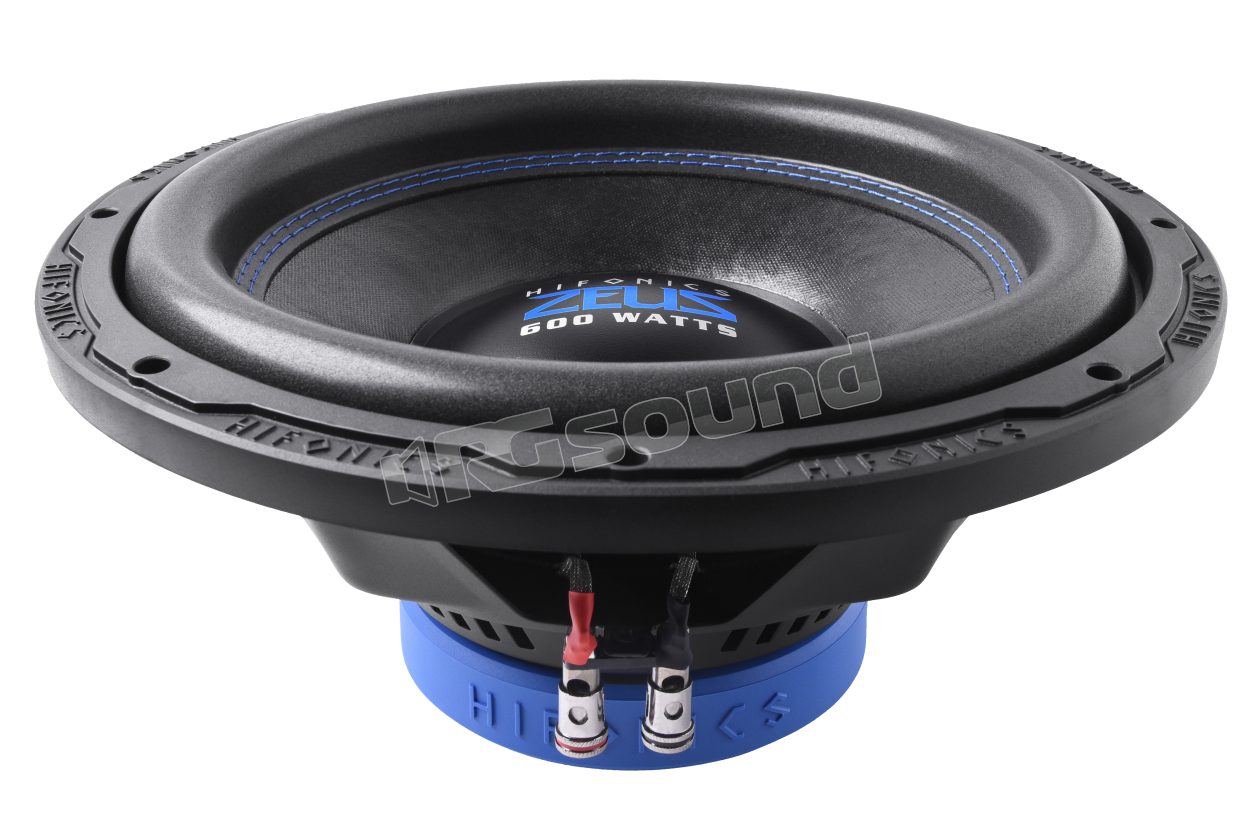

ZXE12S4 30cm subwoofer with non-pressed paper cone, max power 600 Watt

Hifonics
Your price:
€ 89,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
300 mm
MAX Power
600 Watt
RMS Power
300 Watt
Sensitivity
89 dB
Impedance
4 Ohm
Weight
5,6 Kg
Installation Depth
135 mm
Woofer Material
Carta non pressata

HIFONICS ZXE12S4 passive car subwoofer 600 Watt, 4 Ohm impedance

At the heart of HiFonics ZEUS EVOLUTION woofers work powerful Y35 magnet drivers with a diameter of 140 mm, which drive large 64 mm voice coils. The latter are ventilated with air intakes for the pole core that are thermally ideal. Furthermore, the so-called "bumped" T-plates guarantee an even longer stroke, which reaches up to +/- 17 mm (X-Max).

While pressed paper cones are usually used in budget woofers, ZXE woofers rely on expensive hand-made paper cones and double-stitched with the edges, known for their excellent sound. All these ingredients give ZXE subwoofers an extremely good efficiency level, equal to 92 or 90 dB at 2.83 volts/1m. Even with a small power amplifier, these subwoofers already generate high volumes. The Thiele-Small parameters are designed so that ZXE woofers can be used to build powerful vented enclosures with decent depth and also medium-sized sealed cabinets. Free air applications are also possible.

From an aesthetic point of view, the Zeus bass does justice to the HF style: a newly designed gasket, the blue magnet coating typical of HiFonics and the blue stitching of the cone surround proudly display the HiFonics brand badges.

Scheda tecnica

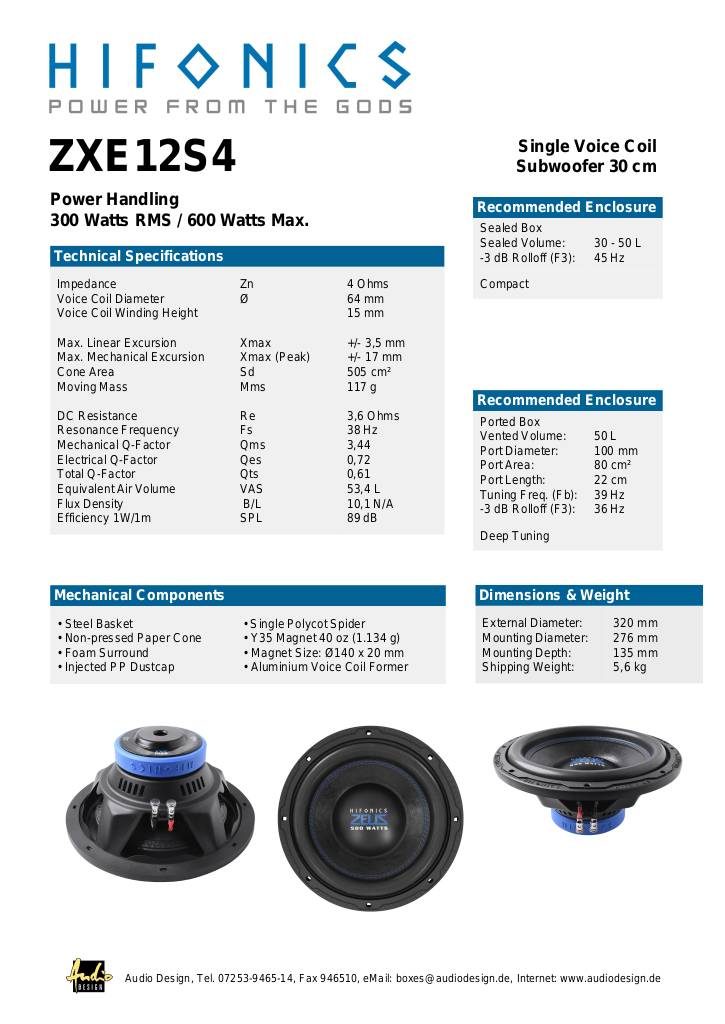

n-20230918175815-zxe12s4.pdf

Hifonics ZXE12S4 technical specifications

Passive car subwoofer

Maximum power 600 W

RMS capacity 300 W

Sound pressure 89 dB

Mounting hole 276 mm

Assembly depth 135 mm

Impedance 4 Ohm

Weight 1.14 kg

€ 89,00 Price incl. VAT
